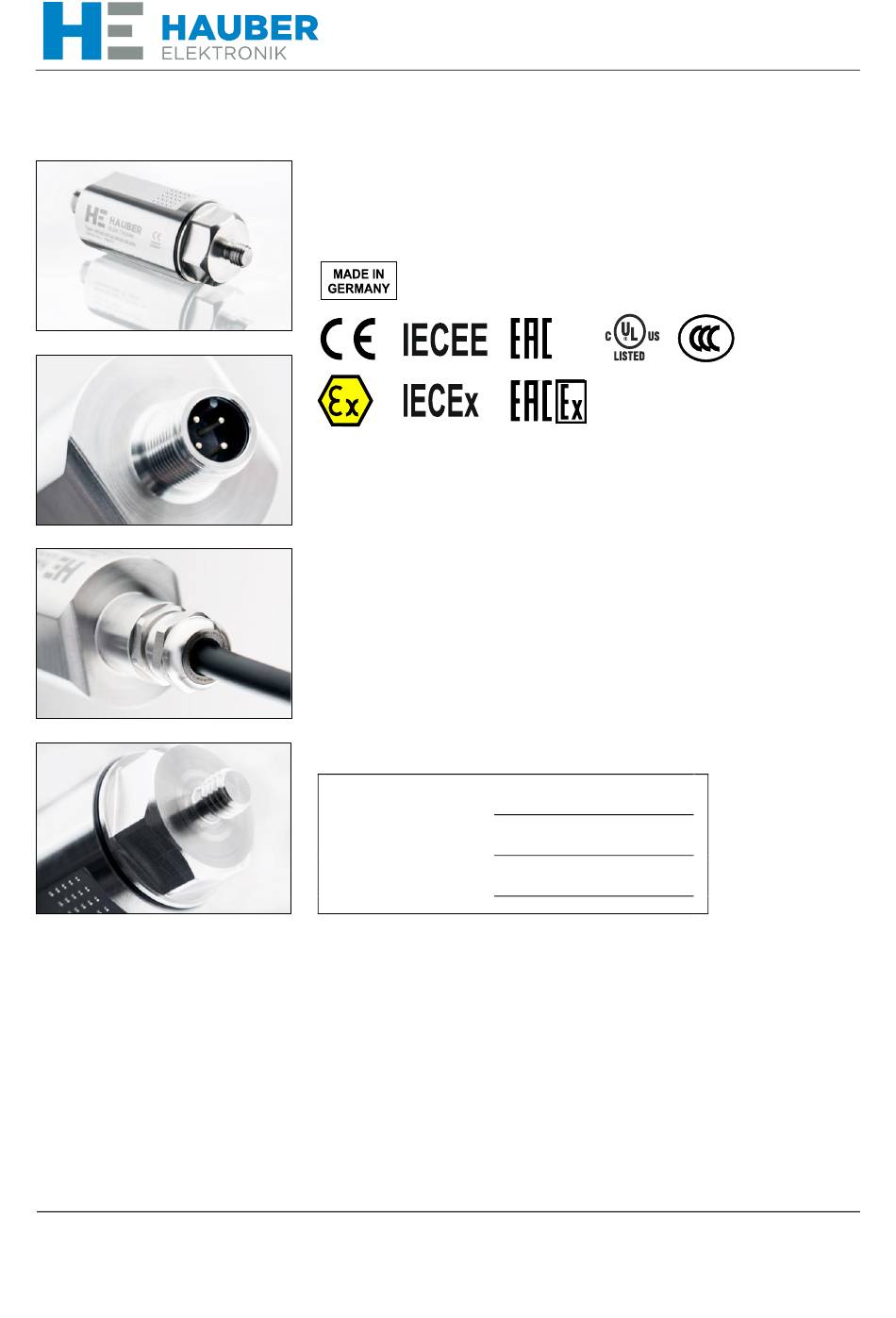

Vibration monitoring unit
HE100 series
•
Vibration velocity (mm/s, rms)
•
ATEX / IECEx / EACEx Zone 1 / 2 / 21 / 22
•
Analogue current output: 4–20 mA
•
Frequency ranges: 10 Hz–1,000 Hz
Manufacturing date:
Type designation:
Serial number:
Proc. Cont. Eq.
for Ord. Loc.
Proc. Cont. Eq.
for Haz. Loc.
1 Hz–1,000 Hz
Doc ID: M001-HE100 Stand: 2021-06-14
Betriebsanleitung
englisch
Advertisement
Table of Contents
Related Manuals for Hauber HE100 Series
Summary of Contents for Hauber HE100 Series
- Page 1 Vibration monitoring unit HE100 series Proc. Cont. Eq. for Ord. Loc. Proc. Cont. Eq. for Haz. Loc. • Vibration velocity (mm/s, rms) • ATEX / IECEx / EACEx Zone 1 / 2 / 21 / 22 • Analogue current output: 4–20 mA •...
- Page 2 HAUBER-Elektronik GmbH Operating instructions Vibration Monitoring Unit Type HE100 Standard and ATEX / IECEx / EACEx HE100 Version: 2021-06-14 Attention! Prior to commissioning the product, the instruction manual must be read and un- derstood. All rights reserved, including rights to translation.
-
Page 3: Table Of Contents
HAUBER-Elektronik GmbH Contents Contents ..............................3 Safety information ............................ 4 Scope of this instruction manual ......................4 Vibration monitoring unit type HE100 ...................... 5 Intended use ............................5 Scope of supply ............................5 Documents and Certificates ........................5 Transfer of liability when operating in potentially explosive atmospheres ..........5 Application areas and type plate examples ..................... -
Page 4: Safety Information
HAUBER-Elektronik GmbH Safety information General The safety instructions are intended to protect people and property from damage and hazards that could arise as the result of improper use, incorrect operation or other misuse or devices, especially in explosive areas. Therefore, please read the operating instructions carefully before working on the product or operating it. -
Page 5: Vibration Monitoring Unit Type He100

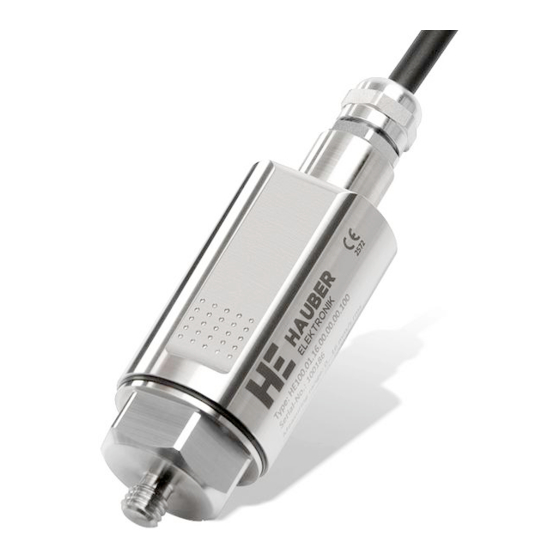

HAUBER-Elektronik GmbH Vibration monitoring unit type HE100 The HE100-type vibration monitoring unit is used to measure and monitor absolute bearing vi- brations in machines in line with DIN ISO 10816. It has the following features: • Operating principle: The two-wire system. -
Page 6: Application Areas And Type Plate Examples
II 2D Ex tb IIIC T120 °C Db IECEx PTZ IECEx PTZ Ord. Loc. 18.0009 X Rev 2 18.0009 X Rev 2 Manufacturer: HAUBER-Elektronik GmbH Manufacturer: HAUBER-Elektronik GmbH Manufacturer: HAUBER-Elektronik GmbH Manufacturer: HAUBER-Elektronik GmbH Fabrikstraße 6 · 72622 Nürtingen GERMANY Fabrikstraße 6 · 72622 Nürtingen GERMANY Fabrikstraße 6 ·... -
Page 7: General Conditions For Safe Operation
HAUBER-Elektronik GmbH General Conditions for Safe Operation The following conditions must be met for safe operation in potentially explosive atmospheres. HE100.01 (protection ‘pressure resistant housing’) 10.1 Electrical data typ. max. Supply voltage 10 V DC 24 V DC 30 V DC... - Page 8 9260/13-11-10s art. no. 261384 The Ex i version must only be operated with the Ex i cable approved by Hauber-El- ektronik. On this cable, pin 5 of the M12 connector is assigned to the cable shield. (HE...
-
Page 9: Technical Data
HAUBER-Elektronik GmbH Technical data 11.1 General data Each sensor has one of the measuring and frequency ranges listed. Additional ranges upon request. Please specify the measuring and frequency range in your query. Measuring range: 0–8 mm/s (only for frequency range > 10 Hz) 0–16 mm/s... -
Page 10: Permitted Operating Temperature Ranges
HAUBER-Elektronik GmbH 11.3 Permitted operating temperature ranges Version Ambient temperature Measuring head temperature (in the fixing area) Standard -40°C to +60°C -40 °C to +125°C ATEX / IECEx / EACEx -40 °C to +60 °C -40 °C to +125°C Pressure-resistant casing, Ex d... -
Page 11: Operating Range Of The Vibration Monitoring Unit
HAUBER-Elektronik GmbH 11.4 Operating range of the vibration monitoring unit The operating range is independent of the measuring range. It is deduced from the maximum acceleration, which is 16.5 g across all frequencies. The maximum measurable vibration ve- locity is determined by the formula ��... -
Page 12: Typical Frequency Response
HAUBER-Elektronik GmbH 11.5 Typical frequency response 10 Hz–1,000 Hz (standard) The frequency response is recorded using a reference sensor. • 4 Hz. . . 1200 Hz acceleration sensor Fig. 2: Typical frequency response 10 Hz–1000 Hz Frequency in Hz Amplification in dB 1 Hz–1000 Hz... -
Page 13: Mechanical Data
HAUBER-Elektronik GmbH 11.6 Mechanical data Additional materials and fixings can be found in section "HE100 type code" on page 21. Housing material: Stainless steel V2A, material no.: 1.4305 (standard) Fixing: Width A/F 24 (hex) M8 x 8 mm Incline: 1.25 mm (standard) - Page 14 HAUBER-Elektronik GmbH 11.7.2 Version: ATEX / IECEx / EACEx Ex d Fig. 5: Housing with integrated cable All dimensions in mm Cable gland for integrated cable Width A/F 24 Fixing Measuring direction along the fixing axis...
-
Page 15: Connections
HAUBER-Elektronik GmbH Connections Version: Standard Plug, M12, 4-pole 10…30 V DC Pin 1: Pin 2: 4…20 mA Pin 3: Pin 4: Not Connected Version: ATEX / IECEx / EACEx pressure-resistant casing Ex d ATEX / IECEx / EACEx protection through housing, Ex tb integrated cable 10…30 V DC... -
Page 16: Assembly And Disassembly
HAUBER-Elektronik GmbH Assembly and disassembly 13.1 General notes Assembly and disassembly work on and with the vibration monitoring unit may only be perfor- med by an authorised specialist familiar with the safety regulations governing handling electrical components. The housing of the vibration monitoring unit must be earthed via the fixing –... -
Page 17: Installation And Commissioning
HAUBER-Elektronik GmbH Installation and commissioning 14.1 General notes Installation and commissioning the vibration monitoring unit must be performed by an authorised specialist who is familiar with the safety regulations when handling electrical components. Protect the connection cable and any extension cables from electrical interfe- rence or mechanical damage. - Page 18 Brown – 10–30 V DC Cable shield Evaluation unit earth potential EMC adapter (Hauber art. no. 10473) Please advise us if you are opting for the alternative earthing concept when enquiring. We will offer you the relevant sensor cable and the EMC adapter.
-
Page 19: Maintenance And Repair
HAUBER-Elektronik GmbH Machine earth Power supply The shield of the Ex i cable is on the po- Hauber Ex i sensor tential of the housing via Pin 5 of M12 Isolating amplifier connector Potentially explosive atmospheres of Do not earth the shield... -
Page 20: Transport, Storage And Disposal
HAUBER-Elektronik GmbH Transport, storage and disposal The sensor must be protected from damaging environmental factors and mechanical damage during transport with the use of adequate packing. The sensor may not be stored in ambient temperatures outside the permitted operating tempe- rature. -
Page 21: He100 Type Code
HAUBER-Elektronik GmbH HE100 type code HE100. 00. 16. 01. 00. 00. 000 HE series 100 = transmitter 4–20 mA ~ mm/s rms ATEX / IECEx / EACEx 00 = No ATEX / IECEx / EACEx 01 = ATEX / IECEx / EACEx Ex d and Ex tb (zones 1 / 2 / 21 / 22) 02 = ATEX / IECEx / EACEx Ex ib (zones 1 / 2 / 21 / 22) 03 = UL Proc. -
Page 22: Eu-Declaration Of Conformity
HAUBER-Elektronik GmbH EU-Declaration of conformity Declaration of conformity Directives and Standards HAUBER-Elektronik GmbH EU-Directives Standards Fabrikstraße 6 2014/30/EU EN 61000-6-2:2005 D-72622 Nürtingen-Zizishausen EN 61000-6-3:2007 + hereby declare, bearing sole responsibility, A1:2011 that the products listed below to which this declaration refers, the essential health and...
