Page 1

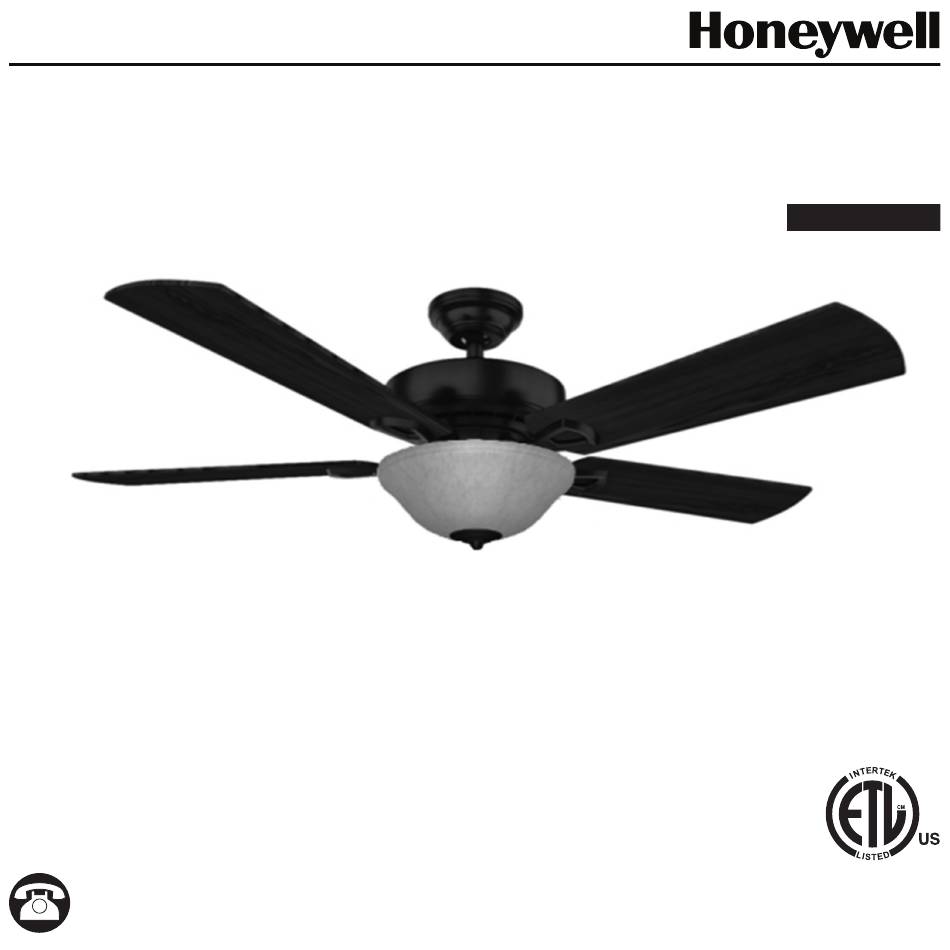

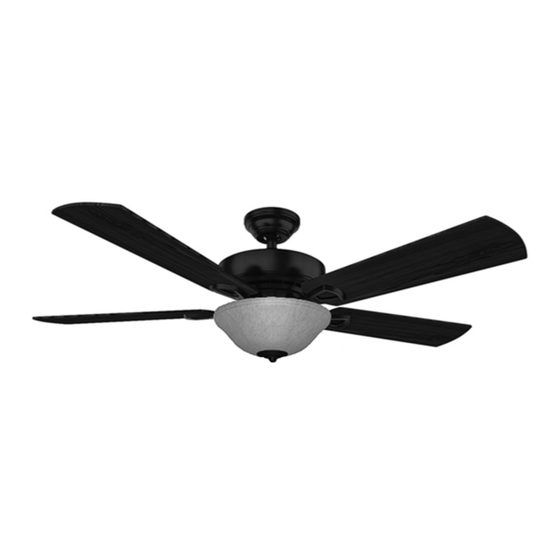

WOODCREST 44” CEILING FAN MODEL #50187 Español p. 21 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST.
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Blade (5) 2. Canopy 3. Mounting Bracket 4. Canopy Cover 5. Downrod 6. Blade Arm (5) 7. Yoke Cover 8. Motor Housing 9. Light Kit 10.
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199.
MOUNTING OPTIONS DANGER Fig. 1 Turn off the circuit breakers and the wall switch to the fan supply line leads. Failure to disconnect the power supply prior to installation may result in serious injury or death. 1. Your fan has 3 mounting options: •...
MOUNTING BRACKET INSTALLATION 4. Loosen all four mounting bracket screws. Remove Fig. 4 the two mounting bracket screws and washers from the round holes of canopy. Set aside for later use. Mounting Mounting Bracket Detach mounting bracket from canopy (Fig. 4). Bracket Screws Washer...
STANDARD OR ANGLE MOUNTING INSTRUCTIONS 6. Partially loosen the two set screws in the yoke at Fig. 6 the top of the motor housing (Fig. 6). Set Screws 7. Remove the downrod pin and downrod clip from Fig. 7 the downrod (Fig. 7). Downrod Clip Downrod Pin...
Page 8
STANDARD OR ANGLE MOUNTING INSTRUCTIONS 9. Slide the downrod into the yoke of the motor Fig. 9 Downrod housing, align the holes, and re-install the downrod pin and downrod clip. Then re-tighten the set Downrod screws (Fig. 9). Downrod Clip Downrod Pin Set Screw Downrod Clip...
Page 9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS 12. Install the ball end of the downrod into the Fig. 12 mounting bracket opening. Align the slot in the ball with the tab in the mounting bracket. The rod should not rotate if installed correctly (Fig. 12). Slot Mounting Bracket...
CLOSEMOUNT INSTRUCTIONS 13. Remove the canopy cover from the bottom of the Fig. 13 canopy (Fig. 13). Helpful Hint: The downrod, hanging ball, and canopy cover are not used in this type of installation. Canopy Cover Canopy 14. Align the canopy with the closemount screw holes Closemount Fig.
WIRING Fig. 16 CAUTION Be sure outlet box is properly grounded or that a ground (green or bare) wire is present. Black (live) WARNING White (neutral) If house wires are different colors than referred to in Bare/Green (ground) the following step, stop immediately. A professional electrician is recommended to determine wiring.
CANOPY INSTALLATION 18. Lift the canopy up so the partially installed mounting Fig. 18 bracket screws are situated in the L-slots on each side of the canopy. Rotate the canopy clockwise and install the remaining mounting bracket screws and washers from Step 4 (Fig. 18). Mounting Bracket Mounting...
BLADE INSTALLATION 19. Remove motor screws from underside of motor and Fig. 19 save for blade arm attachment. Discard the plastic motor blocks but keep the motor screws (Fig. 19). Motor Block Motor Screw Motor Block Motor Screw 20. The blades attach to blade arms using the Fast Fig.
LIGHT KIT INSTALLATION 22. (Optional) To install the fan without a light kit: Fig. 22A Disconnect the single-pin connectors inside the switch housing cap labeled “for light kit connection” -- black from black and white from white. Then, unscrew the nut located inside the switch housing cap from the threaded rod in the Switch Housing...
LIGHT KIT INSTALLATION 24. Align holes in the switch housing cap with holes Fig. 24 in upper switch housing. Re-insert screws and washers that were previously removed. Use a Phillips screwdriver (not included) to secure all screws (Fig. 24). Switch Housing Washer Screw...
LIGHT KIT INSTALLATION 27. Feed pull chain through the center hole in the Fig. 27 glass globe, rubber washer and nut. Lift the glass globe and rubber washer over the threaded rod. Screw the nut onto the threaded rod to temporarily hold the glass globe in place.
OPERATING INSTRUCTIONS 29. Use the fan reverse switch, located on the side Fig. 29 of the light kit, to optimize your fan for seasonal performance (Fig. 29). Using a ceiling fan will allow you to raise your thermostat in the summer and lower your thermostat in the winter without sacrificing comfort.
REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. MODEL PIECE DESCRIPTION 50187 PART# Blade Arm 50187-A Blade 50187-B Glass Globe 50187-C Loose parts bags containing (not shown): Mounting...
TROUBLESHOOTING At least twice each year, lower the canopy to check the downrod assembly, and tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added protection.
1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have a copy of the receipt as proof of purchase. The Honeywell Trademark is used under license from Honeywell International Hong Kong China Electric Appliance Manufacture Co., Ltd.
