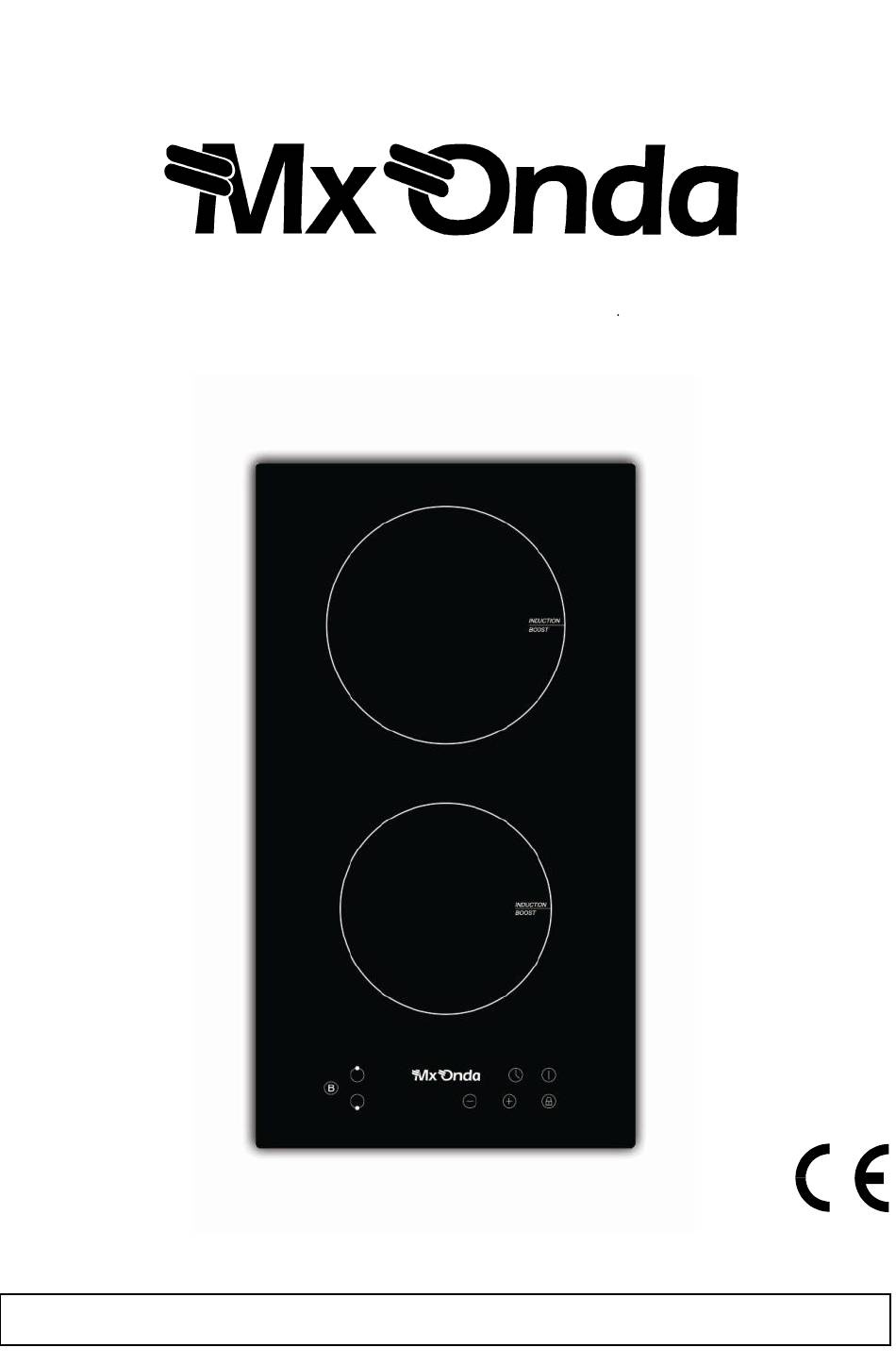

- Page 1 USER AND INSTALLATION MANUAL INDUCTION HOB MX-PI2210 MODEL: PLEASE READ THESE INSTRUCTION MANUAL BEFORE USE...
-
Page 2: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. - Page 3 Health Hazard • This appliance complies with electromagnetic safety standards. • However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
- Page 4 • Do not allow children to play with the appliance or sit, stand, or climb on it. • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. •...
-
Page 5: Product Overview
on the pan detector. •The appliance is not intended to be operated by means of an external timer or separate remote-control system. CAUTION:The cooking process has to be supervised.A short term cooking process has to be supervised continuously. WARNING:In order to prevent tipping of the appliance,this stabilizing means must be installed.Refer to the instructions for installation. -
Page 6: Control Panel
1. ON/OFF control Control Panel 2. Heating zone selection controls 3. Power / Timer regulating controls 4. keylock control 5. Timer control 6. Boost control A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. -
Page 7: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 8: Pan Dimensions
Pan dimensions The cooking zones are up to a limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone. To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone. -
Page 9: When You Have Finished Cooking
• You can modify the heat setting at any time during cooking. • By holding down either of these buttons, the value will adjust up or down. If the display flashes alternately with the heat setting This means that: • you have not placed a pan on the correct cooking zone or, •... -
Page 10: Restrictions When Using
Using the Boost Boost is the function that one zone rising to a larger power in one second and lasting for 5 minutes. Thus you can get a more powerful and faster cooking. Using the Boost to get larger power 1. -
Page 11: Locking The Controls
Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control. -
Page 12: Using The Timer As A Minute Minder
People with a heart pace maker should consult with their doctor before using this unit. Using the Timer You can use the timer in two different ways: • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. -
Page 13: Setting The Timer To Turn One Cooking Zone Off
5. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds. 6. Buzzer will bips for 30 seconds and the timer indicator shows “- - “... - Page 14 5. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected. 6.
-
Page 15: Cooking Guidelines
Cooking Guidelines Take care when frying as the oil and fat heat up very quickly, particularly you‟re using PowerBoost. extremely high termperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to the boil, reduce the temperature setting. •... -
Page 16: Heat Settings
For stir-frying 1. Choose an induction compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches. 3. Preheat the pan briefly and add two tablespoons of oil. 4. -
Page 17: Care And Cleaning
Care and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the • When the power to the cooktop is glass (fingerprints, cooktop off. switched off, there will be no „hot marks, stains left by 2. Apply a cooktop cleaner surface‟... -
Page 18: Hints And Tips
Hints and Tips Problem Possible causes What to do The induction hob No power. Make sure the induction hob is cannot be turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. -
Page 19: Failure Display And Inspection
The induction hob or a Technical fault. Please note down the error cooking zone has letters and numbers, switch turned itself off the power to the induction hob unexpectedly, a tone off at the wall, and contact a sounds and an error qualified technician. - Page 20 Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate.
-
Page 21: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 30 mini Air intake Air exit 10 mm Before you install the hob, make sure that • the work surface is square and level, and no structural members interfere with space requirements • the work surface is made of a heat-resistant material •... - Page 22 screw bracket Screw hole base Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics 3.
-
Page 23: Connecting The Hob To The Mains Power Supply
Connecting the hob to the mains power supply This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that: 1. the domestic wiring system is suitable for the power drawn by the hob. 2. - Page 24 Electromagnetic Compatibility) and the 2006/95/EC (LVD – Low Voltage Directive) relative to Low Tension Security. “MX, MX ONDA” and its logos are trademarks of MX ONDA, S.A. Telephone of information and Technical Service: +34 902 551 501 MX ONDA, S.A.
