Proteco Q60S Installation And User Manual

CONTROL UNIT FOR
SLIDING GATES

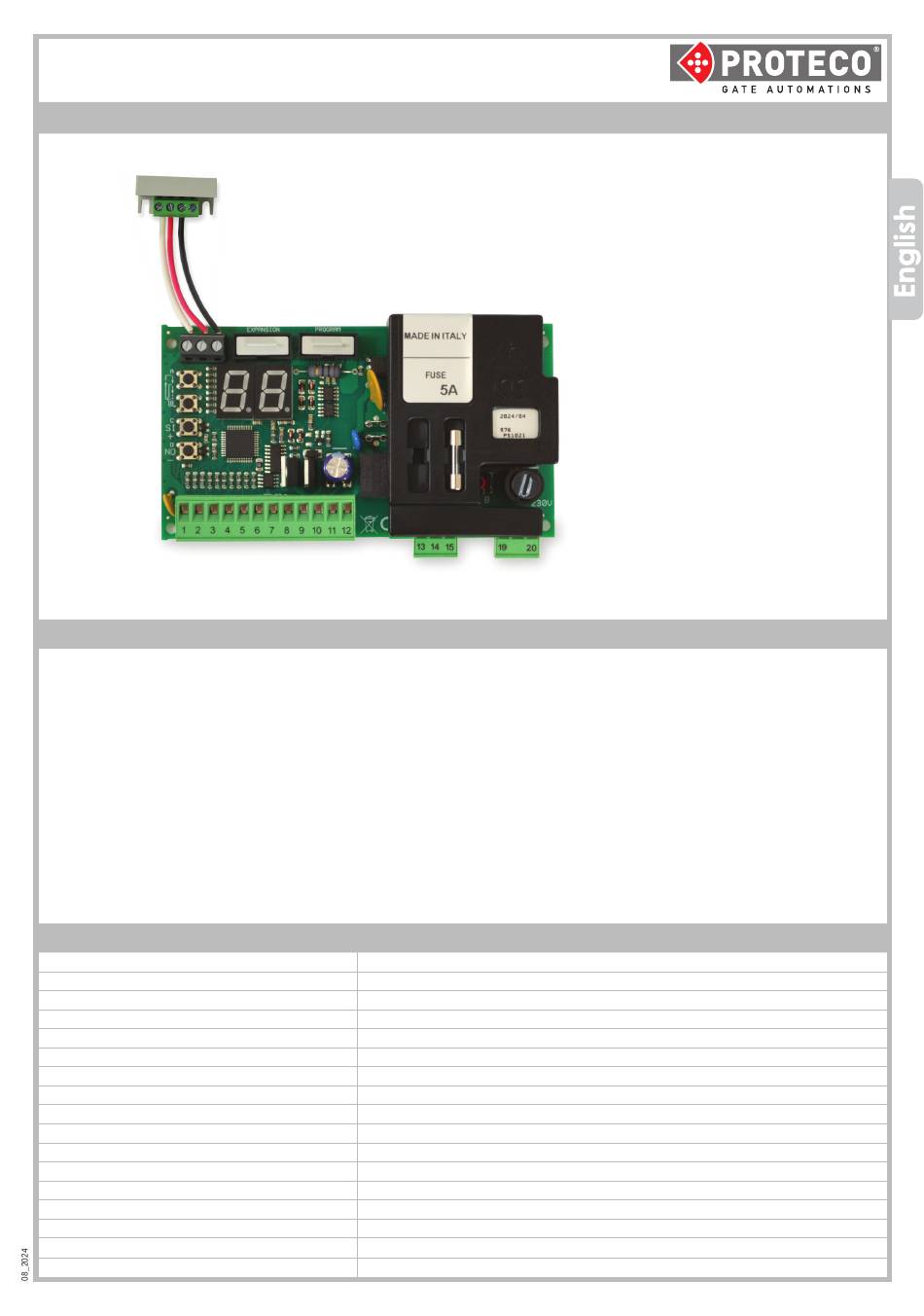

Control unit for sliding gates - 230V ac
•
Integrated LED display for programming and fault diagnostics.
•
Advanced programming with manual adjustment of individual
parameters.
•
Electronic adjustment of forces, work time and slowdown.
•
Adjustable pedestrian opening.
•
Multi-occupation function with priority to opening.
•
Automatic, semi-automatic, and step-by-step closing.
•
Motor and photocell test function.
•
Plug-in terminal blocks.
•
Input for timer function.
•
Pre-wired 433.92MHz radio receiver.
TECHNICAL FEATURES
Item code
Control unit dimensions
Weight
Power supply voltage
Power supply voltage tolerance
Transformer
Main fuse
Rated power
Maximum power consumption
Standby power consumption
Flashing light power supply
Accessories power supply
Electric lock power supply
Operating temperature
PROTECO S.r.l.
Via Neiv e , 77 - 12050 Castagnito (CN) ITALY
Installation and User manual
PQ60SR
136 x75 x 35 mm
160 g
230V ~ 50-60Hz
-10% +20%
230/21V ac – 15V A
5 A
600 W
3,5 A
30 mA
24Vac, ma x 20 W
24 Vdc , ma x 5 W
12Vdc, ma x 15 W
-20 +50 °C
230V ac
Q60S
