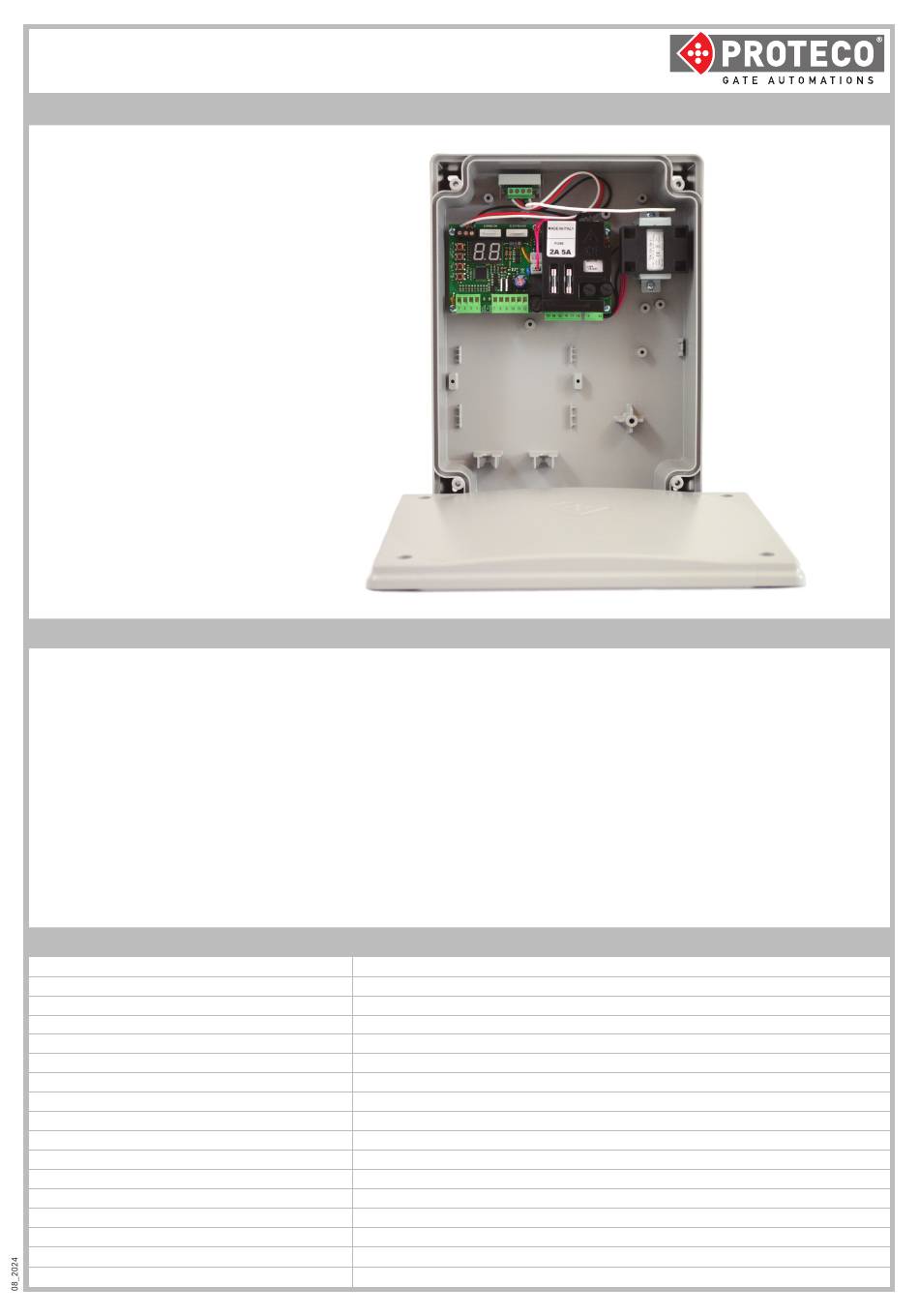

CONTROL UNIT
FOR SWING GATES
Q60A
Control unit for single and double-leaf gates 230V ac
Integrated LED display for programming and fault diagnostics.
Advanced programming with manual adjustment of individual parameters.
Electronic adjustment of forces, work time and slowdown, separate for each motor.
Adjustable leaf delay time.
Single leaf function for single gates.
Adjustable pedestrian opening.
Multi-occupation function with priority to opening.
Automatic, semi-automatic, and step-by-step closing.
Motor and photocell test function.
Electric-lock optional card with "reversing stroke" and "lock pulse" functions.
Plug-in terminal blocks.
Input for timer function.
Pre-wired 433.92MHz radio receiver.
TECHNICAL FEATURES
Item code
Control unit dimensions
Housing dimensions
Weight
Power supply voltage
Power supply voltage tolerance
Transformer
Main fuse
Rated power
Maximum power consumption
Standby power consumption
Flashing light power supply
Accessories power supply
Electric lock power supply
Operating temperature
Protection degree (boxed)
PROTECO S.r.l.
Via Neive, 77 - 12050 Castagnito (CN) ITALY
Installation and User manual
PQ60AR, PQ60ARD
136 x75 x 35 mm
220 x 290 x 90 mm
160 g
230V ~ 50-60Hz
-10% +20%
230/21Vac – 15VA
5 A
600 W
3,5 A
30 mA
24Vac, max 20 W
24 Vdc , max 5 W
12Vdc, max 15 W
-20 +50 °C
IP55
230V ac
Tel. +39 0173 210111 - Fax +39 0173 210199
info@proteco.net - www.proteco.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q60A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Proteco Q60A

  • Page 1 Accessories power supply 12Vdc, max 15 W Electric lock power supply -20 +50 °C Operating temperature IP55 Protection degree (boxed) PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 2: Table Of Contents

    FAULT MESSAGE LIST / DIAGNOSTICS / TROUBLE SHOOTING ..............PAR04 HOUSING INSTALLATION ......................... p. 23 p. 23 DISPOSAL ................................. PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 3: Warnings And Installation Tips

    The control unit is designed to manage single and double-leaf gates. In case of single-leaf gates, pay particular attention to the paragraphs marked with the symbol: Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel.
  • Page 4: Wiring Diagram And Component Description

    = Secondary varistor Main Menu Parameters/Functions  Confirm / +   Back / -  Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 5: Wirings

    CLOSE OPEN 12-24V 12-24V 12-24V 12-24V ac /dc ac /dc ac /dc ac /dc Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 6 Make sure the electrical circuit is equipped with a disconnect device wired to the control panel.   Neutral Line Electric lock plug Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 7: Motors

    3 terminal block 3 terminal block 3 1 RH leaf (M1) CAPACITOR CAPACITOR CAPACITOR Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 8: Main Power Line

    STOP The connection of an emergency STOP button is PUSH BUTTON essential for the safety of people and objects. Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 9: Electric Lock

    9 = Power supply + PHOTO TX 10 = Power supply - NEUTRAL PHOTO TX/RX 4 - 8 = Photocell contact Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 10: Safety Edges

    Terminal block 2a Terminal block 2b STOP SAFETY EDGE 1 SAFETY EDGE 2 SAFETY EDGE 3 Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 11: Opening Safety Edge (Mechanical)

    Terminal block 2a Terminal block 2b SAFETY EDGE 1 STOP SAFETY EDGE 2 SAFETY EDGE 3 Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 12: Programming Menu

    ARTICULATED ARM OPERATOR - RESET TO DEFAULT VALUES WHEEL OPERATOR - RESET TO DEFAULT VALUES SEQUENTIAL programming 1 motor SEQUENTIAL programming 2 motors Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 13: Main Menu

    Press and hold during 5 seconds to save the setting or wait 30 seconds, the control unit saves the setting automatically Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 14 5 seconds to save the setting Press and hold or wait 30 seconds, the control unit saves the setting automatically Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 15 Press and hold   during 5 seconds to save the setting or wait 30 seconds, the control unit saves automatically Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 16: Electric Lock

    Press and hold during 5 seconds to save the setting or wait 30 seconds, the control unit saves the setting automatically Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 17: Motor Test

    5 seconds to save the setting Press and hold or wait 30 seconds, the control unit saves the setting automatically Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 18: User Menu

    5 seconds to save the setting Press and hold or wait 30 seconds, the control unit saves the setting automatically Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 19: Inputs Menu

    Press and hold during 5 seconds to save the setting or wait 30 seconds, the control unit saves the setting automatically Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199...
  • Page 20: Pedestrian Start

    Press and hold or wait 30 seconds, the control unit saves the setting automatically SAVE SETTINGS   Press and hold during 5 seconds to save the setting Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 21: Radio

    Delete all EXISTING REMOTE CONTROLS  Press and hold until the display shows  All radio codes have been deleted Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 22: Default

    TIME, and the gate begins the CLOSING cycle. Let the gate reaching the closing position. The control unit goes automatically out of the programming mode, the procedure is completed. Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel.
  • Page 23: Fault Message List / Diagnostics / Trouble Shooting

    Electric lock releasing pulse has been sent ELECTRIC LOCK Receiving unknown radio code Radio code transmitting Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 24: Motors Test

    • Motors are not wired Check the wiring of the motors. MOTORS TEST • Fuses blew Check the fuses. Q60A _08_24 PROTECO S.r.l. Via Neive, 77 - 12050 Castagnito (CN) ITALY Tel. +39 0173 210111 - Fax +39 0173 210199 info@proteco.net - www.proteco.net...
  • Page 25: Par04 Housing Installation

    FITTING THE CONTROL UNIT HOUSING PAR04 190,5 Fig. 1 Fig. 3 Fig. 4 Fig. 2 Fig. 5 6) Proceed to DISPOSAL Do not pollute the envinronment PROTECO S.r.l.
  • Page 26: Ce Compliance Declaration

    COMPLIANCE DECLARATION : PROTECO S.r.l Manufacturer Via Neive, 77 – 12050 Castagnito (CN) – ITALIA Address declares that: : Q60A Control Unit for swing gates (1 or 2 motors) 230V The product type PQ60AR, PQ60ARD Models MEL01 Accessories Is built to be integrated into a machine or to be assembled with other machinery to create a machine under provisions of 2006/42/EC Machinery Directive.
