UAFX 1176 Studio Compressor Manual
Updated 4 months ago
This article contains complete operating instructions for the UAFX 1176 Studio Compressor
pedal from Universal Audio.
In this article
A Letter From Bill Putnam, Jr.
UAFX 1176 Quick Start
UAFX 1176 Studio Compressor Overview
UAFX 1176 Power
UAFX 1176 Connections
UAFX 1176 Controls
UAFX 1176 Specifications
UAFX 1176 Safety
A Letter From Bill Putnam, Jr.
Congratulations on your new UAFX pedal. We know that buying any new piece of gear requires
an investment of time and money, and we aim to make your investment pay off!
https://help.uaudio.com/hc/en-us/articles/17410682214420-UAFX-1176-Studio-Compressor-Manual#01H8CKFJA45R6EQ3ESK4H3X93C
UAFX 1176 Studio Compressor Manual – Universal Audio Support Home
1/11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Universal Audio Studio Compressor UAFX 1176
Summary of Contents for Universal Audio Studio Compressor UAFX 1176
- Page 1 10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home Browse help topics UAFX 1176 Studio Compressor Manual Updated 4 months ago This article contains complete operating instructions for the UAFX 1176 Studio Compressor pedal from Universal Audio.
- Page 2 10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home At UA, we are dedicated to the idea of building "instant classics" — the type of music and audio gear that delivers album-worthy sounds to inspire you for decades.
-
Page 3: Key Features

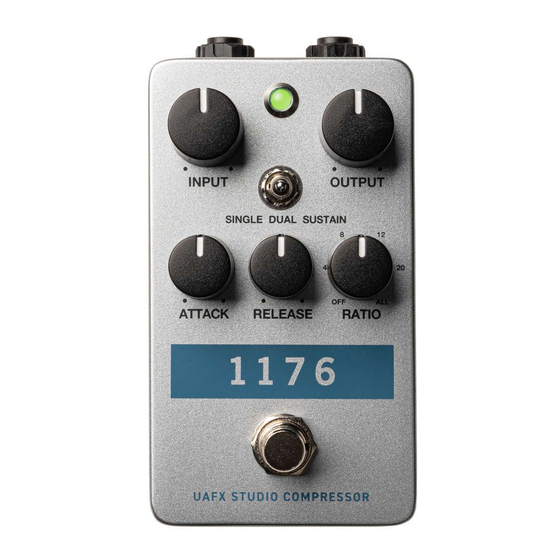

UAFX 1176 Studio Compressor Overview Introduced in 1967, the Universal Audio 1176 remains the king of audio limiting, heard on more classic records than any other compressor. Built on the powerful UAFX engine, the 1176 Studio Compressor delivers the same punchy, expressive tones of the world-renowned hardware, now in a compact stompbox. ... - Page 4 10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home UAFX 1176 Connections To learn how to wire your UAFX pedals, here. UAFX 1176 Controls The following controls are available on 1176. In Single mode, 1176’s controls are always "what you see is what you get."...
-
Page 5: Compressor Modes
10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home Adjusts the overall volume level out of the pedal. When the Output is set at noon (running direct or into other pedals), it will be roughly the same level as your bypassed level, depending on the amount of compression. - Page 6 10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home sound! Attack Adjusts reaction time of the compressor after the signal crosses the threshold. Unlike most compressors, you rotate this control clockwise for faster attack (as with the original hardware). ...
-
Page 7: Bypass Mode
10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home The footswitch toggles the effect on/off. The LED is lit when the effect is active. The LED changes colors to indicate compressor activity. Green – Lit when the compressor is not compressing the signal Yellow –... - Page 8 10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home UAFX 1176 Specifications Note: All specifications are subject to change without notice. Power requirements Isolated 9VDC, center-negative, 250 mA minimum (power supply sold separately) Input ¼” unbalanced TS Output ¼”...
- Page 9 10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home Caution: To help maintain the safety of your product, the chosen power supply must be a certified power supply complying with Limited Power Source (LPS) requirements with the following characteristics and electrical ratings: Isolated 9VDC, center-negative, 250 mA minimum, 2.1x5.5 mm barrel connector.
- Page 10 10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home A compliance marking label is provided on bottom of the unit. Japanese Class B Manual Statement この装置は、クラスB機器です。この装置は、住宅環境で使用することを目的としています が、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こ すことがあります。取扱説明書に従って正しい取り扱いをして下さい。VCCI-B (This is Class B equipment. Although this equipment is intended for use in residential environments, it could cause poor reception if used near a radio television receiver.
- Page 11 10.09.2024, 12:53 UAFX 1176 Studio Compressor Manual – Universal Audio Support Home https://help.uaudio.com/hc/en-us/articles/17410682214420-UAFX-1176-Studio-Compressor-Manual#01H8CKFJA45R6EQ3ESK4H3X93C 11/11...
