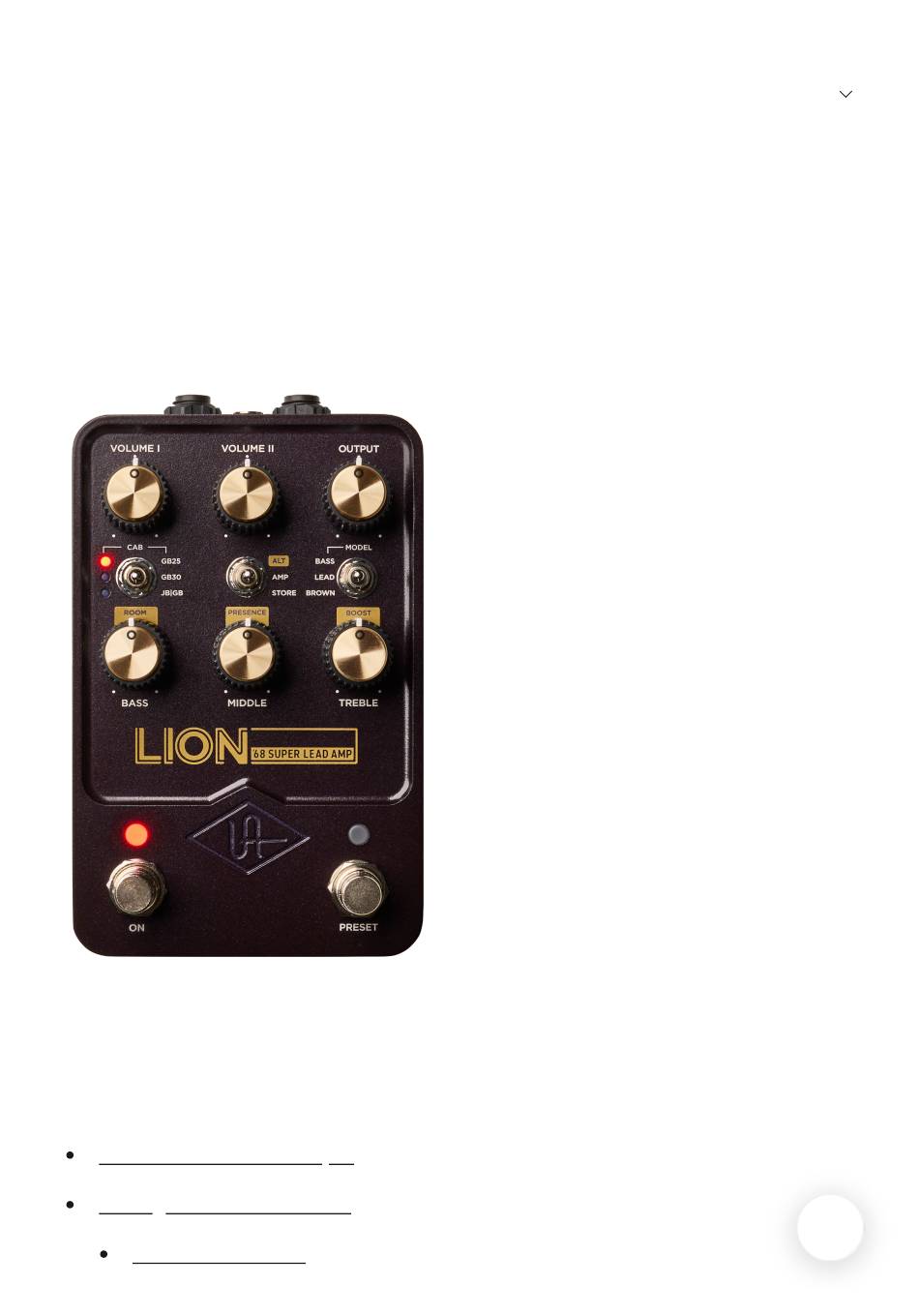

UAFX Lion '68 Super Lead Amp Manual
Updated 1 month ago
This article contains complete operating instructions for the UAFX Lion '68 Super Lead Amp
effects pedal from Universal Audio.
In this article
A Letter From Bill Putnam, Jr.
Getting Started with Lion '68
Lion '68 Quick Start
https://help.uaudio.com/hc/en-us/articles/18615951320596-UAFX-Lion-68-Super-Lead-Amp-Manual
UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home
1/27
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Universal Audio UAFX Lion 68
Summary of Contents for Universal Audio UAFX Lion 68
- Page 1 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Browse help topics UAFX Lion '68 Super Lead Amp Manual Updated 1 month ago This article contains complete operating instructions for the UAFX Lion '68 Super Lead Amp effects pedal from Universal Audio.
-
Page 2: A Letter From Bill Putnam, Jr
02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Lion '68 Firmware Lion '68 Power Lion '68 Connections Lion '68 Overview Lion '68 Operation Lion '68 Controls Lion '68 Cabs Lion '68 Models Lion '68 Boost... - Page 3 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Sincerely, Bill Putnam Jr. Getting Started with Lion '68 Lion '68 Quick Start UAFX pedals include a quick start sheet in the box. To download the sheet, go here. ...
- Page 4 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Be sure to update your pedal's firmware with UA Connect to get the latest features and functionality. To learn how to use UA Connect with your UAFX pedals, go here.

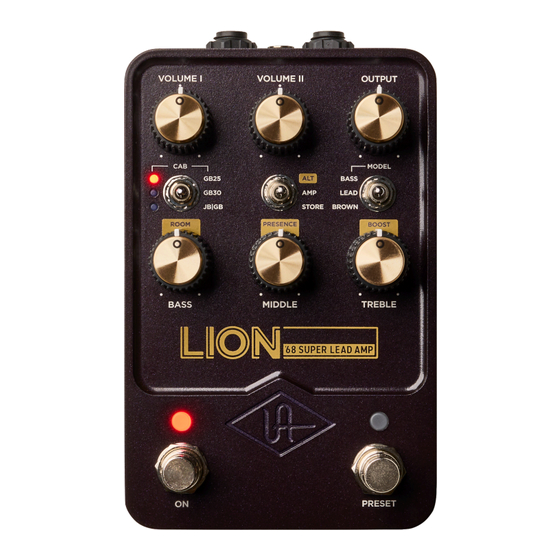

- Page 5 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Lion has true stereo I/O and footswitchable live, preset, and boost modes. Controls include both volumes, treble/middle/bass/presence, output level, boost, six miked cabinets, and room tone.
- Page 6 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home uaudio.com/uafx/start Lion '68 Operation Live Mode and Preset Mode Note: Lion '68 is in Live | Preset mode by default. You can use UAFX Control to change footswitch assignments.
- Page 7 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home To enter Preset mode, press the right footswitch. Press the right footswitch again to toggle the preset on/off. The right footswitch LED is lit green when the preset is on.
- Page 8 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home You can view and audition all of your pedal's presets with UAFX Control. Presets can only be stored when the pedal is not bypassed. ...
-
Page 9: Treble / Boost
02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Adjusts two different settings, depending on the position of the Alt / Amp / Store switch. AMP mode: Adjusts the low frequency response of the amp's tone stack. -
Page 10: Model Switch
02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home ALT mode: Adjusts the amount of boost applied to the amp circuitry. See Lion '68 Boost for details. Cab Switch Push this switch up or down to change the speaker cabinet and microphone. When you push the switch repeatedly in the same direction, the pedal cycles through all available speaker cabinets. - Page 11 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Lion '68 includes three independent amplifier models, each of which provides different amp character and features. Use the Model switch to select the amp, and the Boost knob to push the input of the amp for more added gain.
-
Page 12: Right Footswitch
02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Right Footswitch By default, press to toggle the Preset sound on/off. This footswitch can also toggle other options, depending on the pedal footswitch mode, as detailed in the table below. - Page 13 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home When you register your pedal using the UA Connect or UAFX Control apps, your free bonus EV12, D65, and V30 speaker cabinets are added to the pedal. To select these speaker cabinets, push the Cab switch until the top, middle, or bottom Cab LED is lit green.
- Page 14 Note: Product names used herein are trademarks of their respective owners, which are in no way affiliated with Universal Audio Inc. These name(s) are used solely to identify products studied in the creation of the sound models found in Lion '68 Super Lead Amp.
- Page 15 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Bass The cleaner, higher headroom Super Designed with bass players in mind, Bass version of the '68 amp, running but extremely popular with guitarists at 117 volts. The lack of a bright cap for its darker, mellower sound.
- Page 16 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home spot. Turn the Boost knob above minimum to engage the EP-III preamp, adding color and warmth. Increase Boost towards the 10 o'clock position to add clean gain and push the amp's front end.
- Page 17 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Live | Preset In Live | Preset mode, you can access Live mode (knobs and switches) and the stored preset. Left Footswitch toggles the Live sound on/off...
- Page 18 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Left Footswitch toggles Boost on/off Right Footswitch toggles between Live mode (red LED) and the stored preset (green LED) Pedal is always on and cannot be bypassed...
- Page 19 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Lion Input Routing To adjust Lion's Input Routing for the current sound, under Input Routing, tap Low, High, or Jump. Lion includes detailed modeling of the original amp's inputs. By default, the Lion inputs are routed as if you are plugging into the High inputs with a Y cable.
- Page 20 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home JUMP Replicates the exact signal path of plugging into High input I, and connecting a short patch cable ("jumping") from the Low input of Channel I into the High input of Channel II.
- Page 21 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Bright Cap Toggles the bright cap on Channel I. The bright cap has the effect of adding brightness at lower gains. The effect is reduced as you increase the gain for Channel I, and completely removed at full gain.
- Page 22 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Release Sets the length of time before the noise gate closes after dropping below the threshold. Set this to have a natural release. Attenuation Sets the level of attenuation. Generally this can be set very high if your other settings are correct.
- Page 23 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home Wireless technology Bluetooth v5 Transmitted Frequency Range 2.402 – 2.480 GHz Maximum Output Power +4.35 dBm Dimensions Height: 2.56 inches, 6.5 cm (with knobs and protrusions) Width: 3.62 inches, 9.2 cm...
- Page 24 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
-
Page 25: Taiwan Ncc Warning Statement
02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Page 26 This device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. All essential radio test suites have been carried out. Changes or modifications made to this equipment not expressly approved by Universal Audio and may void the FCC and IC authorization to operate this equipment.
- Page 27 02.09.2024, 11:46 UAFX Lion '68 Super Lead Amp Manual – Universal Audio Support Home https://help.uaudio.com/hc/en-us/articles/18615951320596-UAFX-Lion-68-Super-Lead-Amp-Manual 27/27...
