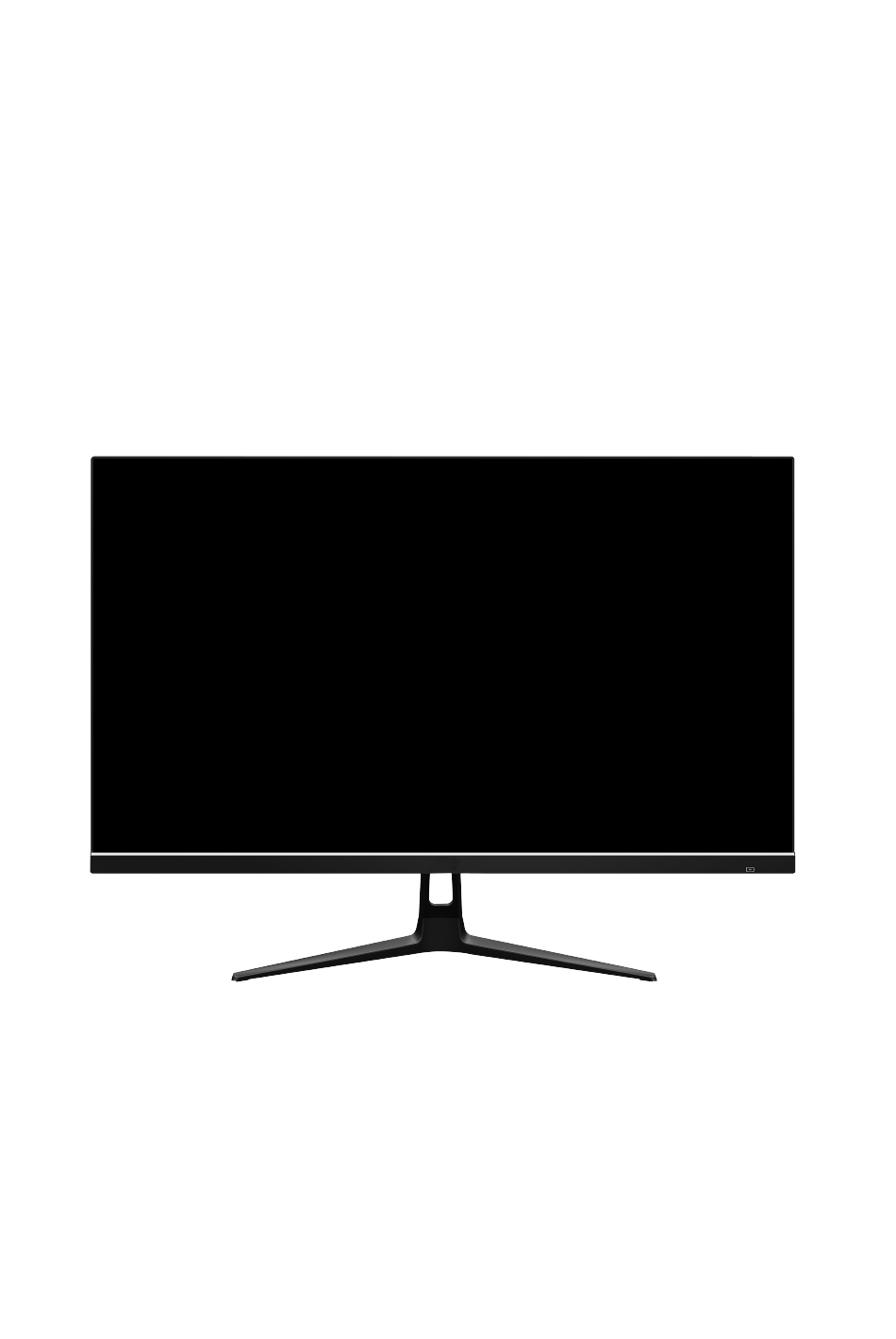

- Page 1 27" RAIDER 4K IPS GAMING Instruc�on Manual Please read this manual thoroug hly before use and keep it handy for future reference.
- Page 2 SAFETY INFORMATION • Read these instructions - All the safety and opera�ng instructions should be read before this product is operated. • Keep these instructions - The safety and opera�ng instruc�ons should be retained for future reference. • Heed all warnings - All warnings on the appliance and in the opera�ng instructions should be adhered to.
- Page 3 Trying to service the unit yourself is dangerous and may invalidate the product's warranty. Only qualified personnel should service this apparatus. • Do not block ventilation slots on the back cover. The monitor can be placed in a cabinet but ensure at least 5cm (2") clearance all around.
- Page 4 WHAT’S INCLUDED...
-
Page 5: Audio Out
CONNECTIONS AVAILABLE ON THE MONITOR DC 12V HDMI 2 HDMI 1 AUDIO OUT Power HDMI 2 HDMI 1 AUDIO OUT WALL MOUNTING The monitor is provided with mounting holes for a VESA approved wall moun�ng bracket (not supplied). The VESA mounting pa�ern is: 100x100mm and the size of the screws is 4 x M6 x 10 (not supplied) Do not use screws longer than specified or damage will occur to the internal components. - Page 6 Shortcut Key Guide ◄ ► Ac vate the Signal Input Selec n menu.Use to navigate and M to select the source. Ac veate the Line of Sight feature. Further press to cycle between the colors or turn off. Ac veate the ECO Mode feature.Further press to cycle through the presets. INITIAL SETUP Connect the monitor to a power outlet.
- Page 7 OSD MENU Imput Source 3840x2160@60Hz HDMI1 DP 1 HDMI1 Settings HDMI2 Settings HDMI1 3840x2160@60Hz Switch the signal input to DisplayPort,HDMI1,HDMI2. Brightness/Contrast 3840x2160@60Hz HDMI1 Settings Settings HDMI1 3840x2160@60Hz Brightness: change the brightness value from 0 to 100. Contrast: Change the contrast ra�o from 0 to 100 . DCR : Turn the Dynamic Contrast Ra�o by on or off...
- Page 8 Color Se�ng HDMI1 3840x2160@60Hz Picture Mode Standard Settings Warm Settings Low Blue Light HDMI1 3840x2160@60Hz Gamma: Change he gamma value to 2.0/2.2/2.4. Picture M ode: Change the picture mode to Standard/photo/movie/ game. Color T emper ature: change the color temperature to Standard/warm/cool/user. Hue: change Hue value from 0 to 100.
- Page 9 Display 3840x2160@60Hz HDMI1 Wide Settings Settings HDMI1 3840x2160@60Hz Aspect Ra�o: Adjust the Aspect ra�on by Auto/ 4:3 /1:1. Audio 3840x2160@60Hz HDMI1 Settings Settings HDMI1 3840x2160@60Hz Mute: Turn on or off to mute the Audio source. Volume: Change the Audio source value from 0 to 100 .
- Page 10 3840x2160@60Hz HDMI1 Settings Settings OSD Timer Out Normal HDMI1 3840x2160@60Hz Language: Adjust the language to Chinese, English, Korean, Russian, Spanish, Japanese,French. H-posi�on: change the horizontal posi�on from 0 to 100. V-posi�on: Change the ver�cal positon from 0 to 100. Transparency: Change the transparency value from 0 to 100. Time out: Change the How long the OSD menu is on before it automa�cally exits .
-
Page 11: Specification
SPECIFICATION Model 27" RAIDER 4K IPS GAMING Screen Size 27” Aspect Ra�o 16:9 Backlight Brightness 300cd/m² Panel Type Resolu�on 3840x2160 Refresh Rate 60Hz Response Time OD 4ms Viewing Angle 170º/160º (CR>10) Contrast Ra�o 3000:1 VESA Moun�ng 100x100mm Colours 1.07B(10bit) AMD FreeSync...
