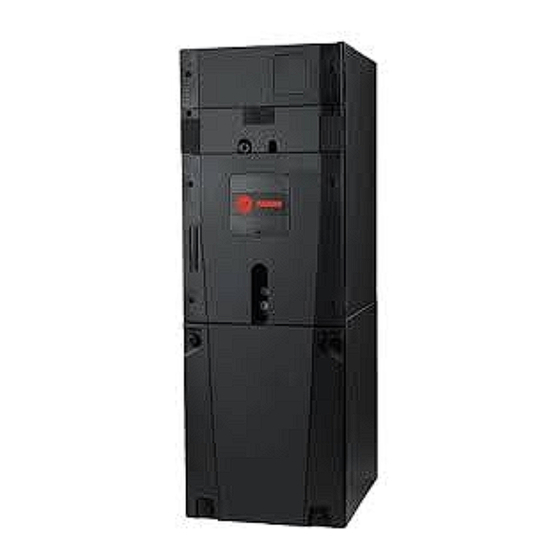

Variable speed air handlers convertible 2- 5 ton
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation, Operation, and Maintenance
Variable Speed Air Handlers
Convertible 2 — 5 Ton
5TAMXB02AV21DA
5TAMXC03AV31DA
5TAMXD04AV31DA
5TAMXD05AV41DA
5TAMXD06AV41DA
5TAMXD07AV51DA
The Diagnostics Mobile App is available by scanning a
QR code located inside this unit or by searching for the
Link Diagnostics App in your App Store.
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning
equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person
could result in death or serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that
are attached to the equipment.
November 2024
N N o o t t e e : : "Graphics in this document are for representation only. Actual model
may differ in appearance."
N N o o t t e e : : For use with BAYEA series heaters ONLY.
N N o o t t e e : : This unit can be used in Link Communicating mode or 24 volt mode.
N N o o t t e e : : Need to use Diagnostics App to configure blower delays and
accessories etc., in 24 volt mode.
S S A A F F E E T T Y Y W W A A R R N N I I N N G G
1 1 8 8 - - G G J J 9 9 6 6 D D 1 1 - - 1 1 B B - - E E N N
