Operation

Control elements

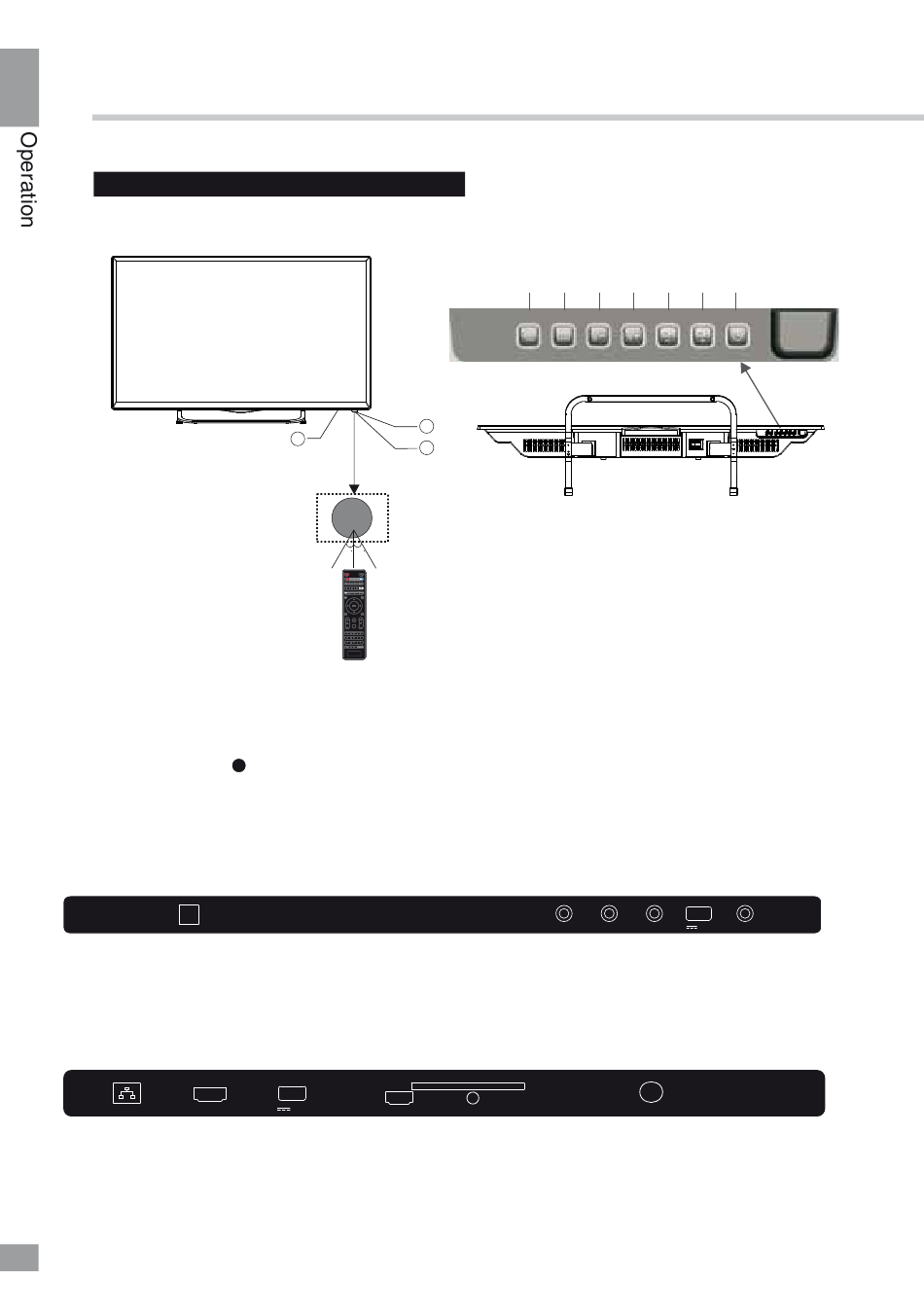

Front panel

1. Remote control sensor
2. Indicator LED: RED
3. Key board
REAR AV Connections
All the terminals are(from left to right):
AC Power Socket, VIDEO INPUT, AUDIO INPUT, USB PORT, COAXIAL OUTPUT.
REAR AV Connections(SIDE)
LAN HDMI2
All the terminals are (from left to right):
LAN PORT, HDMI2, USB 3.0 PORT, HDMI1, HEADPHONE, CI, RF.
6
6
3
30 30
STANDBY
AC-INPUT
100-240V~50 HZ
U S B3.0
5V 9 00mA
SOURCE MENU
1
2
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．V-/V+
Adjust sound level.
In MENU mode, press"V+"or"V-"to
adjust the item that you selected.
4．CH+/CH-
In TV mode，press"CH+"or"CH-"to change
the channel up and down.
In MENU mode, press "CH+"or"CH-"to select
items.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
VIDEO
COMMON INTERFACE(CI)
HDMI1 H EADPHONE
V- V+ CH- CH+ Standby
USB
L R 5V
500mA COAXIAL
R F
