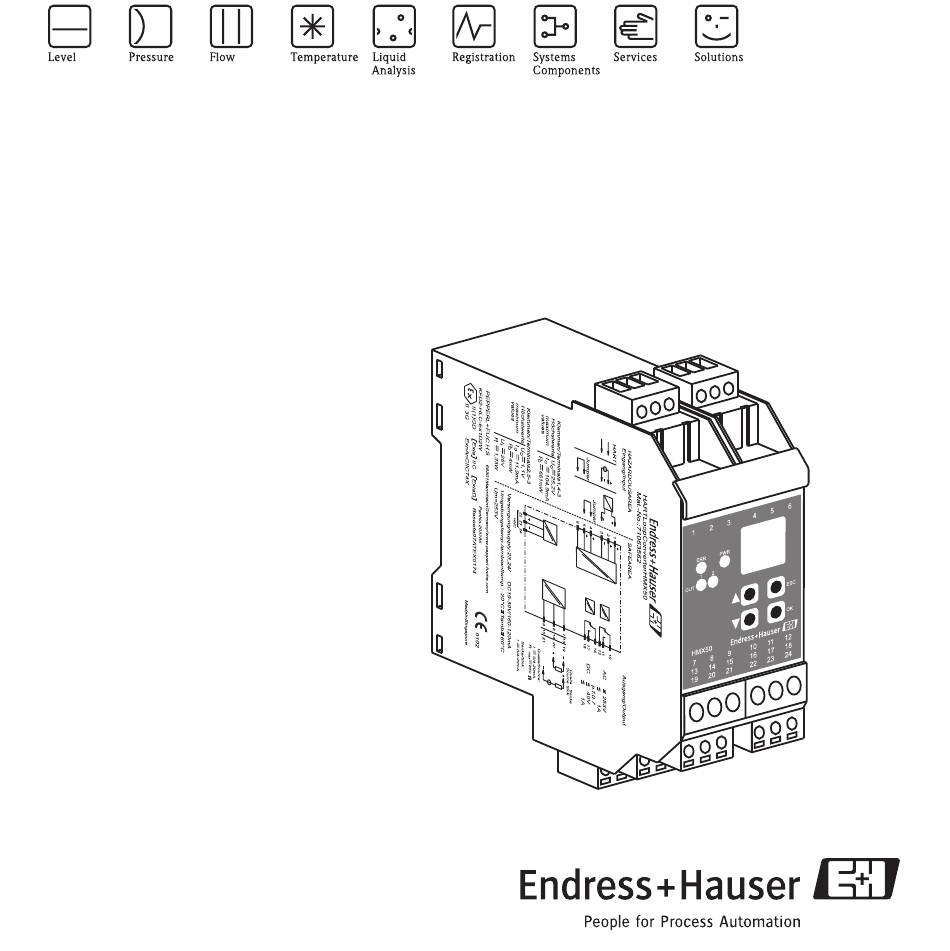

- Page 1 Operating Instruction HART Loop Converter HMX50 Signal Transmitter BA00371F/00/EN/13.14 71242148...
-
Page 2: Table Of Contents
HART Loop Converter HMX50 Symbols used ........................4 Overview ..........................4 2.1 Range of application ......................4 Safety instruction .......................6 3.1 Intended use ........................7 Installation and commissioning ..................8 4.1 Installation and commissioning in connection with hazardous areas ........8 Installation and Connection .....................11 5.1 Installation ........................11 5.2 Connection ........................12 5.3 Setting sensor parameters via HART .................15 5.4 Front ..........................16... - Page 3 HART Loop Converter HMX50 7.5 Relay ..........................33 7.5.1 Trip value ......................35 7.5.2 Assignment ......................37 7.5.3 Switching characteristic ..................37 7.5.4 Trip point and hysteresis ..................39 7.5.5 Restart inhibit .......................39 7.5.6 Response delay .....................40 7.5.7 Fault indication ....................41 7.6 Service ..........................42 7.7 Default settings ........................43...
-
Page 4: Symbols Used
The HMX50 is suited for the connection of field devices used in potentially explosive atmospheres. Safe field circuits for these devices are intrinsically safe and are galvanically isolated from non-intrinsically safe circuits. The devices thus establish an electromagnetic separation between the potentially explosive atmospheres and the safe areas in a system. Endress+Hauser... - Page 5 In addition, two configurable limit values from the HART variables can be monitored via the relay outputs on the HMX50. More information can be found in Technical Information TI429F. For certificates, declaration of conformity please refer to webpage http://www.pepperl-fuchs.com/selector/gui/ global_search.kly?search_type=PRODNAME&action=list&que- ry=KFD2-HLC-Ex1* Endress+Hauser...
-
Page 6: Safety Instruction
Only the manufacturer is authorised to perform reparations. Please contact the service of Endress+Hauser. Tampering with or making changes to the devices is dangerous and therefore not permitted. They render the warranty void. -
Page 7: Intended Use
• Circuits in type of protection "nL" that were operated with circuits of other types of protection (except intrinsic safe circuits) must not be used in type of protection "nL" afterwards. Endress+Hauser... -
Page 8: Installation And Commissioning
• When intrinsically safe circuits are used in areas made hazardous by dust (zone "D"), only appropriately certificated field devices must be used. • The EC-Type Examination Certificates should be observed. It is especially important to observe the "special conditions" where these are contained in the certificates. Endress+Hauser... - Page 9 When intrinsically safe circuits are used in areas made hazardous by dust (Ex zone "D"), only appropriately certificated field devices must be used. • The EC-Type Examination Certificates and the manufacturer's declaration of conformity are to be observed. It is especially important to observe the "special conditions" where these are contained in the certificates. Endress+Hauser...
- Page 10 The devices are assessed for pollution degree 2 and overvoltage category II according to EN50178. Ambient conditions • Ambient temperature: see Technical Information TI429F • Storage temperature: -40°C ... +90°C (233K ... 363K) • Humidity: max. 75 % rel. humidity without moisture condensation Endress+Hauser...
-
Page 11: Installation And Connection
(water, small foreign objects). The device can be mounted on a 35 mm standard rail corresponding to DIN EN 50022. The device must be snapped onto the rail verti- cally, and never slanted or tipped to the side. Endress+Hauser... -
Page 12: Connection
Terminals are equipped with screws, are self-opening, have a large connection area for a wire cross-section up to 2.5 mm² and coded plugs, making it impossible to mix them up. Endress+Hauser... - Page 13 • an active HART bus-compatible mA source, e. g. a separately powered 3-wire HART transmitter (terminals 2 and 3, bridge between terminals 5 and 6) • any separately powered HART loop in a parallel circuit (as with 3 - 5 HART handheld terminals, terminals 2 and 3) HART-Loop Endress+Hauser...
- Page 14 3 as source (19/20) or sink (19/21) • Terminals 10 ... 12: relay 1 (change-over contact) • Terminals 16 ... 18: relay 2 (change-over contact) • Terminals 22/24: HART handheld terminal connection • Terminals 23/24: power supply 24 V DC Endress+Hauser...
-
Page 15: Setting Sensor Parameters Via Hart
22/24 or the sensor cables. Transmitting the HART signal via the current outputs of the HMX50 is not possible. Warning! When connecting the sensor cables, use an explosion-proof handheld terminal if the sensor cables lead through a hazardous area. Endress+Hauser... -
Page 16: Front
LED ERR (red) to indicate a fault • LED PWR (green) to indicate the presence of the supply voltage • LED OUT 1 (yellow) to indicate that relay 1 is active • LED OUT 2 (yellow) to indicate that relay 2 is active HMX50 Endress+Hauser... -
Page 17: Display Modes And Error Messages
• The floating decimal values for the HART variables are displayed as follows: − if possible as a four-digit number with decimal point and without an exponent (negative val- ues have three digits because of minus sign) Endress+Hauser... - Page 18 Displays a field device failure – red LED flashes. If switching the HMX50 on/off and checking the cables does not rectify the fault, please contact Endress+Hauser. The relays power down when a fault occurs. For information on the behaviour of the current output in the event of a fault, see section 7.4.4.
-
Page 19: Editing Device Data
You can return to display mode from any point in the menu in parameterization mode by pressing the ESC key (possibly multiple times). If you do not press any key for 10 minutes in parameterization mode, the device automatically switches back into display mode. Endress+Hauser... -
Page 20: Password
• If you enter the last digit, press OK to confirm and the password is correct, the parameter change is accepted. The password must be entered once for each transition from display mode to parameterization mode. Endress+Hauser... -
Page 21: Navigation Method
, , OK and ESC keys: OK → Iout1 Assignment ← ESC OK → Characteristic 4 - 20 NE 43 ← ESC ← ESC Start value ← ESC End value ← ESC Error current ← ESC Endress+Hauser... -
Page 22: Lowest Menu Level: Select Values, Enter Normal Numbers
When entering normal numeric values, please note: • If you press the or keys, the value changes step by step. • If you hold the or keys, the value "rolls" to higher or lower values. Endress+Hauser... -
Page 23: Lowest Menu Level: Enter Floating Decimal Numbers
1.234 1.234 E00 - 0.123 0.123 4 123.4 E-03 -123 E-03 - 0.012 3 0.012 34 12.34 E-03 -12.3 E-03 - 0.001 23 0.001 234 1.234 E-03 -1.23 E-03 - 0.000 123 0.000 123 4 123.4 E-06 -123 E-06 Endress+Hauser... - Page 24 OK to confirm. The exponent appears and begins to flash. • Now enter the exponent value by pressing the and keys (values from E-33 and E00 to E33 in three steps) and press OK to confirm. Endress+Hauser...
-
Page 25: Unit
SV, TV, QV) appears on the HMX50 display. • If you select custom, the Custom Tag appears on the HMX50 display as the unit for the relevant variable (PV, SV, TV, QV). • The selected unit is also used for all corresponding settings in parameterization mode. Endress+Hauser... -
Page 26: Hartcom
The following illustration shows the HART communication menu. Items from the lowest menu level are outlined in bold. HARTcom —— Mode (7.3.1) —— secondary primary TimeOut (7.3.2) —— 5 s ... 60 s ComControl —— auto detect polling burst Endress+Hauser... -
Page 27: Mode
HART master devices. 7.3.2 TimeOut If the HMX50 does not receive a valid HART message after the preset time, the fault indication Communication fault is issued. Timeout range is 5 s to 60 s in increments of 5 seconds. Endress+Hauser... -
Page 28: Defining Comcontrol
HART circuit. The isolated barrier assumes that the other HART master is logged off when it does not send a message for approximately 60 s. After this period of time, the isolated barrier activates the burst configuration of the field device. Endress+Hauser... -
Page 29: Shortaddress And Locatemethod
HMX50 off and on again. Pressing the OK key when „On Rebuild“ is flashing prompts the HMX50 to start searching for con- nected HART devices (see section 7.3.4) in the same way as during start-up. Endress+Hauser... -
Page 30: Current Outputs
For the relay outputs on the HART Loop Converter HMX50, see section 7.5. Output —— Iout1 —— Assignment (7.4.1) —— disabled Characteristic (7.4.2) —— 4 - 20 unlimited 4 - 20 NE 43 Start value —— (7.4.3) Continued on next page Endress+Hauser... - Page 31 Editing device data HART Loop Converter HMX50 End value —— (7.4.3) Error current (7.4.4) —— down hold Iout2 Iout3 Rel1 Rel2 Rel3 Rel4 Endress+Hauser...
-
Page 32: Assignment
Example of an mapping of a measurement range on the output signal Characteristic 4 - 20 NE 43, start value 2 bar, end value 10 bar 20,5 20,0 10,25 Endress+Hauser... -
Page 33: Start Vallue And End Value
„On“ indicates that the function of a relay (Trip value or Fault indication) is enabled. If you want to enable a different function, first call it up with the and keys. Then press the OK key twice. After the first OK, you can cancel with ESC. Endress+Hauser... - Page 34 HART Loop Converter HMX50 Editing device data Output —— Iout1 Iout2 Iout3 Rel1 —— Trip value (7.5.1) Fault indication (7.5.7) Rel2 Rel3 Rel4 Endress+Hauser...
-
Page 35: Trip Value
Assignment menu item. If you enable the Trip value function again (see section 7.5), pressing the OK key a second time gives direct access to the Assignment menu item. Trip value (on) —— Assignment (7.5.2) —— disabled Min/Max (7.5.3) —— Trip point —— (7.5.4) Endress+Hauser... - Page 36 HART Loop Converter HMX50 Editing device data Hysteresis —— (7.5.4) Switching mode (7.5.3) —— Passive Active Restart inhibit (7.5.5) —— Response delay (7.5.6) —— 0 s ... 250 s Endress+Hauser...
-
Page 37: Assignment
• Switching direction „MIN“, switching mode „Active“: Alarm after trip underrange, e. g. horn • Switching direction „MIN“, switching mode „Passive“: Shutdown after trip underrange, e. g. pump, heating, ... off, if the MIN/MAX operation hysteresis is large (pump, heating, ... on/off) Endress+Hauser... - Page 38 Min. + hysteresis Min. trip point Time Switching direction MAX, switching mode Active: energized de-energized Switching direction MAX, switching mode Passiv: energized de-energized Switching direction MIN, switching mode Active: energized de-energized Switching direction MIN, switching mode Passiv: energized de-energized Endress+Hauser...
-
Page 39: Trip Point And Hysteresis
If „Restart inhibit on“ is selected, after the relay switches, the new status remains active until the ESC key is pressed or the device is restarted. This will reset the relay unless the trip violation is still pending. Endress+Hauser... -
Page 40: Response Delay
• Momentary excesses/shortfalls have no effect. The following illustration shows the switching characteristics, in this example, switching direction „MAX“, switching mode „Active“. Measured value Max. trip point Max. - hysteresis Time Switching direction Max, switching mode Active, with delay energized de-energized Delay Delay Endress+Hauser... -
Page 41: Fault Indication
If „Restart inhibit“ on is selected, after the relay switches, the new status remains active until the ESC key is pressed or the device is restarted. This will reset the relay unless the fault indication is still pending. Endress+Hauser... -
Page 42: Service
OFF reset Version —— Version No. Reset: Pressing the OK key when „On Reset“ is flashing resets all settings on the HMX50 to de- fault (see section 7.7). Any entries that you have made in parameterization mode are lost. Endress+Hauser... -
Page 43: Default Settings
Output Iout1 Assignment disabled Characteristic 4 - 20 NE 43 Fault current Start value 0.000 End value 100.0 Error current down Output Iout2 Assignment disabled Characteristic 4 - 20 NE 43 Fault current Start value 0.000 End value 100.0 Endress+Hauser... - Page 44 MIN/MAX (= switching direc- tion) Trip point 80.00 Hysteresis 10.00 Switching mode passive Restart inhibit OFF restart inhibit Response delay 0 sec Fault indication not selected Output Rel2 Trip value On (= selected) Assignment disabled MIN/MAX (= switching direc- tion) Endress+Hauser...
- Page 45 Editing device data HART Loop Converter HMX50 Menu Parameter Default setting Separate value Trip point 80.00 Hysteresis 10.00 Switching mode passive Restart inhibit OFF restart inhibit Response delay 0 sec Fault indication not selected Service Language Password OFF PASS Endress+Hauser...
- Page 46 HART Loop Converter HMX50 Editing device data Endress+Hauser...
- Page 47 Editing device data HART Loop Converter HMX50 Endress+Hauser...
- Page 48 www.endress.com/worldwide BA00371F/00/EN/13.14 71242148 71242148 CCS/FM+SGML 9.0...
