Summary of Contents for Gallagher G58211

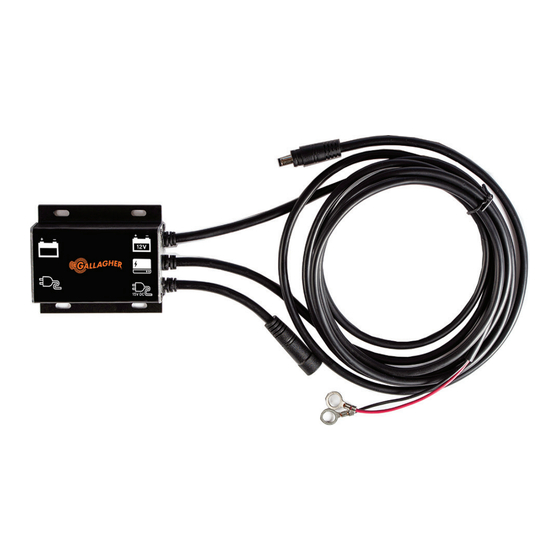

- Page 1 MBS Battery Backup Q U I C K S TA R T G U I D E 06/24 Scan the QR code for the user manual in multiple languages...
- Page 2 What’s in the box 1 x MBS Battery Backup 1 x Power Cord EUR 4 x Mounting Screws 1 x Power Cord NZ/AUS 2 x Battery Terminals 1 x Power Cord NA 1 x 15V 4A Power supply (MBS100-MBS800 only) Installation Install the Battery Backup: •...
- Page 3 Wiring diagram BATTERY WIRESET Lead Acid Battery 5V DC POWER SUPPLY WIRESET MBS Energizer POWER SUPPLY* 110/230V Mains Power Refer to the guide below to determine which power supply to use. Energizer model Power supply MBS6500i or greater You must use the power supply provided with the energizer.
- Page 4 Specifications Part Number G58211 Voltage Input 15V DC input Battery Charge Current 0.4A (maximum) Accessories i Series Lightning Energizer Remote Diverter & Fault Finder Reduce the Quickly and easily risk of lightning locate and repair damage to your faults. electric fence and energizer.
