Accuride AL4165 Manual

Applications: Industrial applications requiring heavy load
capacities and two-way travel, including
material handling, robotics, and automation.
Travel
[1.5]
3.15
[80.0]
.03
[.8]
1.04
[26.5]
Finish: Aluminum
Travel: Two-way full travel
Height: 3.15" [80 mm]
Lengths: 16", 20", 24", 28", 32", 36", and 40"
[400 mm, 500 mm, 600 mm, 700 mm,
800 mm, 900 mm, and 1000 mm]
Part Number
AL4165-16
AL4165-20
AL4165-24
AL4165-28
AL4165-32
AL4165-36
AL4165-40
* Load rating based on a pair of slides mounted 24" apart and tested at 10,000 cycles.
1.97
[50.0]
1.97
[50.0]
.06
B
Slide Body Slide Length
15.75 [400] 16.61 [422]
19.69 [500] 20.55 [522]
23.62 [600] 24.49 [622]
27.56[700] 28.43 [722]
31.50 [800] 32.36 [822]
35.43 [900] 36.30 [922]
39.37 [1000] 40.24 [1022]
1.97 1.97
[50.0] [50.0]
C C
Slide Length
8X Ø.26 [6.6]
Ø.5 [12.6] X 90.0°
Slide Body
5.91
B
[150.0]
A
Load Rating:
Side Space:
Mounting:
Hardware:
Temperature Range:
Travel A
15.75 [400] 15.16 [385]
19.69 [500] 19.09 [485]
23.62 [600] 23.03 [585]
27.56[700] 26.97 [685]
31.50 [800] 30.91 [785]
35.43 [900] 34.84 [885]
39.37 [1000] 38.78 [985]

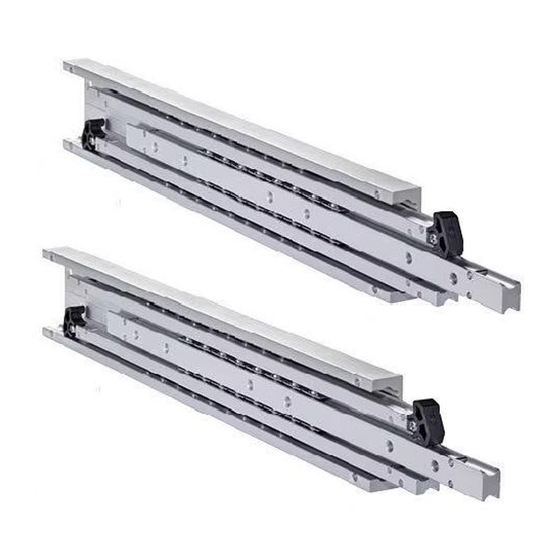

MODEL AL4165
Two-Way Travel
Up to 600 lbs. [270 kg] load rating*
1.97
[50.0]
Travel
6X M8 x 1.25-6H
4X 1.38
[35.0]
Up to 600 lbs. [270 kg] per pair*
1.043" [26.5 mm]
Side/hard mount
Not recommended for flat mount.
M6/M8 recommended (not included)
-4°F to 158°F [-20°C to + 70°C]
B C
4.63 [117.5] 2.95 [75]
6.59 [167.5] 4.92 [125]
8.56 [217.5] 6.89 [175]
10.53 [267.5] 8.86 [225]
12.50 [317.5] 10.83 [275]
14.47 [367.5] 12.80 [325]
16.44 [417.5] 14.76 [375]
Aluminum
Inches
[mm]
