TESmart HMA0402A1U User Manual

4X2 HDMI Matrix
USER MANUAL
ENJOY THE VIVID WORLD
IR HDCP
IR HDCP
Features :
Support resolutions up to 3840*2160@60Hz
Ÿ
Support up to 36 bit/pixel color depth
Ÿ
Ÿ Easy to control matrix via IR receiver and panel keypad
Ÿ Support 5.1/By pass modes of audio output
Support audio output via optical and AUX L/R audio interfaces
Ÿ
HDCP 2.2 compliant
Ÿ
Ÿ With EDID emulators in each input port, keep PCs always
Ÿ having correct display information
Each HDMI output can share one input or select standalone
Ÿ
input
Packing List :
1*4X2 HDMI Matrix
1*DC 5V adapter
1*IR remote control
1*User manual
IR HDCP

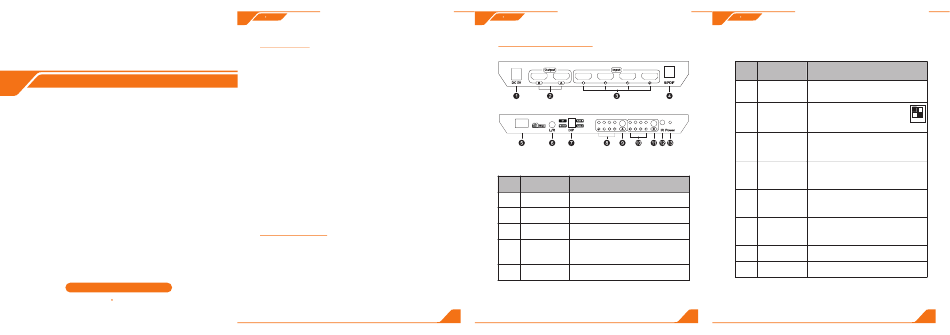

Panel Description :
ID Name Description
1 DC 5V DC 5V power supply
2 HDMI output Connect to HDMI displays
3 HDMI input Connect to HDMI devices
S/PDIF audio
4 Connect to AMP
output
5 Power switch Turn on or turn off power supply
1
IR HDCP
ID Name Description
L/R AUX audio
6
Connect to analog L/R audio speaker
output
1：Prefer 5.1/By pass audio output
7 DIP switch 2：Select S/PDIF audio source
between Output A or B
Port A
The LED will be lit if the corresponding
8 selection
input source is selected
indicator
Port A
9 selection Select input sources
button
Port B
The LED will be lit if the corresponding
10 selection
input source is selected
indicator
Port B
11 selection Select input sources
button
12 IR receiver Receive IR signal
13 Power status LED indicator of power supply
2
1 2
DIP
3
