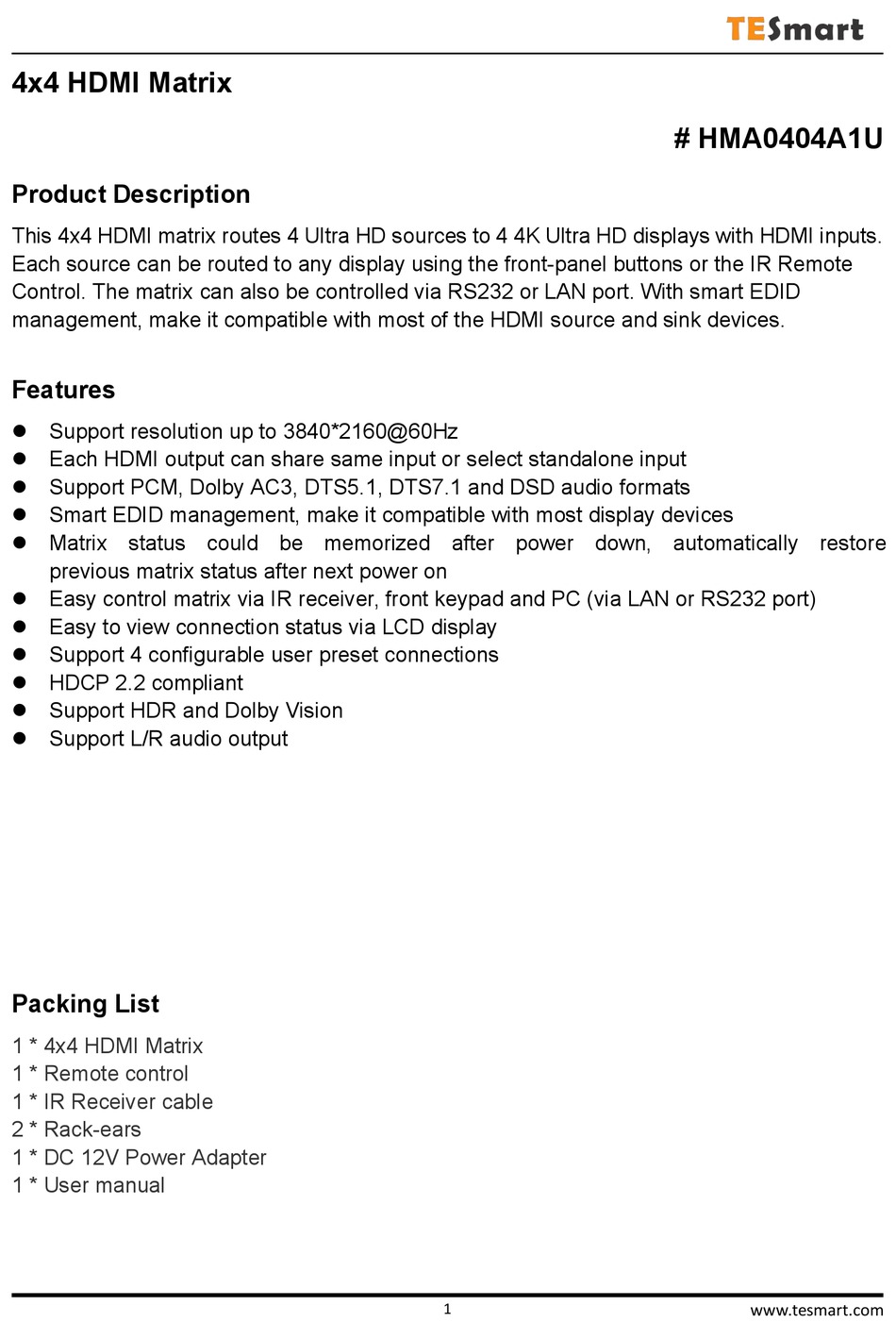

TESmart HMA0404A1U Quick Start Manual

4x4 HDMI Matrix
# HMA0404A1U
Product Description
This 4x4 HDMI matrix routes 4 Ultra HD sources to 4 4K Ultra HD displays with HDMI inputs.
Each source can be routed to any display using the front-panel buttons or the IR Remote
Control. The matrix can also be controlled via RS232 or LAN port. With smart EDID
management, make it compatible with most of the HDMI source and sink devices.
Features
 Support resolution up to 3840*2160@60Hz
 Each HDMI output can share same input or select standalone input
 Support PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio formats
 Smart EDID management, make it compatible with most display devices
 Matrix status could be memorized after power down, automatically restore
previous matrix status after next power on
 Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)
 Easy to view connection status via LCD display
 Support 4 configurable user preset connections
 HDCP 2.2 compliant
 Support HDR and Dolby Vision
 Support L/R audio output
Packing List
1 * 4x4 HDMI Matrix
1 * Remote control
1 * IR Receiver cable
2 * Rack-ears
1 * DC 12V Power Adapter
1 * User manual
