TESmart HMA1616A10 Quick Start Manual

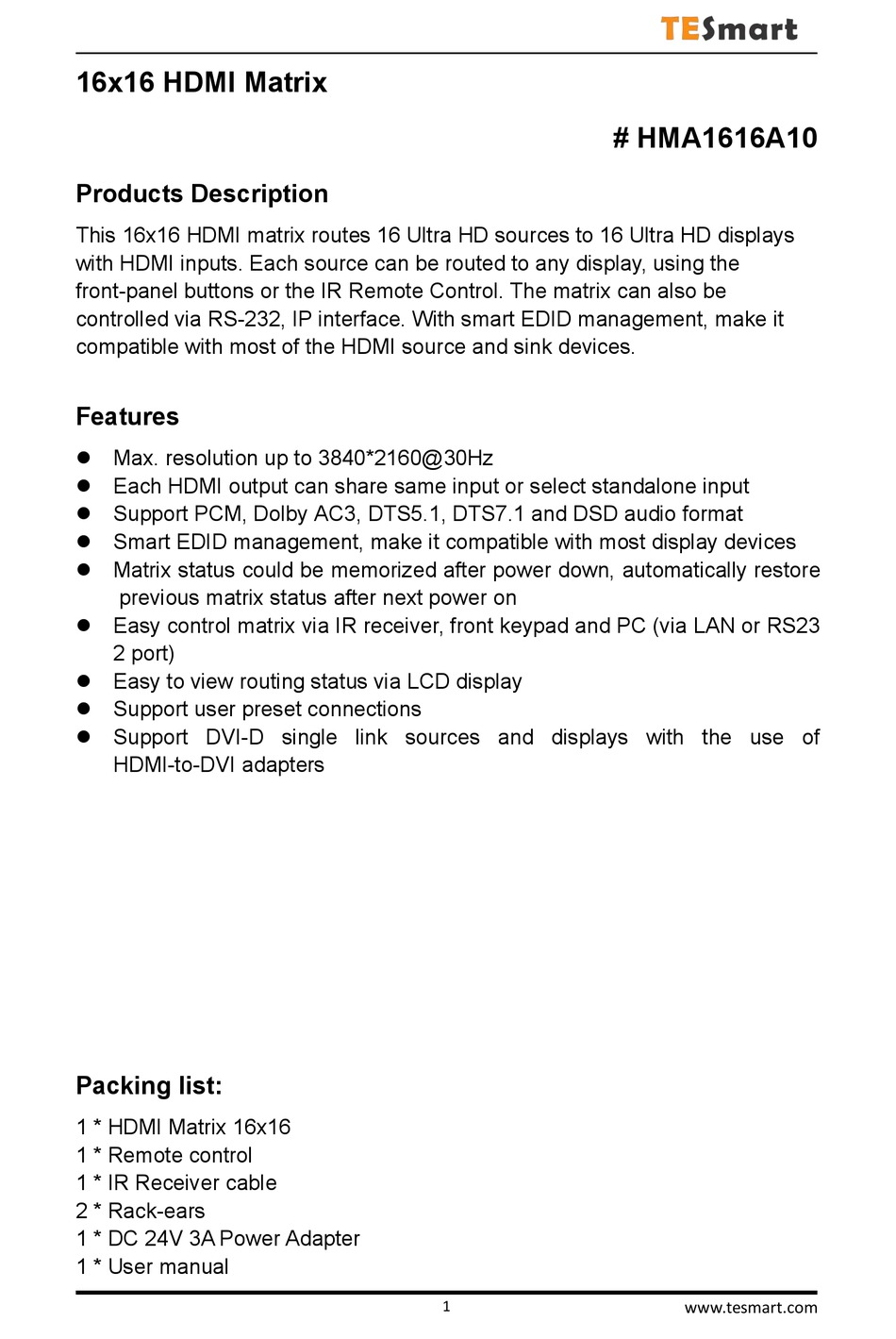

16x16 HDMI Matrix
Products Description
This 16x16 HDMI matrix routes 16 Ultra HD sources to 16 Ultra HD displays
with HDMI inputs. Each source can be routed to any display, using the
front-panel buttons or the IR Remote Control. The matrix can also be
controlled via RS-232, IP interface. With smart EDID management, make it
compatible with most of the HDMI source and sink devices.
Features
 Max. resolution up to 3840*2160@30Hz
 Each HDMI output can share same input or select standalone input
 Support PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format
 Smart EDID management, make it compatible with most display devices
 Matrix status could be memorized after power down, automatically restore
previous matrix status after next power on
 Easy control matrix via IR receiver, front keypad and PC (via LAN or RS23
2 port)
 Easy to view routing status via LCD display
 Support user preset connections
 Support DVI-D single link sources and displays with the use of
HDMI-to-DVI adapters
Packing list:
1 * HDMI Matrix 16x16
1 * Remote control
1 * IR Receiver cable
2 * Rack-ears
1 * DC 24V 3A Power Adapter
1 * User manual
