VTech T961NN50 Operation Manual

VTech T961NN50 Operation Manual

Universal wired thermostat
Hide thumbs Also See for T961NN50:
Table of Contents

Advertisement

Quick Links

Download this manual
T961NN50 Universal
Wired Thermostat
Operation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T961NN50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VTech T961NN50

Summary of Contents for VTech T961NN50

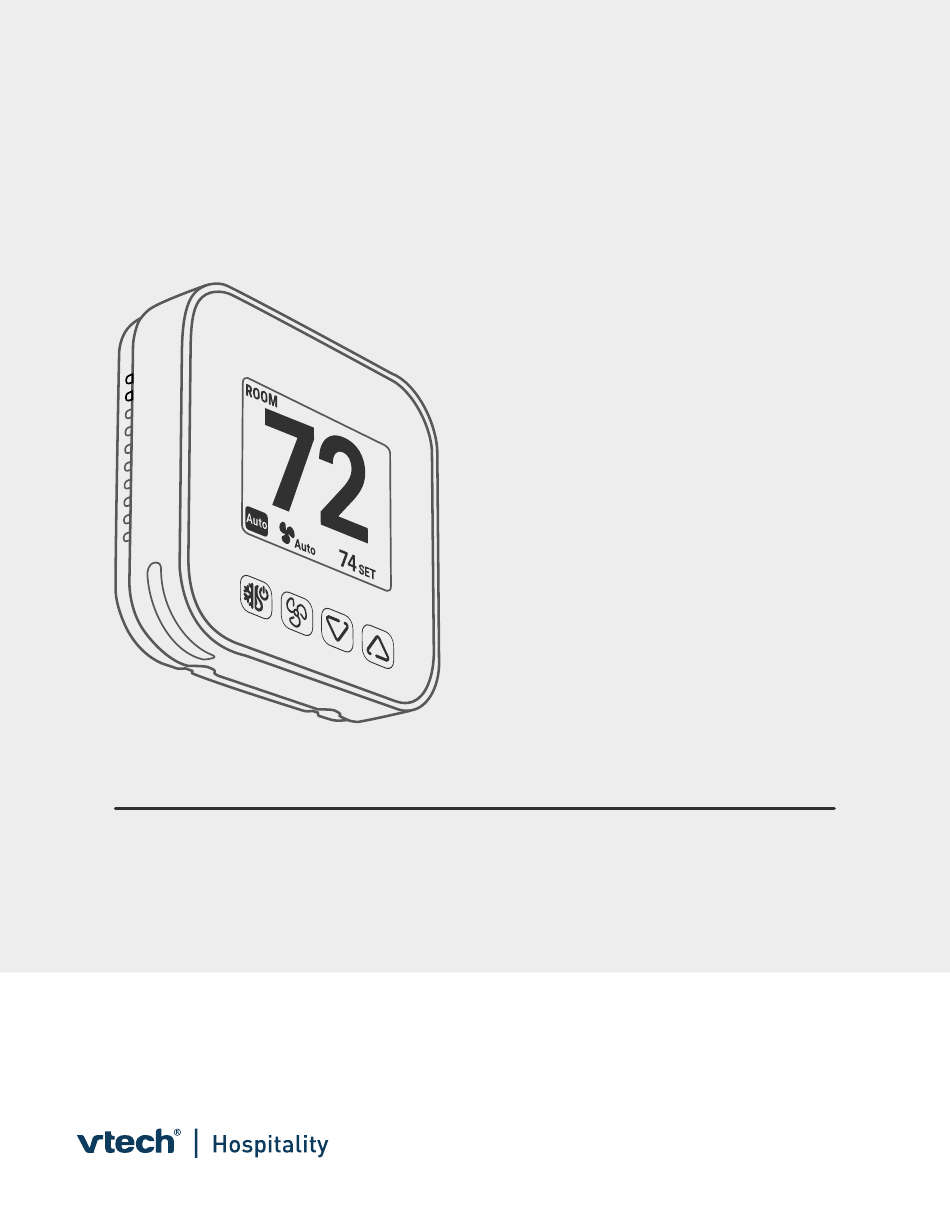

  • Page 1 T961NN50 Universal Wired Thermostat Operation Guide...

  • Page 2: Table Of Contents

    Restore Profile Defaults Report Error EC Tool Pro App Scan the QR code or click the link one of the App stores Support tstatsupport@vtechhotelphones.com Specifications are subject to change without notice. Copyright© 2024 VTech Communications, Inc. All rights reserved. 6/24. T961NN50_OperationGuide_18JUN2024...

  • Page 3: Thermostat Layout

    Thermostat Layout Schedule (Optional) Filter Change Reminder (Optional) Current Room Humidity Value (Optional) Current Room Temperature Value HVAC Mode Set Temperature Value Mode Down Note Only when the humidity, schedule, and filter change reminder features are enabled via the EC Tool Pro app, can the current room humidity, schedule, and filter change reminder be displayed on the screen.

  • Page 4: Operation

    Operation Wake up Screen There are two types of idle screens. If Always-on display is enabled via the EC Tool Pro app, the thermostat’s screen will go dim after 8 seconds of idleness and the idle screen can show the current HVAC mode, fan mode, room temperature, and the set temperature.

  • Page 5: Set Hvac Mode

    Operation Schedule If a daily schedule has been programmed via the EC Tool Pro app, you will see a schedule icon displayed on the screen. Adjusting any settings will override the existing schedule and a hold icon will be displayed until the next scheduled event.

  • Page 6: Set Fan Mode

    Operation Set HVAC Mode Note To quickly change the HVAC mode to OFF mode, press and hold the MODE button for 3 seconds. Set Fan Mode 1. When the screen is awake, tap FAN to cycle to the next available fan mode. 2.

  • Page 7: Switch Temperature Unit Between °F And °C

    Operation Set Fan Mode Fan Modes in Off Mode Fan Mode Fan Status Off — Fan is turned off. Fan modes available in 1 fan speed setting Fan is turned on. Off — Fan is turned off. Fan modes available in 2 Fan Speed setting Continuous low fan High Continuous high fan...

  • Page 8: Adjust Set Temperature

    Operation Adjust Set Temperature When the screen is awake, tap up or down button to adjust the set temperature to the next available degree by +/-0.5°C or +/-1°F. Set your desired temperature beyond range by override mode The thermostat can be programmed to limit the maximum and minimum temperature settings that are available to occupants.

  • Page 9: Restore Profile Defaults

    EC Tool Pro app. Report Error If you see an alert with E01-E05 error codes displayed on the thermostat screen, please refer to T961NN50 Configuration Guide for error code definitions and troubleshooting tips. When errors are resolved, the alert will be cleared and the system will return to normal operation.
