Summary of Contents for Wenglor P1XD113

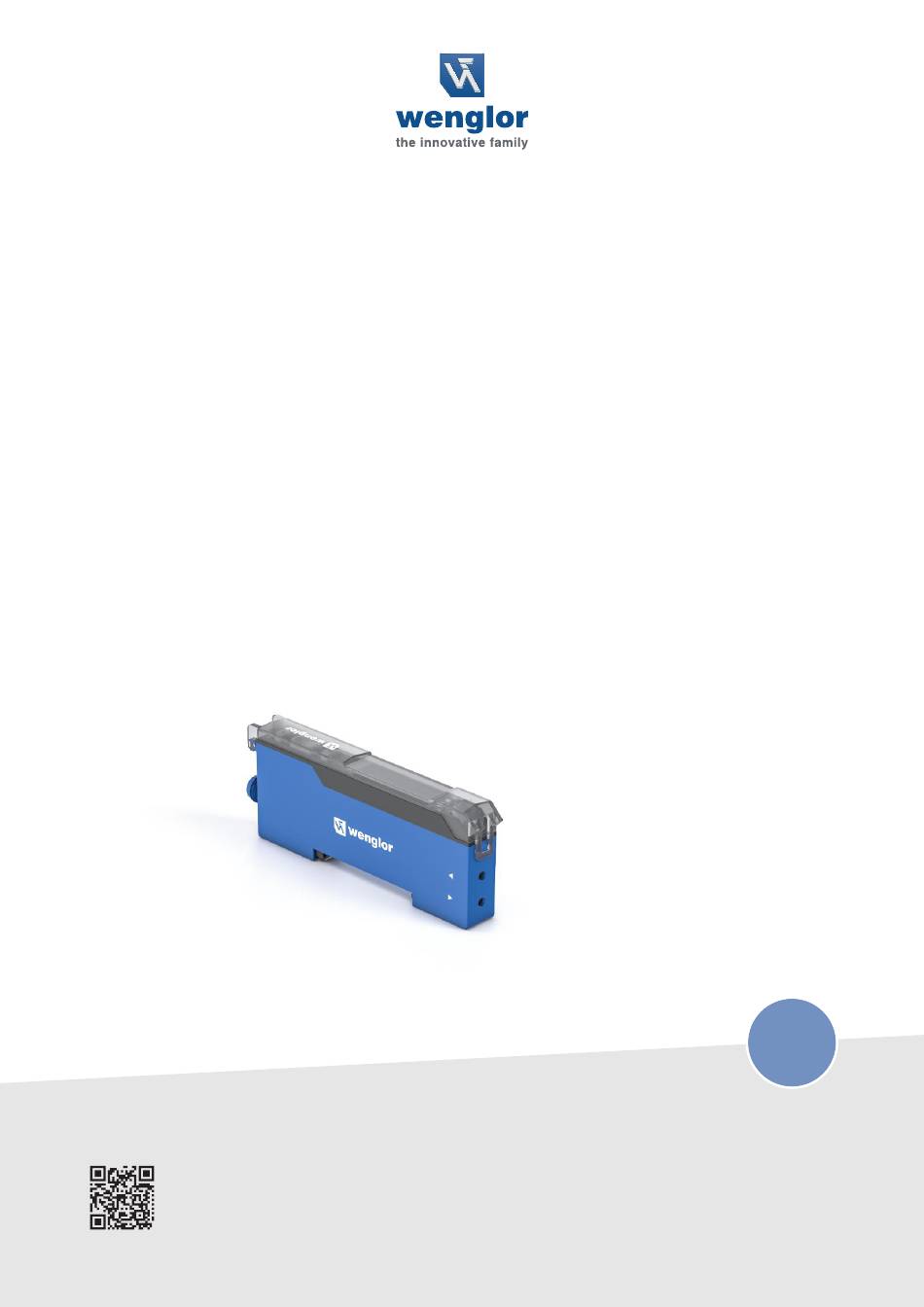

- Page 1 Operating Instructions P1XD113 Fiber-optic amplifier Translation of the original operating instructions Subject to change without notice Available as PDF file only Version 2.0...
-
Page 2: Table Of Contents
Input Functions ................................ 23 7.3 Switching Point Functions (SSC1/SSC2)......................... 23 7.4 Condition Monitoring/Process Data..........................26 7.4.1 Status Message Function ............................26 7.4.2 Warning/Error Output Function ..........................26 7.4.3 Simulation Functions .............................. 26 Table of Contents | P1XD113 ‒ Fiber-optic amplifier... - Page 3 8 IO-Link .................................... 28 9 NFC ....................................29 10 wTeach2 Configuration Software..........................30 11 Maintenance Instructions ............................. 31 12 Proper Disposal ................................32 13 Declarations of Conformity............................33 Table of Contents | P1XD113 ‒ Fiber-optic amplifier...
-
Page 4: General
The safety precautions and warnings are laid out in accordance with the following principle: SIGNAL WORD Type and source of danger! Possible consequences in the event that the hazard is disregarded. à Measures for averting the hazard. 1 ‒ General | P1XD113 ‒ Fiber-optic amplifier... -
Page 5: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating in- structions unless wenglor was verifiably aware of such errors at the point in time at which the operat- ing instructions were prepared. -
Page 6: Copyrights
• All rights are reserved by wenglor. • Commercial reproduction or any other commercial use of the provided content and information, in particular graphics and images, is not permitted without previous written consent from wenglor. 1 ‒ General | P1XD113 ‒ Fiber-optic amplifier... -
Page 7: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may be used only with accessories supplied or approved by wenglor, or in combination with approved products. A list of approved accessories and combination products can be found at www.wenglor.com on the product detail page. -
Page 8: Personnel Qualifications
Read the operating instructions carefully before using the product. Protect the sensor against contamination and mechanical influences. Approvals and Protection Class IND. CONT. EQ 72HL / E189727 For use in class 2 circuits 2 ‒ For Your Safety | P1XD113 ‒ Fiber-optic amplifier... -
Page 9: Technical Data
Housing Material Plastic, PC Plastic, ABS Plastic, PA Degree of Protection IP50 Connection M8 × 1; 4-pin DIN-Rail mounting 35 mm Output Functions Output Adjustable Parameters Output Push-pull Circuit inactive Error output 3 ‒ Technical Data | P1XD113 ‒ Fiber-optic amplifier... -
Page 10: Housing Dimensions
Emitted light Sensor localization Adjustable sensor mode Teach mode Housing Dimensions Dimensions specified in mm (1 mm = 0.03937") Control Panel 5a = switching status display, A1 6a = switching status display, A2 3 ‒ Technical Data | P1XD113 ‒ Fiber-optic amplifier... -
Page 11: Complementary Products
21 = mode button Complementary Products wenglor offers you the right connection and mounting technology as well as other accessories for your product. You can find this at www.wenglor.com on the product details page at the bottom. Scope of Delivery •... -
Page 12: Transport And Storage
• Protect the product against exposure to direct sunlight. NOTICE Risk of property damage in case of improper storage! The product may be damaged. à Storage instructions must be complied with. 4 ‒ Transport and Storage | P1XD113 ‒ Fiber-optic amplifier... -
Page 13: Installation And Electrical Connection
Mounting on a DIN Rail Mounting on a DIN rail is tool-free. Hook the sensor onto the DIN rail and push the sensor down until it clicks into place through the integrated spring. 5 ‒ Installation and Electrical Connection | P1XD113 ‒ Fiber-optic amplifier... -
Page 14: Removal
This allows you to release the sensor up- wards. 5.1.3 Side Mounting (Using Optional Accessories) The Z1XZ001 adapter allows the sensor to be mounted on a table or on the side. 5 ‒ Installation and Electrical Connection | P1XD113 ‒ Fiber-optic amplifier... -
Page 15: Connecting Plastic Fiber-Optic Cables
• Before first use, shorten the plastic fiber-optic cable once with the SW cutting tool or cut it to the de- sired length. • Open the cover and unlock the rocker arm. • Insert the fiber-optic cable into the openings provided as far as it will go. 5 ‒ Installation and Electrical Connection | P1XD113 ‒ Fiber-optic amplifier... -
Page 16: Electrical Connection
Risk of personal injury or property damage due to electric current. Voltage-conducting parts may cause personal injury or damage to equipment. à The electric device may be connected by appropriately qualified personnel only. 5 ‒ Installation and Electrical Connection | P1XD113 ‒ Fiber-optic amplifier... -
Page 17: Diagnosis
LEDs for switching status indicators A1 and A2 are not work- Switching status indica- Switching output active tor A1 Switching output inactive Switching status indica- Switching output active tor A2 Switching output inactive Localization Localization function active 5 ‒ Installation and Electrical Connection | P1XD113 ‒ Fiber-optic amplifier... -
Page 18: Troubleshooting
1. Shut down the machine. 2. Analyze and eliminate the cause of error with the aid of the diagnostics information. 3. If the error cannot be eliminated, please contact wenglor’s support department. 4. Do not operate in case of indeterminate malfunctioning. -
Page 19: Settings
2. Press and hold the Mode button for 2 seconds until the NO/NC indicator starts to flash. 3. Pressing the Mode button again briefly changes the display from NO to NC or vice versa. 4. After 5 seconds, the selected setting is applied to the selected switching output. 6 ‒ Settings | P1XD113 ‒ Fiber-optic amplifier... -
Page 20: Activation Of Alignment Tool
A bar graph is now shown on the display. This together with a digit value shows the current signal strength. The more bars displayed, the better the signal and vice versa. – Light pulses The faster the emitter emits light pulses, the higher the signal strength and vice versa. 6 ‒ Settings | P1XD113 ‒ Fiber-optic amplifier... -
Page 21: Function Description
Alignment tool Can be activated by briefly pressing the mode button for 30 Deactivated seconds 7 ‒ Function Description | P1XD113 ‒ Fiber-optic amplifier... -
Page 22: Input/Output Functions (E/A)
(reference) and the output. When the sensor is switched, the output is connected to the plus pole via an elec- tronic switch. The switching signal is maintained when a pull- down resistor is connected. 7 ‒ Function Description | P1XD113 ‒ Fiber-optic amplifier... -
Page 23: Input Functions
SSC1 is assigned to output A1 and SSC2 is assigned to output A2. Function Possible settings Default Teach-in Starts the teach-in process. Teach-in mode Normal Teach-In Sensor Teach-in distance Object Switching point Background Teach-In 7 ‒ Function Description | P1XD113 ‒ Fiber-optic amplifier... - Page 24 The time interval for readjustment can be set on the inter- face. Light intensity Commencing contamination Teach-in The switching threshold is readjusted process Switching continuously in order that the distance threshold between signal and threshold stays the same. Window Teach-In 7 ‒ Function Description | P1XD113 ‒ Fiber-optic amplifier...
- Page 25 10…20,000 Cycles Jump pulse duration In teach-in mode, jump detection 0 = hold The output remains active until the next jump in the opposite direction has been detected. 7 ‒ Function Description | P1XD113 ‒ Fiber-optic amplifier...
-
Page 26: Condition Monitoring/Process Data
If a measured value is specified, the sensor behaves as if the specified measured value corresponds to the actual measured value. This means that the behavior of the outputs and status messages is simulated according to the specified measured value. 7 ‒ Function Description | P1XD113 ‒ Fiber-optic amplifier... - Page 27 SSC2 Test According to the measured value According to mea- sured value Status messages test Tests the individual status messages According to measured value according to the measured value 7 ‒ Function Description | P1XD113 ‒ Fiber-optic amplifier...
-
Page 28: Io-Link
To this end, the sensor is connected to a suitable IO-Link master (see product detail page/complementary products). The interface protocol and the IODD can be found at www.wenglor.com in the download area for the respective product. 8 ‒ IO-Link | P1XD113 ‒ Fiber-optic amplifier... -
Page 29: Nfc
“weCon” app. Process data cannot be read out via NFC but are available via IO-Link. You can download the wenglor app free of charge from the Google Play Store or the App Store. Down- load the app and follow the installation instructions. -
Page 30: Wteach2 Configuration Software
For information on installing and connecting the wTeach2 software and its structure, as well as information on the general functions, see the wTeach2 operating instructions. They can be found online in the down- load area at www.wenglor.com under order number DNNF005. 10 ‒ wTeach2 Configuration Software | P1XD113 ‒ Fiber-optic amplifier... -
Page 31: Maintenance Instructions
Cleaning and inspection of the plug connections at regular intervals are advisable. Do not clean the product with solvents or cleaning agents that could damage the product. The product must be protected against contamination during initial start-up. 11 ‒ Maintenance Instructions | P1XD113 ‒ Fiber-optic amplifier... -
Page 32: Proper Disposal
Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 12 ‒ Proper Disposal | P1XD113 ‒ Fiber-optic amplifier... -
Page 33: Declarations Of Conformity
Declarations of Conformity Declarations of conformity can be found on our website at www.wenglor.com in the product’s separate download area. 13 ‒ Declarations of Conformity | P1XD113 ‒ Fiber-optic amplifier...
