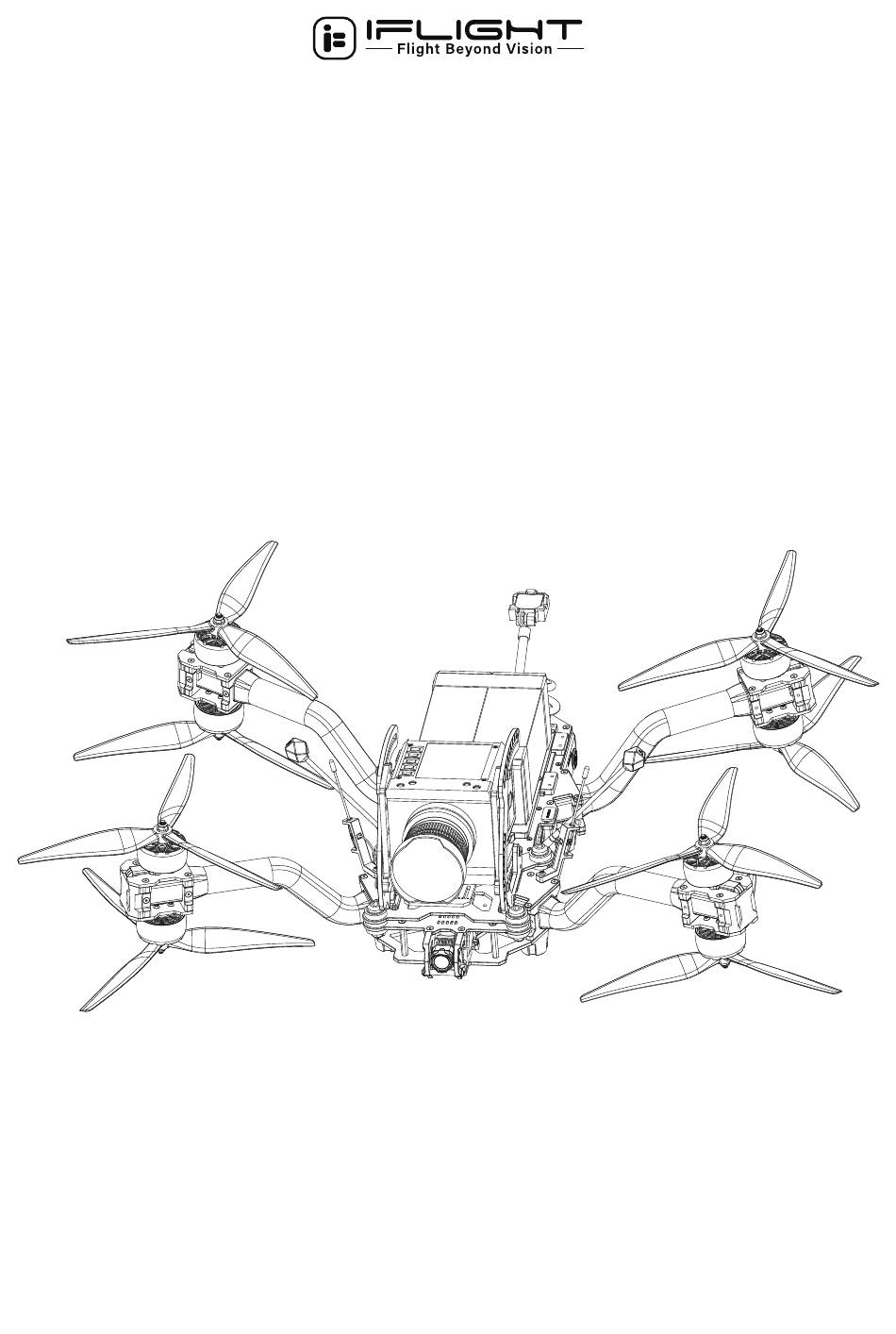

- Page 1 Taurus X8 Pro Max Quick Start Guide 快速入门指南 V1.0...
-
Page 2: Table Of Contents
Contents Ⅰ. Safety Guidelines and Disclaimer Ⅱ. Overview Ⅲ. FPV Goggles Binding Instruction Ⅳ. Remote Controller Binding Instruction Ⅴ. Betaflight Setup Ⅵ. Propellers Installation Diagram Ⅶ. Pre-Flight Check Ⅷ. Quick Release Battery System Instruction Ⅸ. Dual Power Switch Instruction Ⅹ. Takeoff/Landing Procedure Ⅺ. -
Page 3: Ⅰ. Safety Guidelines And Disclaimer
2. This product is not a toy and requires some basic knowledge to control, so please pay special attention to the warnings and cautions before you start using it. iFlight reserves the right to update this Disclaimer. 3. By using this product, you are deemed to have understood, acknowledged and accepted all of the terms and conditions of this document and you undertake to be responsible for your own actions and all consequences arising therefrom. -
Page 4: Ⅱ. Overview
With its integrated design and aerodynamic low-wind-resistance struc- ture, Taurus X8 Pro Max features remarkable power and flight time, providing a professional and stable flying equipment for filmmakers. With a payload capacity of 3.5 kg, Taurus X8 Pro... -
Page 5: Ⅲ. Fpv Goggles Binding Instruction
Please operate with caution to ensure safety. 1. Air Unit and Goggles Activation: Power on Taurus X8 Pro Max , connect the corresponding device to the computer using the USB-C port and then run DJI Assistant 2 (Consumer Drones Series) for activation and firmware upgrade. -
Page 6: Ⅳ. Remote Controller Binding Instruction
Ⅳ. Remote Controller Binding Instruction 1.ELRS Protocal:Transmitter Binding Methods ELRS Binding Method1: Traditional Binding Procedure (Example: iFlight ExpressLRS 900TX) Plug and unplug the USB port for three times: Power on and off the aircraft for 3 times , plug and unplug the USB port for... - Page 7 [Note] 1. Be quick with this process and set the receiver in binding mode first. 2. The distance between the receiver and transmitter should be more than 1m during the process. 3. After the binding process is completed, it is recommended to re-power receiver and transmitter. 4.
-
Page 8: Ⅴ. Betaflight Setup
2. TBS Protocal：Transmitter Binding Method Power on the aircraft and after the aircraft completes self-check, use tweezers to short press the TBS Crossfire receiver BOOT button. If the green light flashes, it means binding mode activates. Enter the TBS Crossfire transmitter or TX module settings page, scroll down to [BIND], press the button to enter. - Page 9 b. Channel Map Setting Receiver Channel Map Setting: “AETR1234” Mode 1 Throttle, “TAER1234” Mode 2 Throttle c. Mode Switch The default mode is Angle, and customers can also switch to other modes. ARM: ARM/DISARM channel switch for arm and disarm the aircraft, default factory setting is AUX1, low range for disarm, high range for arm, When the icon is lit, it indicates arm.
-
Page 10: Ⅵ. Propellers Installation Diagram
Ⅵ. Propellers lnstallation Diagram Identify CW & CCW propellers and install them correctly on the aircraft. CW Propellers without the letter "R" , CCW Propellers with the letter "R”. Note ◆Before installing the propellers, please make sure the aircraft is powered off. ◆Handle propellers carefully to avoid accidental cuts. -
Page 11: Ⅷ. Quick Release Battery System Instruction
Ⅷ. Quick Release Battery System Instruction Diagram showing how to attach the battery quick release plate to the aircraft. Align the quick release plate with the slot on the frame and gently push it into the rail. Insert the front section of the quick release plate into the locking structure to complete the assembly. -
Page 12: Ⅸ. Dual Power Switch Instruction
Ⅸ. Dual Power Switch Instruction 1. Dual Power Switch Function: The dual power switch separates the power switch for the aircraft and the power switch for the cinema camera, allowing independent power supply to the aircraft and the cinema camera. This design is beneficial for turning off the aircraft's power while viewing or setting up the cinema camera, preventing the internal equipment of the aircraft from overheating and avoiding potential safety hazards. - Page 13 （2）Connect the battery power cable to the main power port(XT90). （3）Find the camera BEC power switch on the right side of the aircraft's tail. Short press once, then long press for 3 seconds to turn the power on or off.
- Page 14 3. ESC Power Switch Usage Steps: （1）Connect the battery power cable to the main power port(XT90). (2) Find the ESC power switch on the left side of the aircraft's tail. Short press once, then long press for 3 seconds to turn the power on or off (battery power indicator next to the power switch, Four lights on indicate sufficient battery power).
-
Page 15: Ⅹ. Takeoff/Landing Procedure
Ⅹ. Takeoff/Landing Procedure Takeoff Procedure: Start by pushing the throttle to the lowest position, then gradually increase it to lift the aircraft approximately 10-20 cm off the ground. Once the aircraft's attitude is stable, throttle down and disarm the remote controller. Put on FPV goggles or face the monitor (such as a handheld monitor), arm the remote controller and slowly increase the throttle to smoothly ascend. -
Page 16: Ⅺ. Landing Light
Ⅺ. Landing Light The landing light switch is located on the right side of the aircraft's midsection. Ⅻ. GPS Rescue Mode 1. The GPS mount can be unfolded and folded as shown in the diagram. Folded... - Page 17 Unfolded When setting up GPS, please connect the aircraft battery to ensure that GPS can be set up properly in Betaflight 1. The GPS is preset on this aircraft. Refer to the [GPS Rescue Mode Precautions]for settings. 2. Rescue Operation： ①...
-
Page 18: Ⅻⅰ. Troubleshooting Guide
ⅫⅠ. Troubleshooting Guide 1. Issue： GPS Rescue Mode not Triggering. Possible reason： Flight distance has not exceeded 100 meters. Solution： Fly in a straight line for at least 100 meters past your descent distance, make sure the home arrow is pointing at your direction to confirm GPS functionality. 2. - Page 19 *2：DJI Assistant 2 (Consumer Drones Series) supports the consumer drones series products activation and firmware upgrade. Please download at this link: https://www.dji.com/av- ata/downloads. IFLIGHT INNOVATION TECHNOLOGY LIMITED TEL: +86752-3866-695 Email: support@iflight.com Website: www.iflight.com ADD: 6th Floor, Building B2, Galaxy IMC, Beixin Road,...
