Weltem AmeriCool WPH-3000P Owner's Manual

Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.
Portable Heat Pump
Description
AmeriCool Portable Heat Pump feature spot cooling/heating
for large areas where cooling/heating of the entire area is
not practical. A dedicated spot cooling/heating thermostat
controls the unit in this application.
This unit can also be used in smaller areas for room cooling/
heating. A control panel provides ease of use and contains
a self-diagnostic function and display, showing operating
modes, room and set temperatures, and faults.
If an abnormal operation occurs, a visual display of the fault
is shown. Caster wheels are included for easy portability.
Suitable applications include: a factory or work place, indus-
trial kitchen, computer room, emergency cooling/heating,
supplement cooling / heating etc.
Unpacking
After unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifications
Model No. Power Supply Ph-V-Hz
Single Phase,
WPH-3000P
Power Cord Gauge
Model No.
WPH-3000P
Cooling Capacity
13,200(Cooling)
115V, 60Hz
14,300(Heating)
Power Cord
AWG
12
Power Consump-
Btu/h tion Watts
1.08kW(Cooling)
1.01kW(Heatling)
Length ft
6
1
Owner's Manual
WPH-3000P
WPH-3000P

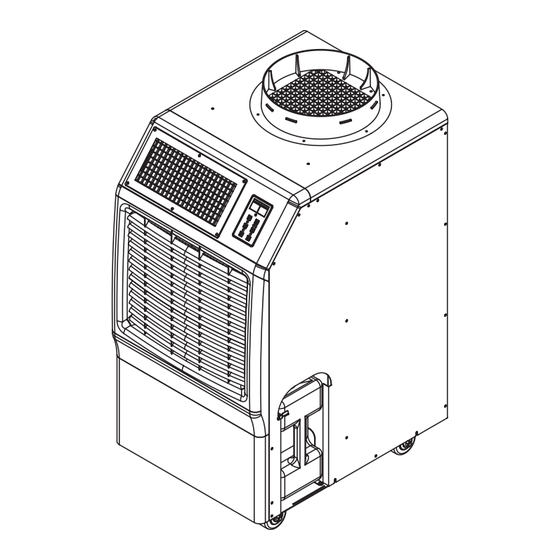

Figure 1
Rated Current
Amps
9.79 A (Cooling)
9.3 A(Heatling)
Dimensions
W x D x H - in. (mm)
20.6x 26.9 x 41.1
(523x 685 x 1044)
EER Btu/
Wh
11.0
