Weltem AMERICOOL WPH-3000 Owner's Manual

Portable heat pump
Hide thumbs Also See for AMERICOOL WPH-3000:
Table of Contents

Advertisement

Quick Links

Download this manual
WPC-3000, WPC-4000, WPC-5000
Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, oper-
ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and / or property damage! Retain instructions for future reference.
Portable Heat Pump
Descripti on
AmeriCool by Weltem Portable Heat Pump feature spot
cooling/heati ng for large areas where cooling/heati ng of the
enti re area is not practi cal. A dedicated spot cooling/heati ng
thermostat controls the unit in this applicati on.
This unit can also be used in smaller areas for room cooling/
heati ng. A control panel provides ease of use and contains
a self-diagnosti c functi on and display, showing operati ng
modes, room and set temperatures, and faults.
If an abnormal operati on occurs, a visual display of the fault
is shown. Caster wheels are included for easy portability.
Suitable applicati ons include: a factory or work place, indus-
trial kitchen, computer room, emergency cooling/heati ng,
outdoor event, supplement cooling / heati ng etc.
Unpacking
Aft er unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
Specifi cati ons
Model No.
Power Supply Ph-V-Hz
Single Phase,
WPH-3000
115V, 60Hz
Power Cord Gauge
Model No.
WPH-3000
Cooling Capacity
Btu/h
13,200(Cooling)
14,300(Heati ng)
Power Cord
AWG
Length ft
12
by
Power Consump-
ti on Watt s
0.94kW(Cooling)
0.95kW(Heatling)
6
1
Owner's Manual
WPH-3000
WPH-3000

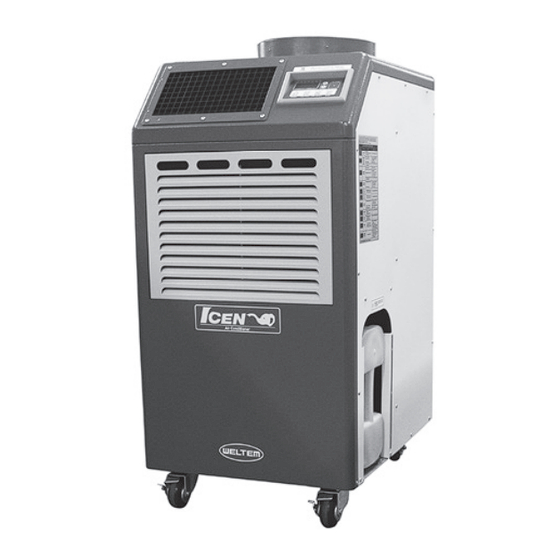

Figure 1
Rated Current
Amps
8.58A (Cooling)
8.53A(Heatling)
Dimensions
W x D x H - in. (mm)
20.6x 26.4 x 41.1
(523x 670 x 1044)
EER Btu/
Wh
11.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMERICOOL WPH-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Weltem AMERICOOL WPH-3000

Summary of Contents for Weltem AMERICOOL WPH-3000

  • Page 1 / or property damage! Retain instructions for future reference. Portable Heat Pump Descripti on AmeriCool by Weltem Portable Heat Pump feature spot cooling/heati ng for large areas where cooling/heati ng of the enti re area is not practi cal. A dedicated spot cooling/heati ng thermostat controls the unit in this applicati on.
  • Page 2 Washable filters, °F( °C) display, Off-timer, Auto fan speed option. Thank you for selecting this Weltem Portable Heat pump. It provides you with spot cool- ing/heating for large areas where cooling/heating of an entire area is not practical or possible.

  • Page 3: General Safety Information

    WPH-3000 Owner’s Manual General Safety Information Please read this manual carefully for instructions on correct installation and usage. Please read all safeguards. 1. Transport and store the unit in an upright position only. Leave unit in an upright position for at least 3 hours before first use.
  • Page 4 WPH-3000 Owner’s Manual DO NOT operate a unit with a damaged power cord. 19. The filters must be used with the product at all times. When the filters are removed for clean- ing, always ensure that the unit has been turned off and unplugged from the electrical outlet. 20.
  • Page 5 WPH-3000 Owner’s Manual Assembly (WPH-3000) Component parts Top fan exhaust flange Display / Control board Evaporator / filter Condenser / filter Guide bar for condensate water tank Condensate water tank (Water level is Electrical access panel sensed, and the unit opera on is stopped Power cord holder when tank is full.

  • Page 6: Installation

    Owner’s Manual WPH-3000 Installation WARNINGS REGARDING PROPER LOCATION FOR INSTALLATION Do not use the unit in explosive environments or in areas where flammable gas leakage may occur. Do not use the unit in areas where it will be exposed to rain or water. Do not use the unit in a corrosive atmosphere.

  • Page 7: Operation

    WPH-3000 Owner’s Manual Operation CONTROL PANEL CURRENT TARGET TEMP TEMP POWER AUTO MANUAL AUTO COOL HEAT POWER FAN SPEED TEMP SELECT MODE Figure 9 When power is connected POWER lamp will be on. . POWER BUTTON - Activates unit when POWER BUTTON is pressed for 2 seconds. If POWER BUTTON is pressed for 2 seconds during operation, unit stops.
  • Page 8 Owner’s Manual WPH-3000 . MODE - Choose cooling, heating or auto by pressing this button. When all lamps are off, it is blower mode so only fan operates without operating compressor. - When AUTO lamp is on, it activates cooling or heating automatically according to TARGET TEMP. It activates cooling when TARGET TEMP is lower than CURRENT TEMP and will change to activate heating when CURRENT TEMP reach over the TARGET TEMP by 6°F( 3°C) and change to activate cooling when CURRENT TEMP reach over the TARGET TEMP by 6°F( 3°C).

  • Page 9: Maintenance

    WPH-3000 Owner’s Manual Maintenance FILTER CLEANING (See Figures 10 and 11) There are two filters in the unit. The evaporator filter is located at the front of the unit. The condenser filter is located at the back of the unit. 1.

  • Page 10: Spring Replacement

    Owner’s Manual WPH-3000 Maintenance (Continued) – To ensure your product is covered by warranty, the complete faulty product along with your original purchase receipt must be provided at the place of purchase. Product Portable Air Conditioner Customer: Please read and keep this Model No.
  • Page 11 The alarm light is activated if abnormal operation occurs, and a code is displayed on the control panel. WPH-3000 Owner’s Manual The compressor and condenser fan motor will stop operating. The evaporator fan will continue to run for three minutes. If the fault is rectified within 3 minutes, the unit resumes operation. If the fault persists for more than 3 minutes, the evaporator fan also stops.
  • Page 12 temperature Contact a qualified service agent loose or broken connection sensor value Abnormal The alarm light is activated if abnormal operation occurs, and a code is displayed on the control panel. Inlet temperature sensor has a temperature Contact a qualified service agent The compressor and condenser fan motor will stop operating.

  • Page 13: Wiring Diagram

    WPH-3000 Owner’s Manual Wiring Diagram WPH-3/4/5 V1.14 Power 1P AC 115V-60Hz 1P AC 208-230V - 50/60Hz Figure 13 - WPH-3000 1. 재질 : 은무데드롱 25미크론 2. 인쇄방법: 씨링인쇄 3. 인쇄색상: 흑색 1도 4. 표면처리: 라미네이팅(OPP코팅) 5. 인쇄기준 : 도면 및 설계 제공 필름 6 외곽의...

  • Page 14: Troubleshooting Chart

    WPH-3000 Owner’s Manual Troubleshooting chart Symptom Possible Cause(s) Corrective Action High water level in con- 1. Remove blockage from drain densate tank hose Water leakage 2. Remove any object stuck under- neath of the black panel under the water tank 1.

  • Page 15: Shipping List

    • (1) Owner’s Manual • (1) POWER CORD HOLDER • (1) EXHAUST FLANGE OBTAINING SERVICE AmeriCool by Weltem Portable Heat Pump If the requires Service: 1. Use the TROUBLESHOOTING section in this manual to eliminate obvious causes. 2. Verify there are no circuit breakers tripped.

  • Page 16: Limited Warranty

    TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY, AS LIMITED HEREIN, SHALL BE IN LIEU OF AND EXCLUSIVE OF ALL OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIED, ON THE PART OF AMERICOOL INC., OR WELTEM CO.,LTD. WHETHER ARISING FROM LAW, COURSE OF DEALING, US- AGE OF TRADE, OR OTHERWISE, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANT-ABILITY OR FITNESS OF A PARTICULAR PURP OSE OR ANY LIABILITY FOR COMMERCIAL LOSSES BASED UPON NEGLIGENCE OR MANUFACTURER’S STRICT LIABILITY.
