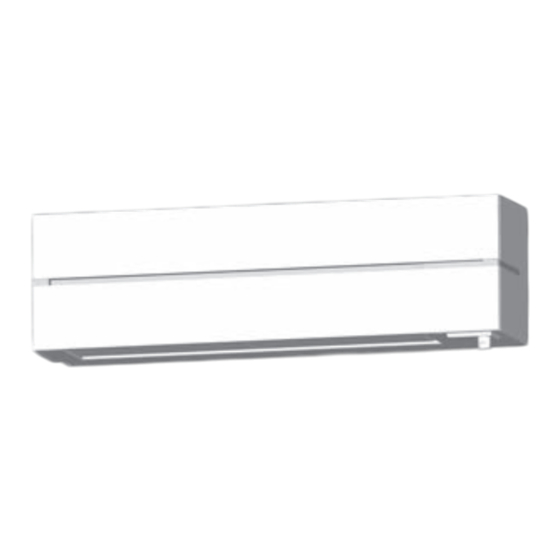

SPLIT-TYPE AIR CONDITIONERS
MSZ-LN25VG2V MSZ-LN35VG2V MSZ-LN50VG2V MSZ-LN60VG2V
INDOOR UNIT
MSZ-LN25VG2R MSZ-LN35VG2R MSZ-LN50VG2R MSZ-LN60VG2R
MSZ-LN25VG2B MSZ-LN35VG2B MSZ-LN50VG2B MSZ-LN60VG2B
OPERATING INSTRUCTIONS
• To use this unit correctly and safely, be sure to read these operating
instructions before use.
For user
English
Advertisement
Table of Contents
Related Manuals for Mitsubishi Electric MSZ-LN25VG2V
Summary of Contents for Mitsubishi Electric MSZ-LN25VG2V
- Page 1 SPLIT-TYPE AIR CONDITIONERS MSZ-LN25VG2V MSZ-LN35VG2V MSZ-LN50VG2V MSZ-LN60VG2V INDOOR UNIT MSZ-LN25VG2R MSZ-LN35VG2R MSZ-LN50VG2R MSZ-LN60VG2R MSZ-LN25VG2B MSZ-LN35VG2B MSZ-LN50VG2B MSZ-LN60VG2B For user OPERATING INSTRUCTIONS English • To use this unit correctly and safely, be sure to read these operating instructions before use.
- Page 2 ● OPERATING INSTRUCTIONS ● ONTENTS I SAFETY PRECAUTIONS I NAME OF EACH PART I PREPARATION BEFORE OPERATION I I-SEE OPERATION I SELECTING OPERATION MODES I FAN SPEED AND AIRFLOW DIRECTION ADJUSTMENT I AIRFLOW CONTROL MODE I ABSENCE DETECTION I I-SAVE OPERATION I ECONO COOL OPERATION I NIGHT MODE OPERATION I AIR PURIFYING OPERATION...
-
Page 3: Safety Precautions
AFETY PRECAUTIONS The unit should not be installed, relocated, disassembled, altered, Do not pull the power cord. or repaired by the user. • This may cause a portion of the core wire to break, which may cause • An improperly handled air conditioner may cause fi re, electric shock, overheating or fi... -
Page 4: For Installation
● OPERATING INSTRUCTIONS ● AFETY PRECAUTIONS For installation For Wi-Fi interface WARNING WARNING (Improper handling may have serious consequences, including serious Consult your dealer for installing the air conditioner. injury or death.) • It should not be installed by the user since installation requires specialized This appliance can be used by children aged from 8 years and above knowledge and skills. -
Page 5: Indoor Unit
AME OF EACH PART Indoor unit Remote controller Air purifying Battery replacement indicator Signal transmitting Page 5 Air inlet device section Page 14 Front panel Operation dis- Distance of signal : Wi-Fi interface play section About 6 m Page 15 Air fi... -
Page 6: Preparation Before Operation
● OPERATING INSTRUCTIONS ● REPARATION BEFORE OPERATION Before operation: Insert the power supply plug into the power outlet and/or Setting the installation position turn the breaker on. Be sure to set the remote controller in accordance with the installed position of the indoor unit. - Page 7 -SEE OPERATION In the i-see control mode, the room temperature is controlled based on the sensible temperature. Press during COOL, DRY, HEAT and AUTO mode to activate the i-see control mode. • Press gently using a thin instrument. • lights. (Operation display section) •...
-
Page 8: Selecting Operation Modes
● OPERATING INSTRUCTIONS ● ELECTING OPERATION MODES AUTO mode (Auto change over) The unit selects the operation mode according to the difference between the room temperature and the set temperature. During AUTO mode, the unit changes mode (COOL↔HEAT) when the room temperature is about 2°C away from the set temperature for more than 15 minutes. - Page 9 AN SPEED AND AIRFLOW DIRECTION ADJUSTMENT Up-down Airflow direction Press to select airfl ow direction. Each press changes airfl ow direction in the following order: (AUTO) (SWING) (AUTO) ..The vane is set to the most effi cient airfl ow direction. COOL/ DRY/FAN: horizontal position.
- Page 10 ● OPERATING INSTRUCTIONS ● IRFLOW CONTROL MODE BSENCE DETECTION Airfl ow Control mode offers air conditioning according to a location of This function automatically changes the operation to No occupancy an occupant in a room detected by i-see Sensor. energy-saving mode or No occupancy Auto-OFF mode when nobody is in the room.
-
Page 11: Save Operation
SAVE OPERATION CONO COOL OPERATION Swing airfl ow (change of airfl ow) makes you feel cooler than station- ary airfl ow. The set temperature and the airfl ow direction are automatically changed by the microprocessor. It is possible to perform cooling operation with A simplifi... - Page 12 ● OPERATING INSTRUCTIONS ● IGHT MODE OPERATION IR PURIFYING OPERATION NIGHT MODE operation changes the brightness of the operation In the AIR PURIFYING operation, the indoor unit built-in device reduces indicator, disables the beep sound and limits the noise level of the airborne fungi, viruses, mold, and allergens.
-
Page 13: Powerful Operation
OWERFUL OPERATION IMER OPERATION (ON/OFF TIMER) Press during COOL or HEAT mode page 7 Press during operation to set the timer. start POWERFUL operation. (ON timer) : The unit turns ON at the set time. Fan speed : Exclusive speed for POWERFUL mode Horizontal vane : Set position, or downward airflow position during (OFF timer) : The unit turns OFF at the set time. -
Page 14: Weekly Timer Operation
● OPERATING INSTRUCTIONS ● EEKLY TIMER OPERATION • A maximum of 4 ON or OFF timers can be set for individual days of the week. • A maximum of 28 ON or OFF timers can be set for a week. Press , and to set ON/OFF, time, and... -
Page 15: Front Panel
LEANING Instructions: • Switch off the power supply or turn off the breaker before cleaning. • Do not soak or rinse the horizontal vane. • Be careful not to touch the metal parts with your hands. • Do not use water hotter than 50°C. •... - Page 16 ● OPERATING INSTRUCTIONS ● i-Fi INTERFACE SETTING UP This Wi-Fi interface, communicates the status information and controls Information for users the commands from the the server by connecting to an indoor unit. The following steps explain how to connect the Wi-Fi interface to a Router. KEY (LED LIGHTS): : ON : OFF...
-
Page 17: Led Pattern
i-Fi INTERFACE SETTING UP Once completed, the MAC and ID will be fi lled in Open Wi-Fi Control App. Enter MAC and ID into ‘Add new unit’. Select ‘Add’ and then control your ‘Add new unit’ and select ‘Add’. heat pump via Wi-Fi. Option 2 - WPS-Push Pairing Once completed, control your heat pump via Wi-Fi. -
Page 18: Troubleshooting
If a problem regarding connecting your Router and the Wi-Fi interface persists, www.mitsubishi-electric.co.nz/wifi please contact your local Mitsubishi Electric offi ce, as listed on the back of this Phone: 0800 639 434 guide. A list of compatible Routers is also available. -
Page 19: When You Think That Trouble Has Occurred
HEN YOU THINK THAT TROUBLE HAS OCCURRED Symptom Explanation & Check points Even if these items are checked, when the unit does not recover from the Remote controller trouble, stop using the air conditioner and consult your dealer. The display on the remote •... -
Page 20: Emergency Operation
● OPERATING INSTRUCTIONS ● HEN YOU THINK THAT HEN THE AIR CONDITIONER IS NOT TROUBLE HAS OCCURRED GOING TO BE USED FOR A LONG TIME In the following cases, stop using the air conditioner and consult your dealer. • When water leaks or drips from the indoor unit. Operate by COOL mode with the highest temperature •... -
Page 21: Electrical Work
NSTALLATION PLACE AND PECIFICATIONS ELECTRICAL WORK Guaranteed operating range Installation place Outdoor Avoid installing the air conditioner in the following places. • Where there is much machine oil. Indoor LN25/35/50VG2 LN25/35VGHZ2 • Salty places such as the seaside. LN60VG LN50VGHZ •... - Page 24 HEAD OFFICE: TOKYO BUILDING, 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN JG79Y724H01...
