TransAct BOHA! WORK STATION Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
QUICK START GUIDE
Setting up BOHA! Work Station

Advertisement

loading
Need help?

Need help?

Do you have a question about the BOHA! WORK STATION and is the answer not in the manual?

Questions and answers

Related Manuals for TransAct BOHA! WORK STATION

Summary of Contents for TransAct BOHA! WORK STATION

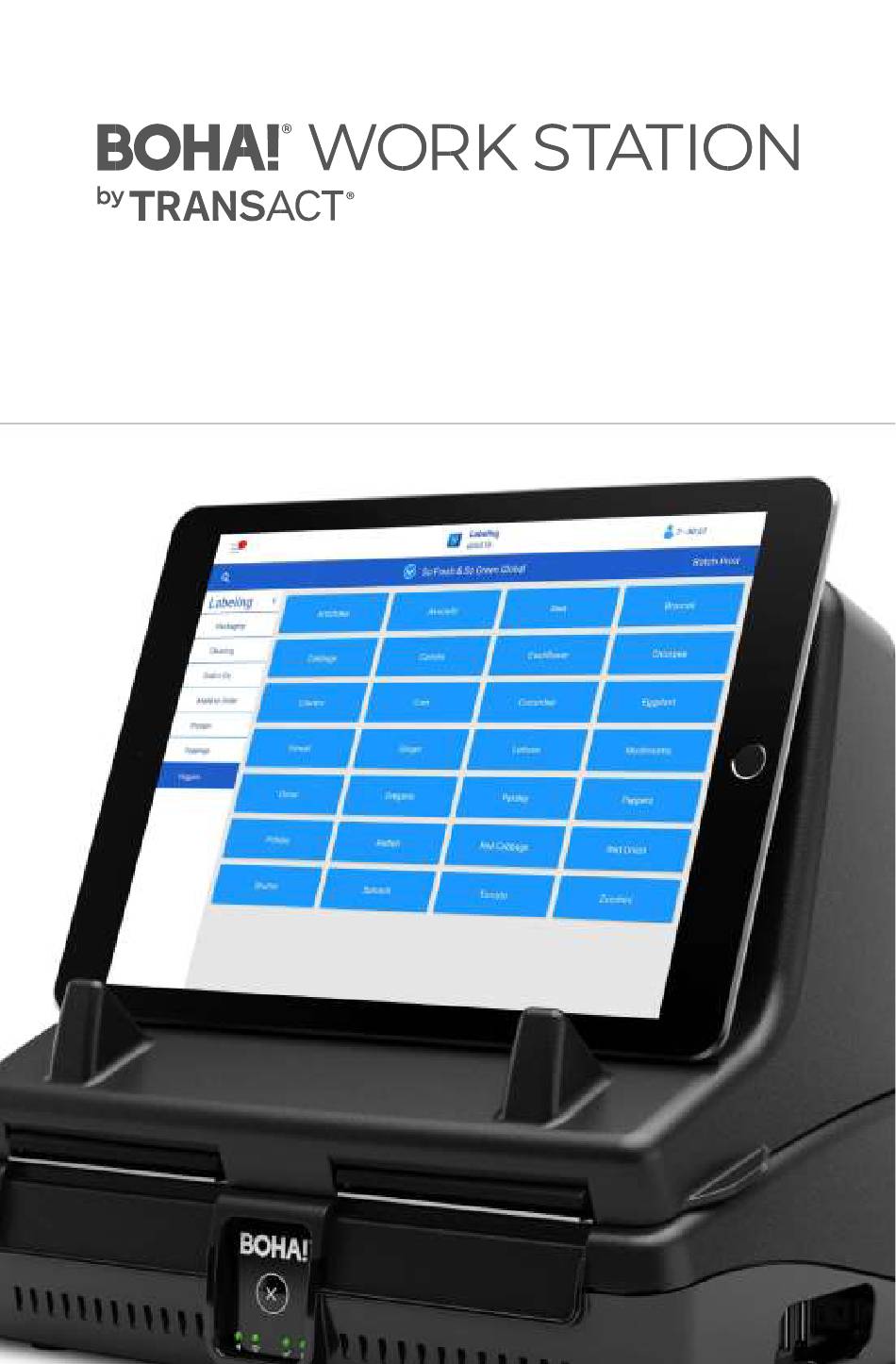

  • Page 1 QUICK START GUIDE Setting up BOHA! Work Station...
  • Page 2 ..5 Setting Up BOHA! Work Station .......6 Label Loading .
  • Page 3 Connections ....... . .22 BOHA! Work Station Name ......
  • Page 5 Work Station for use with ® BOHA! software . This process consists of four simple steps: 1 . Unboxing and powering on the BOHA! Work Station 2 . Loading labels 3 . Linking a tablet to the BOHA! Work Station...

  • Page 6: Package Contents

    PACKAGE CONTENTS The BOHA! Work Station comes with the following items . If any items are missing, ® please contact TransAct Sales Support . 1 . BOHA! Work Station 2 . Quick Start Guide 3 . Power Cord...

  • Page 7: Before You Get Started

    ® and crew members to easily access . 2 . If the BOHA! Work Station is going to be connected to the store Wi-Fi network, make sure the BOHA! Work Station is in range of a Wi-Fi access point .

  • Page 8: Controls And Indicators

    CONTROLS & INDICATORS Front Control Panel Right Side Features...
  • Page 10 USB-C Charging Port Ethernet Port...
  • Page 11 CONTROL & INDICATOR FUNCTIONS Control Functions Power Button Short Press ~1 sec Turn power on or request power off Long Press >5 sec Force power off Bluetooth Button Short Press ~1 sec Print network settings Cancel Button Short Press Cancel current label Long Press Cancel print job Feed Button...
  • Page 12 SETTING UP BOHA! ® WORK STATION 1 . Remove the BOHA! Work Station from its protective packaging . 2 . Connect the AC power cord to the side of the BOHA! Work Station as shown and plug into a power source .

  • Page 13: Label Loading

    3 . If the BOHA! Work Station does not start automatically, or restart from a shutdown, press the Power button until the LEDs illuminate . 4 . The BOHA! Work Station Printer Status LEDs will illuminate immediately, but the BOHA! Work Station will take approximately another 45 seconds to fully initialize .
  • Page 14 3 . Place the rolls in the label bucket and feed the labels from the top through the center of the label path .
  • Page 15 LABEL LOADING 4 . Pinch the blue bucket width adjustment lever on the side of the paper bucket and gently slide the sidewalls so they close in on the paper roll . The sidewalls should be straight against the label roll (as shown in Fig .1) . A gap between the label roll and sidewall (Fig .2) will cause a too loose alignment and when the sidewalls are pinched too tightly and angled downwards (Fig .3) will cause a...

  • Page 16: Network Connections

    Ethernet cable to establish a network connection . Option 1 – Pre-configured Devices: 1 . If the BOHA! Work Station was pre-configured, it will automatically connect to your Wi-Fi network at power up . Note that the power up/connection process may take up to 1 minute .
  • Page 17 NETWORK CONNECTIONS Login Page 2 . The Home (Configuration Overview) page will be displayed showing the current settings Configuration Overview Page...
  • Page 18 NETWORK CONNECTIONS Menu: 1 . Menu open/close 2 . Home (configuration overview) 3 . Connectivity 4 . User Administration 5 . Networking and System Configuration 6 . Printer Discovery Configuration...
  • Page 19 7 . Open the menu and select Home to return to the configuration overview page . 8 . On the BOHA! Work Station, press the Bluetooth button to exit configuration mode . 9 . When the connection is complete, the Network LED on the BOHA! Work Station front panel will change to solid green .
  • Page 20 13 . The BOHA! Work Station is now ready for operation . Option 3 – Ethernet Connection: 1 . Plug the Ethernet cord to the back of the BOHA! Work Station and Ethernet port . 2 . When the connection is complete, the Network LED on the BOHA! Work Station front panel will change to solid green .
  • Page 21 ® SETTING UP BOHA! LABELING Log into BOHA! Ops 1 . Open BOHA! Ops on your tablet Your device may have been pre-assigned to your location and is ready for operation . Follow the steps below if asked to enter your Account Code information .
  • Page 22 If you don’t have your Account Code information, follow these steps: a . Log in to your BOHA! Control Center account from your PC or tablet . https://boha.transact-tech.com b . Select Locations Manager. c . Your Account Code is the alphanumerical code under Account Name.
  • Page 23 ® SETTING UP BOHA! LABELING d . To find your Location Number and Location Code, select your location from the hierarchy . e . Select the information button .
  • Page 24 ® SETTING UP BOHA! LABELING f . Your Location Number and Location Code are highlighted below . g . Enter this information as outlined in the steps above to login to BOHA! Ops and access BOHA! Labeling . BOHA! Labeling is now ready for operation .
  • Page 25 ® SETTING UP BOHA! LABELING BOHA! Ops Login screen...

  • Page 26: Printing A Label

    PRINTING A LABEL 1 . Select Labeling. 2 . Select the BOHA! Work Station from the Discovered Printers pop up to ® connect your BOHA! Work Station . Select Connect .
  • Page 27 PRINTING A LABEL 3 . Select the label size you’ve inserted to the left and/or right printers . Select Apply to save selections .
  • Page 28 A connectors on the right side of the base and a USB type C connection located in the top cover . Cable guides are provided on the cover to route the charging cable when the tablet is placed on the BOHA! Work Station . USB-A Connectors...
  • Page 29 ® WORK STATION NAME In the event that more than one BOHA! Work Station is installed in a location it will be useful to assign a unique name to the device . These names will be displayed in the BOHA! Ops application to simplify selection of a specific BOHA! Work Station for printing .

  • Page 30: Service And Support

    SERVICE & SUPPORT For questions regarding the use and servicing of your device, you have several options: 1 . Visit www.transact-tech.com, then select Service & Support . 2 . Email us at support@transact-tech.com 3 . In the USA call: 1-877-748-4222 International: +1-607-257-8901...
  • Page 31 Proper Food Safety labeling is a key component to offering your customers the best possible experience . Having the right label for the right use is important to keeping your operation running smoothly . For more information or to order labels, contact TransAct: Call 1-800-243-8941, or visit www.transactsupplies.com...
  • Page 32 ©2021 TransAct Technologies Inc . TransAct and BOHA! are registered trademarks 97-18007_RevD of TransAct Technologies Inc .
