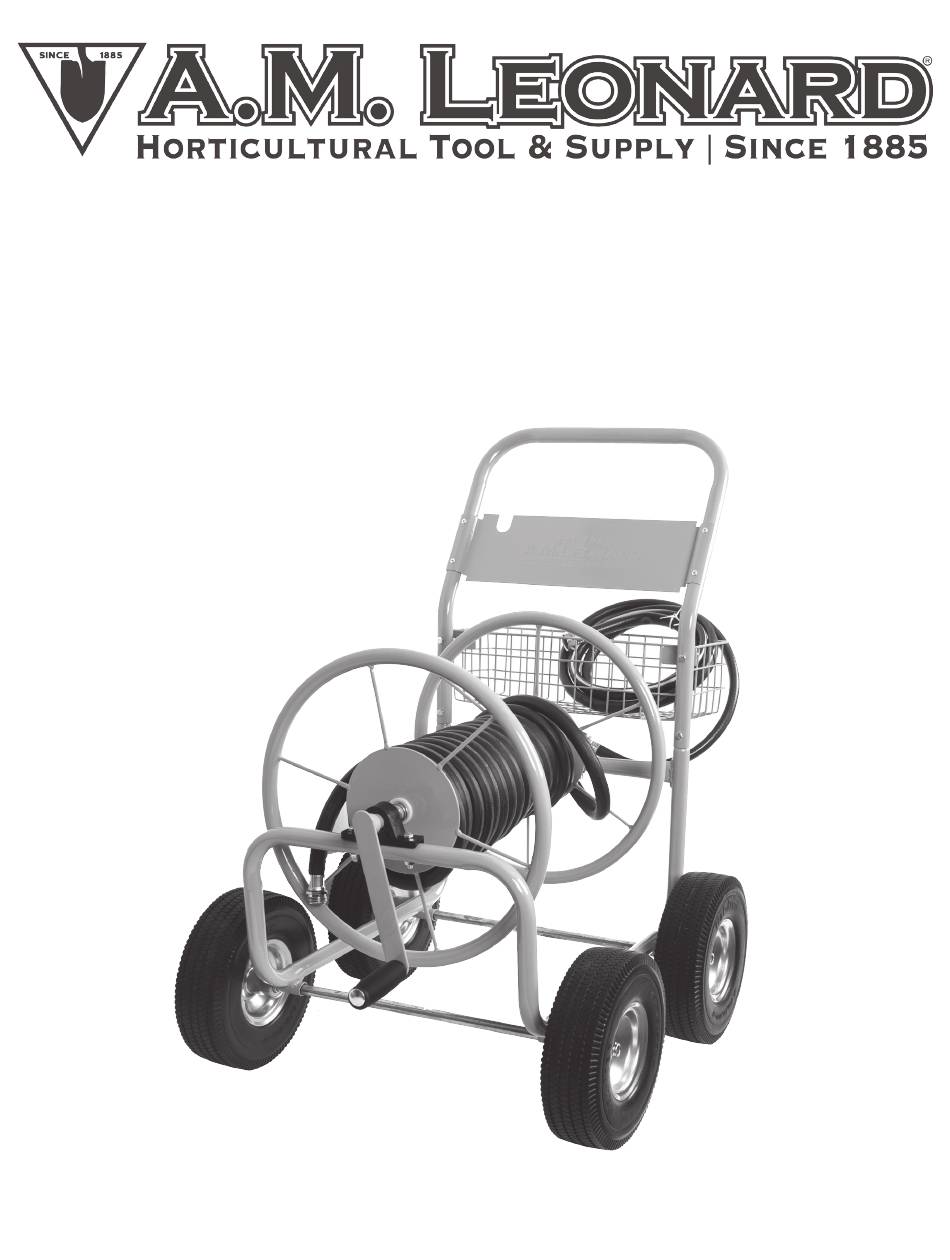

- Page 1 300 FT. FOUR WHEEL HOSE CART OWNER’S MANUAL Model HW300 - Pneumatic Wheels Model FHW300 - Flat Free Wheels Visit our website: www.amleo.com or call toll free 800-543-8955...
- Page 2 BEFORE STARTING –– You’ll need two adjustable wrenches and a way to inflate the tires. PARTS A. Frame HW30001 G. Brass Swivel HW30006 B. Spool HW30002 H. Galvanized Tee HW30007 C. Wheel Pneumatic HW30003 I. U-Bushing HW30008 C. Wheel Flat Free FF10 J. Rubber Handle W/bolt HW30009 D.
- Page 3 Step 5 Figure 5 • Place the Spool (B) on the Frame (A) so the bushings are oriented over the Bushing holes on the frame as seen in Figure 5. You may have to compress the spring to get the spool oriented properly. Step 6 •...
