A.M.Leonard AGS2 Assembly Instructions

#AGS2 LEONARD GARDEN SCOOT
ASSEMBLY INSTRUCTIONS
#AGS1002
#AGS2004
#AGS2009
#AGS1007
#AGS2010

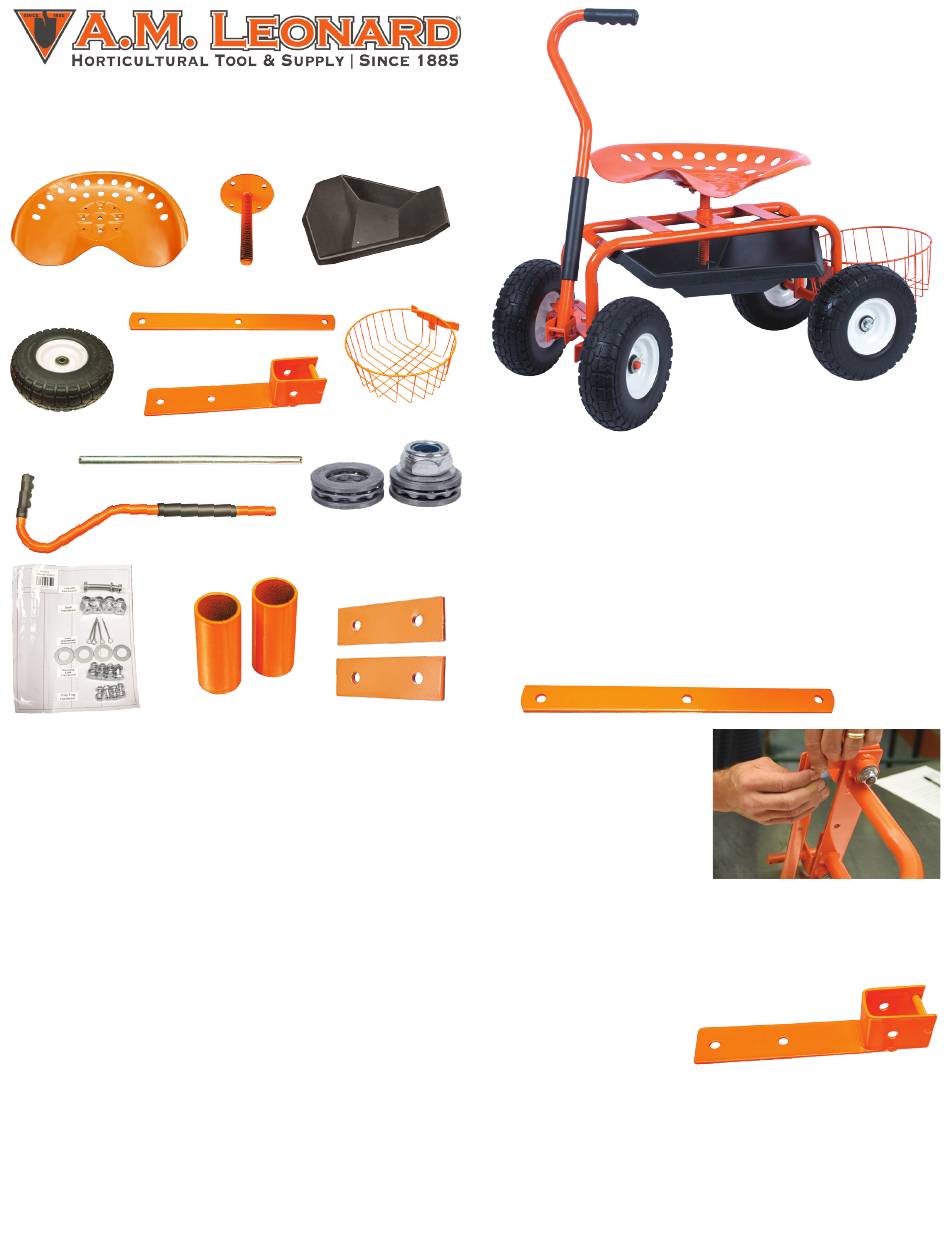

PARTS LIST
AGS1002......... Tractor seat only
AGS2002......... Threaded seat post
AGS1003......... Black poly tray
AGS1007......... Handle
AGS2004......... Flat free wheel
AGS2005......... Steering link
AGS2006......... Wire basket
AGS2008......... Steering arm
AGS2009......... Rear axle
AGS2010......... Hardware set
AGS2011......... Rear axle spacers
AGS2012......... Steering bearings (One side only)
AGS2013......... Tray supports
TOOLS NEEDED
• 3/8", 1/2" and 11/16" sockets or wrenches
• Phillips screwdriver
#AGS2002 #AGS1003
#AGS2005
#AGS2008
#AGS2012
For reference only. Bearings
are pre-installed in scoot
frame
#AGS2011 #AGS2013
#AGS2006
STEP 1: Remove contents of package and place the
components on a flat work surface. Check to ensure
you have everything prior to beginning assembly. If
anything is missing, or you have any questions, please
watch our assembly video on amleo.com, search AGS2.
Or contact us at 1-800-543-8955.
STEP 2: Rotate the left and right steering arms so that
the front wheel spindles extend outward from frame.
STEP 3: Place the steering
link bar over the steering
spindle arms and align
holes. Secure each end
with solid shank bolts,
placing the larger washer
between the link bar and
steering spindle arm. Secure with smaller washer and
nylon nut. Over-tightening will cause steering to be
stiff.
STEP 4: Place steer-
ing arm under welded
frame section and over
the steering link, align-
ing the holes. Secure from top with bolts, being sure to
place larger washer between metal parts, then secure
with smaller washer and nylon nuts. Tighten with
wrench or socket. Over-tightening will cause steering
to be stiff.
#AGS2005
#AGS2008
