Operating instructions
EDP 901 882 002
CE
microtec 880/870
Wheel balancing computer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEISSBARTH microtec 880 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Facom BEISSBARTH microtec 880

Summary of Contents for Facom BEISSBARTH microtec 880

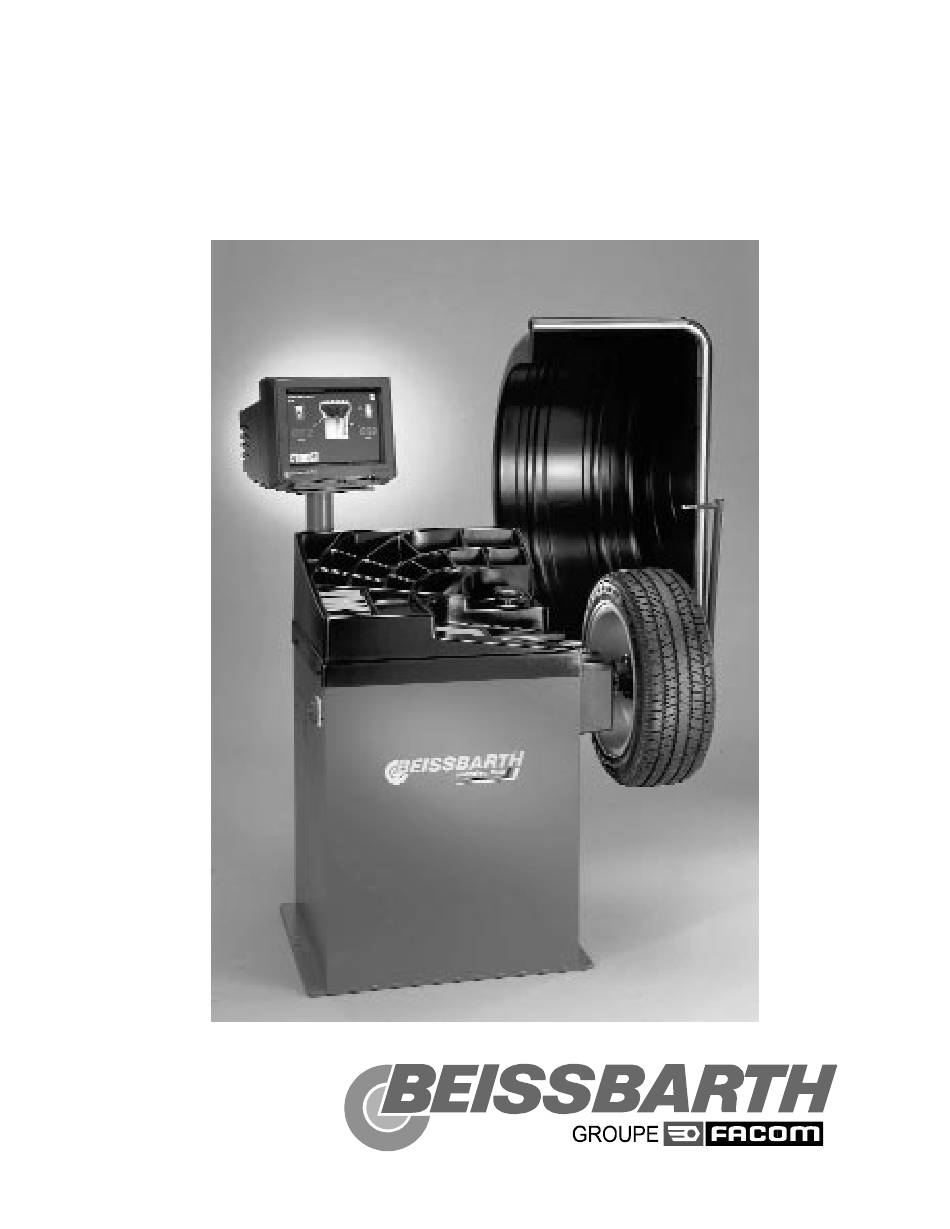

  • Page 1 Operating instructions EDP 901 882 002 microtec 880/870 Wheel balancing computer...
  • Page 2 Documentation data: BA-mt880/870/En/Rev.002/05.98 Patent: US 6.003.367 EDV 901 882 002 EP 0728299 First edition: 09.97 Version: mt880/870/En/Rev.002/05.98 Modifications: 05.98 Archive: dokumentation\handbuecher\wuchtmaschinen/mt880/870/englisch.qxd Beissbarth GmbH Automobil-Servicegeräte Hanauer Straße 101 80993 München Telefon 089/14901-0 Telefax 089/14901246...
  • Page 3 StationaryBalancing Machines Edition dated: 29.03.1994 AEI:00 EW_MT.DOC Customer: Instructor: Sold by: Street: Postcode/Town: Order issued by: Tel.: (please check as applicable) Machine: Serial number: 1. Check on completeness of balancing machine and freedom from damage No defects/complaints Missing parts:_______________________________________________________________________________ Damage in transit:___________________________________________________________________________ 2.
  • Page 4 I n t r o d u c t i o n The wheels and the running gear (suspension) of an automobile are a major factor in ensuring that it handles and rides well. Problems can be caused by non-uniform distribution of material in the wheel rim and tyre, possible residual imbalance in the wheel hub, brake drum or brake disc and if the suspension elements are sensitive to damage.

  • Page 5: Table Of Contents

    CONTENTS Chapter Item ......... . .Page: Technical data .

  • Page 6: Technical Data

    TECHNICAL DATA Operating range: Wheel weight: up to 65kg Wheel diameter: Passenger cars from 10" to 20" Light commercials up to 17.5" Rim width: up to 13.5" (345mm), motorcycles from 2" Max. outer diameter of wheel: 900mm Operating temperature range: +5°C to 40°C Atmospheric humidity range: 10-90% at 40°C...

  • Page 7: Safety Precautions And Start-Up Procedure

    SAFETY PRECAUTIONS AND START-UP The wheel balancing machine must only be used to balance vehicle wheels and tyres in conformity with the stated technical data. Only properly trained and skilled personnel must operate the machine. Power-driven wheel balancing machines must only be operated with a wheel guard in position (German law: please conform with local regulations in other countries).

  • Page 8: Assembling The Monitor

    Assembling the wheel guard Place the tube of the wheel guard on the stub axle of the machine. Insert the two M 8 x 50 retaining screws, attach the washers and nuts (Items 2 and 3) and tighten them. Study the wiring diagram most carefully before making electrical connections, since if these are incorrect the electronics may be damaged beyond repair.

  • Page 9: Brief Description

    BRIEF DESCRIPTION Controls and screen buttons Action Center: The Action Center is used to operate all the system functions. It is turned to the left/right to locate the desired function, and pressed to activate it. Patent: US 6.003.367 EP 0728299 Wheel guard: with electrical interlock (a legal requirement in...
  • Page 10 General-function screen buttons Display help information First press the help button, then the key for which help is needed. Quit screen page This closes the displayed page on the screen and moves back to the previous page. Start balancing run When the balancing procedure has been started, the only screen button remaining operative is the “Stop”...
  • Page 11 Inner/outer wheel plane After a balancing operation you can switch between the inner and outer balancing plane with this button. Enter rim dimensions This button activates the screen button that is used to select rim distance, rim width and rim diameter and for altering the unit of measurement from milli- metres to inches (see also Page 3-4 and Chapter 6).
  • Page 12 Wheel data settings Adjusting Adjusting Help rim distance wheel dia. Adjusting Choosing Quit screen rim width mm/inches page Selecting balancing method Intl./extl. knock-on Inner and concealed Intl. adhesive, outer weights adhesive weight knock-on weight Inside drive-on Intl. and extl. adhe- weight and concealed sive weights weight...

  • Page 13: Special Functions

    System settings Selecting dimensions of adhesive and drive-on Set suppression and Select language weights Help round off thresholds Date and time Switching matching Quit screen Unit of weight setting suggestion on/off page Special functions Copyright Weight Match Display and version calibration program help text...
  • Page 14 Test When turning on the main switch, press the test screen button. The wheel turns slowly (app. 1 sec) and checks all functions. The start picture then appears on the screen. Motor running This symbol remains on display in the status line (top right) whenever the motor is running.

  • Page 15: Preparatory Work

    PREPARATORY WORK Clamping the flange Push the complete flange (of the type suitable for the wheel) on to the conical shaft and tighten the retaining screw firmly with the Allen key provided. (The picture shows a middle-centring flange.) Clamping wheel on to flange Important: Dirty or damaged clamping devices or wheels, incorrect clamping devices (see...
  • Page 16 Middle-centring flange For all wheels with a middle hole for centring (about 80% of all wheels), the middle-centring flange is used to clamp the wheel to the balancing machine. To keep clamping errors as low as possible, always position the wheel with the tyre valve at the bot- tom when clamping the wheel to the flange or fitting it to the vehicle.
  • Page 17 4. Centring of the wheel with centring rings for specific vehicle models from the back of the wheel, and securing with clamping cover and toggle nut from the front of the wheel: Select the correct centring ring (it must enter the machined centre hole on the wheel exactly) and push it over the flange shaft.
  • Page 18 7. Centring and securing the wheel with centring cones and the tog- gle nut from the front of the wheel, and a spacing disc from the rear of the wheel for light commercial vehicles: Since the dish depth of the light commercial vehicle’s wheel may be greater, a spacing disc is inserted between the flange contact face and the back of the wheel.
  • Page 19 Special flanges for wheels with no centre hole For all closed-centre wheels with either 3, 4 or 5 stud holes, and also for all wheels with an unma- chined centre hole, UNI flanges are used to clamp the wheels to the balancing machine. In order to keep clamping errors to a minimum, the tyre valve should always be at the bottom when clamping the wheel to the flange and fitting it to the vehicle.
  • Page 20 For all motorcycle wheels from 2" rim width with a center hole from 14 mm to 25 mm (with special accessories also for 10 and 12 mm center holes). 12. Centering the wheel with centering sleeves or centering cones and fastening with knurled nut. The two sprung driving pins tighten and drive the wheel from the outside by means of the tread contact surface.
  • Page 21 Clean wheels and tyres. Remove all existing balance weights. Have suitable balance weights ready. Check wheel runout (using the accessory dial gauge P 22). Activate “Special functions”-“Visual inspection” by pressing the Action Center . The wheel turns at slow speed. When the “Stop” key is pressed, the wheel is held automatically at the position reached.

  • Page 22: Choice Of Balancing Method

    CHOICE OF BALANCING METHOD Using the Action Center, mark the screen button “Select balancing method” and press to obtain the scre- en page for selection of the balancing method. The screen shows a symbolic wheel. The menu strip contains the screen buttons for the available methods of balancing.

  • Page 23: Wheel Data Input

    WHEEL DATA INPUT Note: There are three different methods of wheel data input: 1.) Input with position measuring arm and rim width sensor Carefully push the positioning measuring arm away from the zero position against the inner wheel rim shoulder, and wait until the measuring symbol disappears from the wheel rim data adjusting diagram and the rim distance and wheel diameter are displayed.

  • Page 24: Input With Concealed Adhesive Weight

    2.) Input with concealed adhesive weight (Inner drive-on or adhesive weight with one concealed adhesive weight each) Pull the position measuring arm away from the zero position and into the position on the rim at which the inner drive-on or adhesive weight is to be attached after balancing.

  • Page 25: Manual Wheel Data Input With The Action Center

    3.) Manual wheel data input with the Action Center Use the Action Center to mark the “Input wheel data” screen button, then press to call up the screen page for rim distance adjustment. Mark “Wheel distance - rim width - rim diameter” in succession with the Action Center, then press to call up the corresponding function.

  • Page 26: Balancing Procedure

    BALANCING PROCEDURE Safety precautions: When the “STOP” screen button is activated, the wheel guard is opened In Germany, the wheel guard must be electrically or the main (emergency off) switch is interlocked with machine. It must not be possible to switch the machine on operated, the balancing run is always interrupted.
  • Page 27 screen button by pressing the Action Center. The wheel will be turned automatically in the direction for balancing the inner plane. The imbalance value and adjusting arrow symbol for the inner wheel plane change colour from red to green. Attach the balance weight for the inner plane according to the chosen balancing method.

  • Page 28: Balancing Method With Free Weight Positioning

    inside adhesive weight and concealed adhesive weight inside drive-on weight and concealed adhesive weight If the balancing method for concealed adhesive weights was activated during balancing, proceed as follows when attaching the adhesive weights: - Insert the correct adhesive weight in the holder on the end of the position-measuring arm.
  • Page 29 Press Action-Center Turn by hand to the desired positions of the two (split) balancing weights on the wheel at 12 o’clock. Note: To facilitate turning in to the desired weight position, the wheel is slowed slightly for a short time during the procedure.

  • Page 30: System Settings

    SYSTEM SETTINGS Activate the “System settings” screen button by pressing the Action Center. The screen page with the available settings will appear, with a menu strip. Weight display suppression and rounding-off Activate the “Weight display suppression and rounding-off” screen button by pressing the Action Center.

  • Page 31: Selecting Dimensions Of Adhesive And Drive-On Weights

    Activate the “Date and time adjust- ment” screen button by pressing the Action Center. Activate the date display button. Selecting the correct day/month/year by turning the Action Center to the correct position and then pressing it. Adjust the time display in a similar way. Selecting dimensions of adhesive and drive-on weights Input width and height of the adhesive...

  • Page 32: Special Functions (Service)

    SPECIAL FUNCTIONS (SERVICE) Activate the “Special functions” screen button by pressing the Action Center. The screen page with special functions will appear, with a menu strip. Match program Note: Above a static wheel imbalance component of 30 grams, matching is recommended in order to com- pensate for vertical runout and lack of uniformity.

  • Page 33: Flange Calibration

    Flange calibration Activate the “Flange calibration” scre- en button by pressing the Action Center. The flange calibration screen page will appear. To ensure reliable calibration, always comply exactly with the screen instructions for the calibration program.. Calibration with weight Activate the “Calibration with weight” screen button by pressing the Action Center.

  • Page 34: Visual Check

    Visual check Activate the “Visual check” screen button by pressing the Action Center. The wheel will be turned slowly, and held automatically when the “Stop” button is pressed. Version display Activate the “Version display” screen button by pressing the Action Center. The display shows the manufacturer’s copy- right, the versions in use, the software status and various equipment modules.

  • Page 35: Maintenance And Upkeep Instructions

    MAINTENANCE AND UPKEEP Before carrying out any maintenance or servicing work, disconnect the mains plug from the power supply. If the power supply is permanently attached to the machine, turn off the main switch and secure it in the off position with a padlock so that it cannot be accidentally switched on again. If malfunctions occur and the machine operator cannot eliminate them, or if fault indications are displayed, please consult Beissbarth’s service organisation.

  • Page 36: Fault Code Displays

    FAULT CODE DISPLAY 1. Fault in function sequence Description: Possible cause: Remedial action: 1. No screen image No power supply Check mains socket, mains fuses and plug connection to power supply. Main (on/off) switch is off. Turn on the switch at the equipment cabinet.
  • Page 37 processor does not pull the tear line if a fault occurs. Possible causes: 9. The calibrating values are implausible and No or wrong weight used (60-grammes clip- NOT saved! on weight required), weight not attached on The machine must be recalibrated! the outer plane, weight not placed at 6 o'clock position, the unbalance of the wheel is to high for calibrating ("Zero"...

  • Page 38: Appendix

    APPENDIX Mains connection chart for mt 880 / mt 870 Main switch PC power stage Monitor Frequency converter Switch board Motor terminal board bl - blue br - brown gn - green ge - yellow A -1...

  • Page 39: Motor Connection Chart

    Motor connection chart mt 880 / mt 870 Earthing Strap EDV-Nr.: 931 883 036 Cable castening PG 16 EDV-Nr.: 974 205 245 Cable FU-Motor Cable Motor- SP EDV-Nr.: 931 883 018 EDV-Nr.: 931 883 020 Lid fixture with washers A 4,3 br - EDV-Nr.: 975 230 007 gn = green ge = yellow A -2...

  • Page 40: Frequency Converter Connection Chart

    Frequency converter connection chart mt 880 / mt 870 Mains cable HS- FU- SP Ring clamp EDV-Nr.: 931 883 016 EDV-Nr.: 974 205 148 Cable PC- FU Cable FU- SP EDV-Nr.: 931 883 021 EDV-Nr.: 931 883 019 Shielding Cable FU- Motor EDV-Nr.: 931 883 018 Motor Earth cable...

  • Page 41: Eg-Konformitätserklärung

    Hanauer Str. 101, 80993 Munich, Germany EG-Konformitätserklärung EC-Declaration of Conformity / EC-Declaration de Conformité CE-Dichiarazione di conformita / CE-Declaracion de conformidad CE Declaração de conformidade EG Conformiteitsverklaring EC-försäkran om överensstämmelse Hiermit erklären wir, daß die nachfolgend bezeichnete Maschine/Ausrüstung aufgrund Ihrer Konzipierung und Bauart sowie in der von uns in Verkehr gebrachten Ausführung den einschlägigen grundlegenden Sicherheits- und Gesundheitsanforderungen der betreffenden EG-Richtlinie(n) entspricht.
  • Page 42 · EG Maschinenrichtlinie (89/392/EWG)i.d.F.91/368/EWG,93/44EWG,93/68/EWG73/23/EWG · EG Richtlinie Elektromagnetische-Verträglichkeit (89/336/EWG) i.d.F. 93/68/EWG · EG-Niederspannungsrichtlinie (73/23/EWG) i.d.F. 93/68/EWG · EG-Richtlinie CE Kennzeichnung 93/68/EWG In conformance with the requirements of the following EC Guidelines: · EC-Machine Standard (89/392/EWG)i.d.F.91/368/EWG,93/44EWG,93/68/EWG73/23/EWG · EC Guidelines for Electro-Magnetic Compatibility (89/336/EWG) - 93/68/EWG ·...
