Product code: BS9801B
Fontana Sensor Faucets
FONTANA BRUSHED NICKEL COMMERCIAL

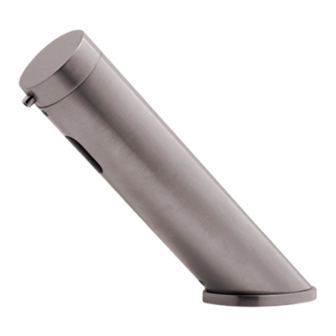

AUTOMATIC FOAM AUTOMATIC SOAP DISPENSER
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Before you begin, please read the installation instructions below. Observe
all local building and safety codes.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
Please note all products must be installed by a professional and certified
plumber otherwise warranty might be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanasensorfaucets.com
Fontana Sensor Faucet
1
Customer Service: 800-684-4489
Advertisement
Table of Contents
Related Manuals for FONTANA SENSOR FAUCETS BS9801B
Summary of Contents for FONTANA SENSOR FAUCETS BS9801B
- Page 1 © Product code: BS9801B Fontana Sensor Faucets FONTANA BRUSHED NICKEL COMMERCIAL AUTOMATIC FOAM AUTOMATIC SOAP DISPENSER INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the items for any shipping damages. If you find damages, do not install.
-
Page 2: Specification
© Fontana Sensor Faucets Size: (In inches) Specification Product Type: Commercial Main Construction Material: Brass Ø1.5 Mount Type: Deck Handle Type: Infra-Red Power supply: AC: 220V / DC: 1.5V 4pcs 5” Batteries Required: 4 AA Batteries (not supplied) Number of Tap Holes: 3.6”... - Page 3 © Fontana Sensor Faucets Installation Method Install the bracket Insert the pump Insert the locking on the wall onto the bracket plate into bracket Soap Refill Process Affix the bottle with Unscrew the Add soap into full soap onto the pump, empty bottle.
-
Page 4: Battery Box
© Fontana Sensor Faucets Deck Mounted Faucet Battery Box Battery case Battery case cover － ＋ Screws ＋ － Batteries fontanasensorfaucets.com Fontana Sensor Faucet Customer Service: 800-684-4489... - Page 5 © Fontana Sensor Faucets 1. Remove cover of battery case. 2. Install four (4) D size alkaline batteries. Anode Cathode Note: Make sure the batteries are installed in correct orientation (polarity). 3. Replace battery case cover. 4. Tighten screws. The standard life cycle time is 2 years, based on average use 2000 times/month.
-
Page 6: Commissioning Sequence
© Fontana Sensor Faucets Commissioning Sequence Care & Cleaning Before using the soap dispenser for the first time the • Wipe away any debris adhering to the spout or following sequence must be carried out. sensor. Fill the bottle full of soap.
