Product code: FS10051
Fontana Sensor Faucets

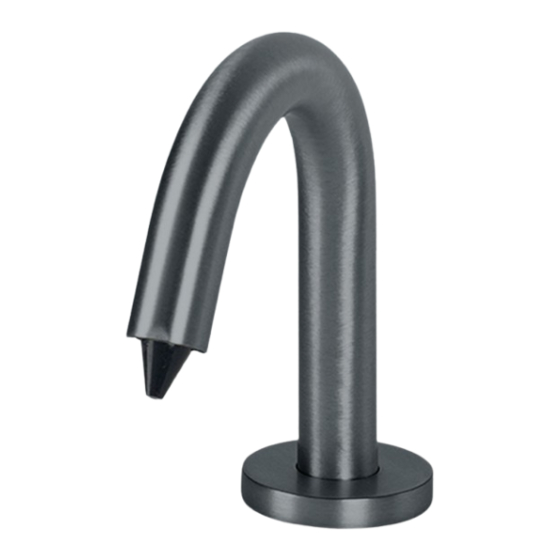

DIJON HAND FREE DECK MOUNT SOAP DISPENSER IN
OIL RUBBED BRONZE FINISH INSTALLATION
INSTRUCTIONS
BEFORE YOU BEGIN
Before you begin, please read the installation instructions below. Observe
all local building and safety codes.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
Please note all products must be installed by a professional and certified
plumber otherwise warranty might be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanasensorfaucets.com
Fontana Sensor Faucet
1
Customer Service: 800-684-4489
Advertisement
Related Manuals for FONTANA SENSOR FAUCETS DIJON FS10051
Summary of Contents for FONTANA SENSOR FAUCETS DIJON FS10051
- Page 1 © Product code: FS10051 Fontana Sensor Faucets DIJON HAND FREE DECK MOUNT SOAP DISPENSER IN OIL RUBBED BRONZE FINISH INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before you begin, please read the installation instructions below. Observe all local building and safety codes.
- Page 2 © Fontana Sensor Faucets Size Product Type: Commercial Main Construction Material: Brass Mount Type: Deck Handle Type: Infra-Red Power Rating: 3 Amp Fuse, AC: 230V DC: 1.5V Batteries Required: 4 AA Batteries (not supplied) 6.6” 5” Number of Tap Holes:...
- Page 3 © Fontana Sensor Faucets Installation Method Install the bracket Insert the pump Insert the locking on the wall onto the bracket plate into bracket Unscrew the Add soap into full soap onto the pump, empty bottle. the empty bottle. and do not over tighten.
- Page 4 © Fontana Sensor Faucets Battery case Battery case cover － ＋ Screws ＋ － Batteries fontanasensorfaucets.com Fontana Sensor Faucet Customer Service: 800-684-4489...
- Page 5 © Fontana Sensor Faucets 1. Remove cover of battery case. 2. Install four (4) D size alkaline batteries. Anode Cathode Note: Make sure the batteries are installed in correct orientation (polarity). 3. Replace battery case cover. 4. Tighten screws. The standard life cycle time is 2 years, based on average use 2000 times/month.
- Page 6 © Fontana Sensor Faucets Commissioning Sequence Care & Cleaning Before using the soap dispenser for the first time the • Wipe away any debris adhering to the spout or following sequence must be carried out. sensor. Fill the bottle full of soap.
