Product code: FSF10113
Fontana Sensor Faucets

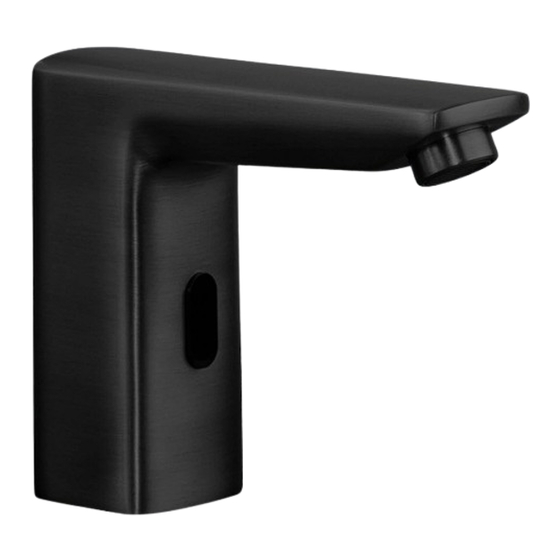

MATTE BLACK COMMERCIAL AUTOMATIC SOAP DISPENSER
INSTALLATION INSTRUCTIONS
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Level
Plumbers Tape
Tape Measure
Adjustable Wrench
Hex Wrench
Thread Sealant
Pencil or Marker
Screwdriver
Drill
*not included
fontanasensorfaucets.com
Fontana Sensor Faucet
1
Customer Service: 800-684-4489
Advertisement
Related Manuals for FONTANA SENSOR FAUCETS FSF10113
Summary of Contents for FONTANA SENSOR FAUCETS FSF10113
- Page 1 © Product code: FSF10113 Fontana Sensor Faucets MATTE BLACK COMMERCIAL AUTOMATIC SOAP DISPENSER INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations. Unpack and inspect the items for any shipping damages. If you find damages, do not install.
- Page 2 © Fontana Sensor Faucets Deck Mount Installation Installation Overview Soap Hose O ring Sensor Wire 3.5” Rubber Washer Washer Nut & Battery locking bolts Case 14” Soap Tube Sensor Cable Soap Bottle Rough-in All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
- Page 3 © Fontana Sensor Faucets Installation of Soap Bottle Install the bracket Insert the pump Insert the locking on the wall onto the bracket plate into bracket Soap Refill Process Affix the bottle with Unscrew the Add soap into full soap onto the pump, empty bottle.
- Page 4 © Fontana Sensor Faucets Deck Mounted Faucet Battery Box Battery case Battery case cover － ＋ Screws ＋ － Batteries fontanasensorfaucets.com Fontana Sensor Faucet Customer Service: 800-684-4489...
- Page 5 © Fontana Sensor Faucets 1. Remove cover of battery case. 2. Install four (4) D size alkaline batteries. Anode Cathode Note: Make sure the batteries are installed in correct orientation (polarity). 3. Replace battery case cover. 4. Tighten screws. The standard life cycle time is 2 years, based on average use 2000 times/month.
-
Page 6: Operation
© Fontana Sensor Faucets Commissioning Sequence Care & Cleaning Before using the soap dispenser for the first time, • Always wipe your fixture down with a soft cloth the following sequence must be carried out. after each use to prevent mineral build-up and - Fill the bottle full of soap.
