GTD -1400 N PROFILE User Manual

1400w n moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GTD-1400 N PROFILE
1400W N Moving Head
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTD-1400 N PROFILE and is the answer not in the manual?

Questions and answers

Related Manuals for GTD GTD-1400 N PROFILE

Summary of Contents for GTD GTD-1400 N PROFILE

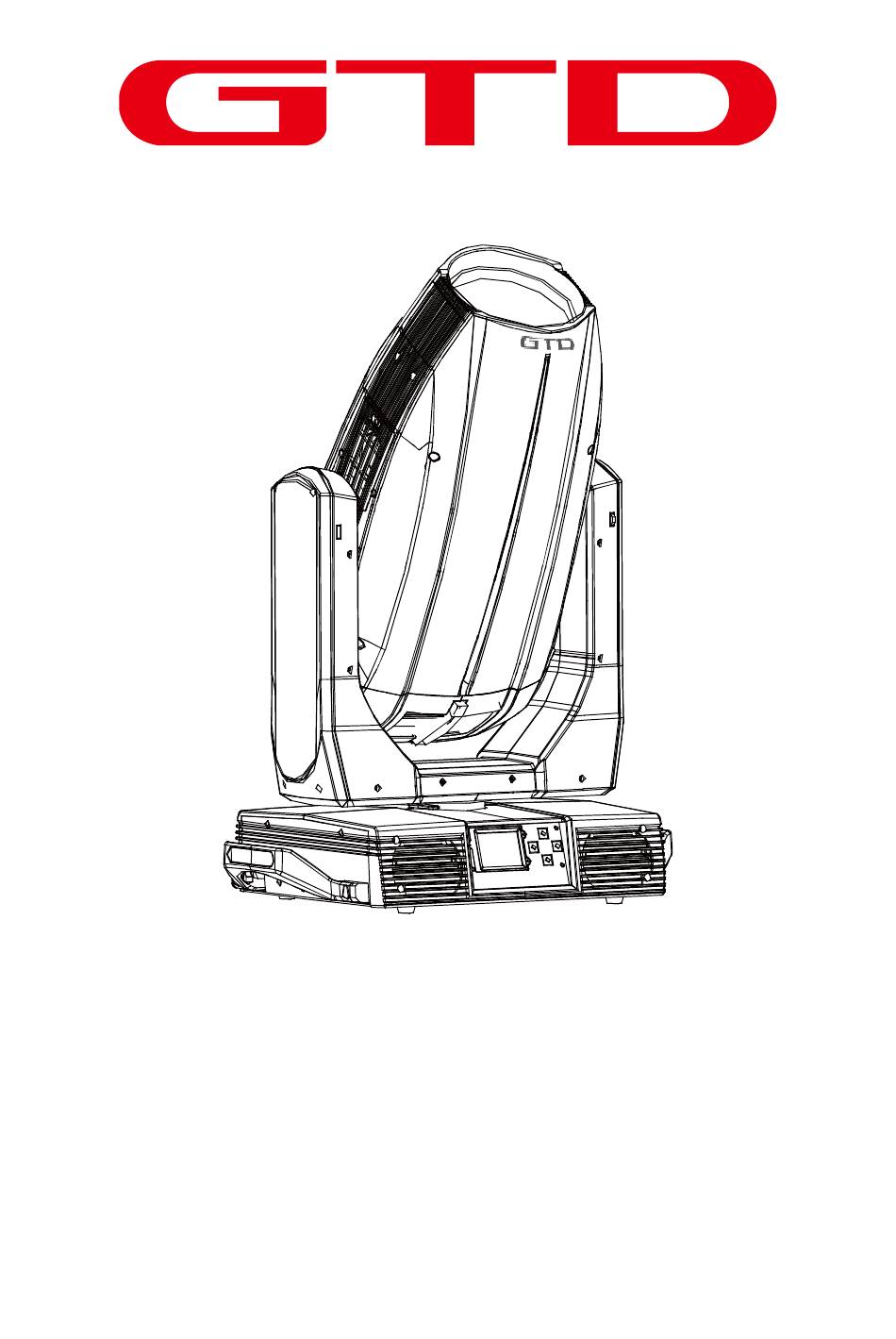

  • Page 1 GTD-1400 N PROFILE 1400W N Moving Head User Manual...
  • Page 2 GTD all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. GTD logo and identifying product names and numbers herein are trademarks of GTD. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    Table of contents 1. Safety instructions ............................... 1 2. Product introductions..............................3 2.1 Dimensions ................................3 2.2 Fixture overview ..............................4 2.3 Accessories ................................4 3. Packing and shipping ..............................5 3.1 Protection lock ................................. 5 3.2 Unpacking ................................5 3.3 Packing after use ..............................

  • Page 4: Safety Instructions

    Before using the fixture, read the latest version of the product user manual, paying particular attention to the safety instructions. Please check www.gtd-lighting.com for the latest revision/update of the user manual. The manufacture of this fixture, are not responsible for damages, resulting from misuse of this fixture, due to the disregard of the information printed in this user manual.
  • Page 5 Broken or damaged cables and light source can only be fixed or changed by certified technicians, certified local  distributors or the manufacturer to ensure operational safety. Do not stick filters or other materials onto the lens. Do not modify the fixture or install other than GTD manufactured  parts.

  • Page 6: Product Introductions

    GTD-1400 N PROFILE 2. Production instructions 2.1 Diamension 297mm 446mm (17.6″) (11.7″) 634mm (25″) 818mm (32.2″) 546mm (21.5″) 358mm 421mm (16.6″) (14.1″) 570mm (22.4″)

  • Page 7: Fixture Overview

    GTD-1400 N PROFILE 2.2 Fixture overview Item Head module Frost module Prism module Tilt lock Framing blade system Lamp-holder assembly Pan-tilt frame Pan lock Base module LCD display 2.3 Accessories Item Unit Remark User Manual Clamps 20-63mm Φ5*60cm 7*19 pc with hook Material：Steel...

  • Page 8: Packing And Shipping

    GTD-1400 N PROFILE 3. Packing and shipping 3.1 Protection lock Pan and tilt locks are equipped to ensure safe transportation. PAN: 4 lock positions are located evenly on the Pan. TILT: 5 lock positions are located on left and right side of the Tilt with the third one in the center.

  • Page 9: Installation

    GTD-1400 N PROFILE 4. Installation 4.1 Clamps installation The fixture can be placed on the stage or mounted on the truss facing any direction. Attach the clamps to the mounting position on the base of the fixture. Warning：Use two clamps when mounting the fixture. Turn the screws attached to each clamp a 1/4 turn clockwise to lock.

  • Page 10: Lamp Fitting And Adjustment

    GTD-1400 N PROFILE 4.3 Lamp fitting and adjustment 1. Disconnect the fixture from AC power. Cool down the fixture. Set the Tilt lock in a horizontal position. 2. Use a flathead screwdriver to loosen the back cover. Remove the lamp by anticlockwise rotating and pull it out.

  • Page 11: Power/ Control Connection

    GTD-1400 N PROFILE 5. Power/ Control connection 5.1 Power connection Connection method:  L (Live) Brown wire  E (Earth) Yellow / Green bi-color wire  N (Neutral) Blue wire  The voltage and frequency of the power source must be in compliance with the ones marked on the fixture. It is strongly recommended that each fixture are to be connected to the power source separately so that they can be switched on / off individually.

  • Page 12: Control Panel

    GTD-1400 N PROFILE 6. Control panel 6.1 Panel instruction  The control panel features touch-sensitive buttons and LCD digital display for quick and easy setup of address code and functions menu.  Press UP or DOWN to view or select the function menu.

  • Page 13: Technical Specification

    GTD-1400 N PROFILE 7. Technical specification  Optical Light source: OSRAM 1400/PS Brilliant Expected average lifetime: 750 h Color temperature correction: 6000K Zoom: 6° -50° Spot uniformity：≥80% Focus: High-precision glass lenses, electronic linear HD focus Prism: 1-facet prism，CW/CCW rotation, variable speed Frost: 1-independent frost effect ...
  • Page 14 GTD-1400 N PROFILE Mounting points: Four quarter-turn locking points + attachment points for safety wire  Dynamic effects Pan/Tilt movement: 540˚/270˚ Iris: Motorized adjustable iris, wide range of variable pulse effects Strobe: 1-25Hz, synchronized, pulse effects Dimmer: 0-100%, mechanical dimming ...
  • Page 15 GTD-1400 N PROFILE  Other teatures  Enhanced stability of the fixture due to the wide input voltage AC/DC switching power supply which both reduces the impact of power and voltage fluctuations, and removes the restriction of voltage and frequency variations in different countries.

  • Page 16: Gobos And Colors

    GTD-1400 N PROFILE 8. Gobos and colors 8.1 Gobo specification All patterns are made in the Glass, and can be customized according to user’s requirement. The customized size is as below: Gobo material Outer dimension Effective dimension Thickness Φ36mm Φ26mm Glass gobo 2.6mm...

  • Page 17: Colors

    GTD-1400 N PROFILE 8.3 Colors One color wheel: 7 colors + open, split color, CW/CCW rotation,“Rainbow effect”in both directions...

  • Page 18: Menu Structure

    GTD-1400 N PROFILE 9. Menu structure Level Level 4 Info Level 2 Level 3 Address Setting Address:001~XXX Setting the DMX address Pan …，All，Off Value Display Display the channel value Auto-Program Master /Slave Run auto program in master or slave setting IP Setting 192.168.xxx.xxx...
  • Page 19 GTD-1400 N PROFILE Console Set Addr Enable/Disable Address can be changed by console No Signal Status Off/Hold/Auto/Music The status while no signal Pan Reverse Enable/Disable Pan Reverse Status Setting Tilt Reverse Enable/Disable Tilt Reverse Pan Scan Degree 360/540 Pan Scan Degree...
  • Page 20 GTD-1400 N PROFILE Input Password Password=XXX(99) The password of adjust mode Adjust Mode Pan=XXX Fixed all begin position Input Password Password=XXX(99) The password of adjust mode Focus Mode Static Gobo Static Gobo=XXX Fixed focus begin position when gobo cut in...

  • Page 21: Dmx Protocol

    GTD-1400 N PROFILE 10. DMX Protocol DMX mode Name DMX value DMX percentage Function Stan Exte Basic dard nded 0.00% 12.16% Close 12.55% 24.71% Shutter open 25.10% 49.80% Strobe, slow→fast Strobe/Shutter 50.20% 62.35% Shutter open Random strobe , slow→fast 62.75% 87.45%...
  • Page 22 GTD-1400 N PROFILE 18.82% 22.35% Fixed Gobo 5 22.75% 26.27% Fixed Gobo 6 26.67% 30.20 % Fixed Gobo 1 shaking 30.59% 34.12% Fixed Gobo 2 shaking 34.51% 38.04% Fixed Gobo 3 shaking 38.43% 41.96% Fixed Gobo 4 shaking 42.35% 45.88% Fixed Gobo 5 shaking 46.27%...
  • Page 23 GTD-1400 N PROFILE Framing blade 2 Framing, Big → Small 0.00% 100.00% (down ) Framing blade 2 Framing blade 2 (down ) ,fine 0.00% 100.00% (down ) ,fine tunning tunning Framing, Big → Small Framing blade 1(left ) 0.00% 100.00%...
  • Page 24 GTD-1400 N PROFILE 73.73% 76.47% Stop 76.86% 100.00% Prism CW rotation, slow→ fast Frost, shallow → deep Frost 0.00% 100.00% 0.00% 12.16% Effect Wheel 12.55% 100.00% 0.00% 49.80% Effect Wheel rotation position Effect Wheel CW rotation, 50.20% 73.33% slow→ fast Effect Wheel rotation 73.73%...
  • Page 25 GTD-1400 N PROFILE 78.43% 81.96% Built-in program 8 82.35% 85.88% Built-in program 9 86.27% 89.80% Built-in program 10 90.20% 100.00% Reserved Note：Settings hightlighted in light grey are default values...

  • Page 26: System Wiring Diagram

    GTD-1400 N PROFILE 11. System wiring diagram...

  • Page 27: Maintenance And Troubleshooting

    It is required that the fixture should be kept clean and well maintained to ensure its reliability. Its lifespan mainly depends on the working environment and proper operation. Should you have any questions, please consult a technical engineer of GTD Lighting.
  • Page 28 GTD-1400 N PROFILE Problem Possible Cause Suggested Correction Choose the channel mode in “Channel setting > Misuse in “Channel setting > Channel Channel Mode” of the fixture as required by the Mode”of the fixture. user Malfunctioning of DMX cannon input/output Troubleshooting the DMX XLR signal plate of connectors.
  • Page 29 GTD-1400 N PROFILE Problem Possible Cause Suggested Correction temperatures in or around the fixture, can cause the ballast to overheat, so we need solve the problem and replace components as required Thermostat damaged. Replace. No function the connector between gobo...
  • Page 30 GTD-1400 N PROFILE Problem Possible Cause Suggested Correction coating wearing off, damages or deformation rotating gobo wheel and color wheel Follow the instructions stated in this user Excessive dusts or smudges on the rotating manual to clean the rotating gobo wheel or color gobo wheel or color whee wheel.

  • Page 31: Spare Parts List

    GTD-1400 N PROFILE 13. Spare parts list Name Notes Lamp 1306010011A OSRAM HTI 1400W/60/P28 Lok-it! Display 5809010524A 1400N PROFILE-101J10 display 0108B-2 / 0803F-1 Scan board 5809010402A 1400N PROFILE-201N10 SCR0240A / scan board 0240A-1 Motor drive board3 5809010403B 1400N PROFILE-301O10 SCR0232B / motor drive board 0232B-2...
  • Page 32 Guangzhou GTD Culture & Technology Group Co., Ltd. Tel：86-20-61808288 Fax：86-20-61812282 http://www.gtd-china.com...
