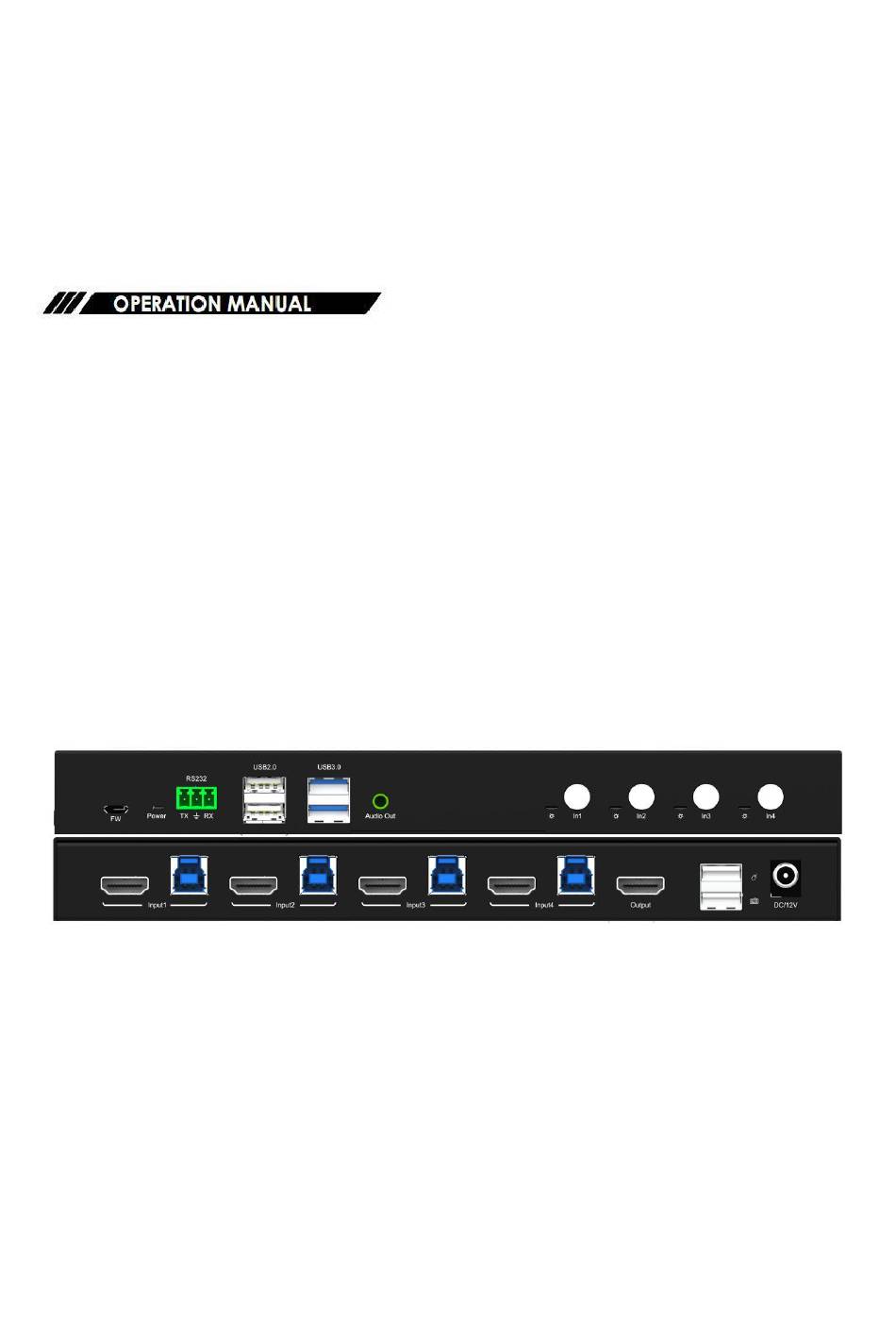

- Page 1 4-PORT HDMI2.0 KVM Switch The device supports switching four computer’s HDMI video and USB signals to one monitor and USB signals’ device. Apply to bank, transportation, education, home, conference, hotel, etc.
-
Page 2: Dear Customer
Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. FEATURES HDMI 2.0, 18Gbps, resolution up to 4K@60hz 4:4:4, HDR ... -
Page 3: Specifications
Operating Instruction SPECIFICATIONS Operating Temperature 0℃to+40℃(+32℉to+104℉) Operating Humidity 5 to 90%RH(No Condensation) HDMI input/output 5xHDMI Type A HDMI version HDMI 2.0 HDCP HDCP2.2 and HDCP1.4 1920x1200/1080P@60Hz, 12bit Deep Color 4096x2160@60Hz(4:4:4) Resolution 3840x2160@60Hz(4:4:4) VESA:2560*1600@60Hz/1920*1440@60Hz/1680*1050@60Hz Maximum data rate 18Gbps(6Gbps per color) Maximum pixel clock 600MHz Colour gamut RGB,YUV 4:4:4,4:2:2,4:2:0... -
Page 4: Panel Descriptions
Operating Instruction PANEL DESCRIPTIONS Front panel Micro USB port for upgrade firmware Power light RS232 USB 2.0 Type A ×2 USB 3.0 Type A ×2 3.5mm analog audio Signal light Panel button Rear panel 4x HDMI Type-A, 4x USB TYPE-B HDMI output USB2.0 TYPE A ×2 DC 12V... -
Page 5: Connecting And Operating
Operating Instruction Connecting and Operating Connect all the PCs to the HDMI KVM switch by HDMI cable and USB A-B cable, then start all the PCs. After all the PCs are started in step 1, then you can switch to any PC by keyboard hot key or the key pad on the KVM panel. - Page 6 Operating Instruction RS232 Control Control software operation: The serial control software is illustrated with SXCOM as an example. Basic Settings: Double-click the software in the installation package to run specifically (as shown in figure) and install the RS232 software on the computer. Enter the main interface of the software, as shown in the figure below.
- Page 7 Operating Instruction In the parameter configuration area, select the serial port number that the serial line connects to the PC. Baud rate: 115200 (default) Data location: 8 Stop bit: 1 Check bit: no Enter Port Command in Send options. Command list Command Function #SWP:n,0...
- Page 8 Operating Instruction HOW TO USE KEYBOARD HOT KEYS: To enter Hotkey mode, press “CTRL” twice quickly, the buzzer beeps once. Input any Hotkey combination that follows; the buzzer beeps once when input is completed. Hotkey Combination Function 1.Ctrl +Ctrl + Page Up Previous port 2.Ctrl +Ctrl + Page Down Next port...
-
Page 9: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;... -
Page 10: Warranty
Operating Instruction WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will , for the length of the period indicated as below, (Parts(2)Year ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
