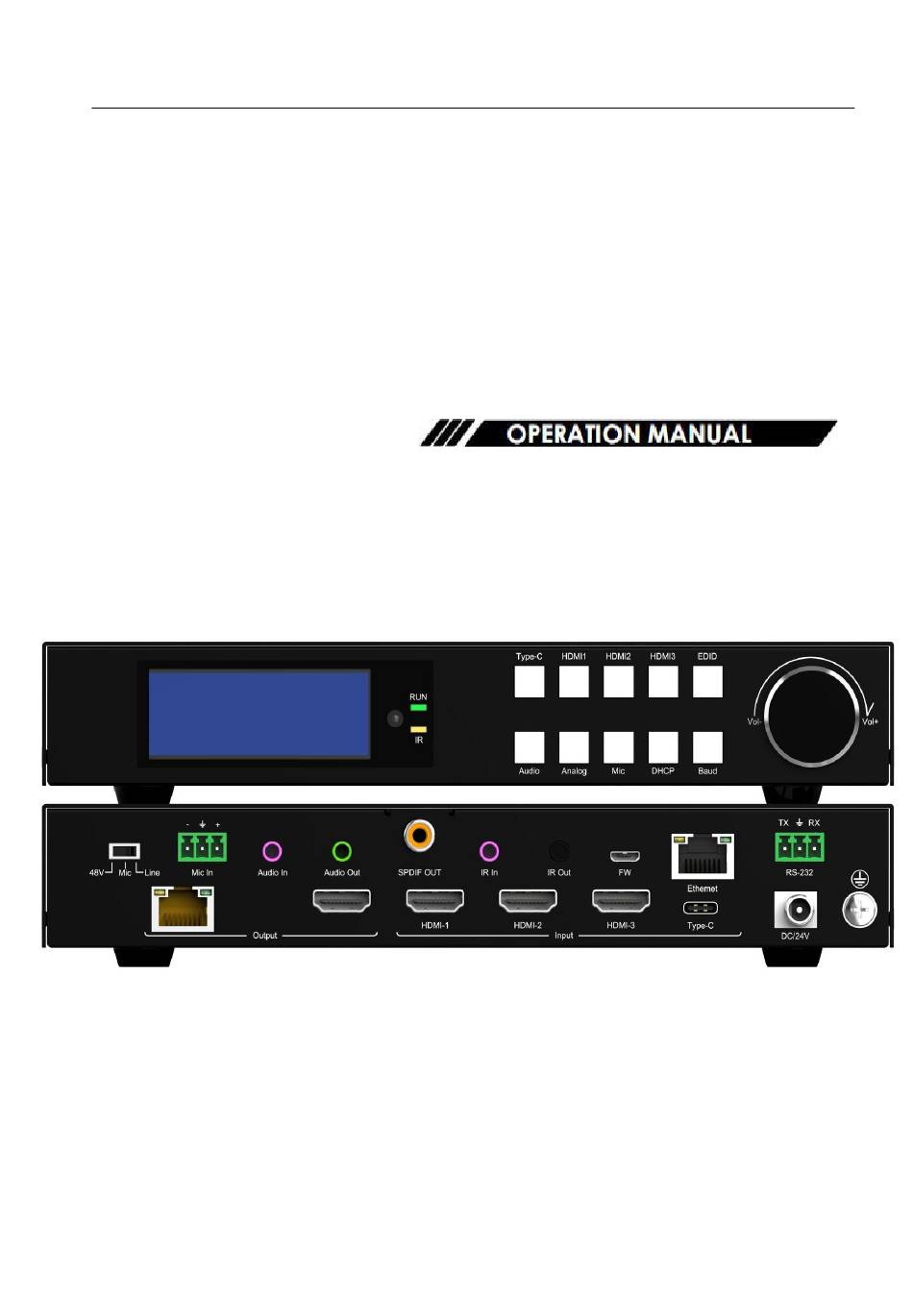

- Page 1 Operating Instruction HDMI 2.0 HDBaseT Switch with HDMI and USB-C inputs Support 4K@60hz YUV4:4:4, 18Gbps...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction CONTENT 1. Features ......................1 2. Package Contents ...................1 3. Specifications ....................2 4. Panel Descriptions ..................2 5 . Application Diagram ..................3 6. Panel Introduction ...................4 6.Audio Introduction ...................6 7. Remote Control Description ................7 8. Command Control ...................7 9. -
Page 4: Features
Operating Instruction 1. Features Incorporate HDBaseT technology HDMI 2.0 version support 18Gbps, Deep color up to 8 bit 3x HDMI input s support 4K@60HZ 4:4:4 and downscaler from 4K to 1080P 1x USB-C input support 4K@30HZ and 65W power charging 1x mir ror ed HDB ase T ou tput can tra nsmi t AV si gnal up to 70M 1080P, 40M 4K @ 60H z HDCP 1.4/2.2 compliant with advanced EDID management Support analog 3.5mm audio in and phoenix MIC in... -
Page 5: Specifications
Operating Instruction 3. Specifications Operating Temperature Range -5 to +40°C(23 to +104 °F) Storage Temperature Range - 10 to +60°C(14 to +140 °F) Operating Humidity Range 5 to 90 % RH (no condensation) Input Video Signal 0.5- 1.0 volts p-p Bandwidth 18Gbps 4K@60Hz,YUV4:4:4... -
Page 6: Rear Panel
Operating Instruction Rear Panel ①Slide Switch ②Mic input ③Audio input ④Audio output(analog&S/PDIF) ⑤IR(in & out) ⑥ Micro USB port for firmware update ⑦ Ethernet: IP/Web control ⑧RS232 ⑨Output( HDBaseT&HDMI) ⑩Input(3xHDMI, 1xUSB-C) ⑪ DC/24V 5 . Application Diagram... -
Page 7: Panel Introduction
Operating Instruction 6. Panel Introduction 1）LCD main interface used to display the input status corresponding to the output, when there is a display resolution on the right side, it shows a signal source access, if there is no resolution signal source input, it will display No signal. - Page 8 Operating Instruction 3）EDID Set: EDID can be set four modes, 4K60(built-in)、1080P(built-in)、copy HDMI、copy HDBT, Operation: Press “EDID” button, cyclic switch the EDID. 4）MIC in vol set: Mic sound range:0-80, max 80, Operation: Press“MIC”button, when the font background is white, rotate vol button to control the sound, decreasing to the left and increasing to the right.
-
Page 9: Audio Introduction
Operating Instruction 6）DHCP Set: By default Static IP address: 192.168.1.168, After opening DHCP, HDBaseT Switch will automatically distribute IP addresses based on the router. If there is no router, IP address will be default. Operation: Press shortly“DHCP”button, LCD shows On. Press again, LCD shows Off. 7）Baud Set: Device Baud support 9600、19200、38400、57600、115200. -
Page 10: Remote Control Description
Operating Instruction 7. Remote Control Description ①: Stand by ②: Mute: control audio switch ③: Input sources select 1. USB-C 2. HDMI 1 3. HDMI 2 4. HDMI 3 ④: Mic control +: Volume increase - : Volume decrease ⑤: Audio out +: Volume increase - : Volume decrease 8. - Page 11 Operating Instruction Please use USB to RS2 3 2 cable connect PC and device, open RS232 software. In the parameter configuration area, select the serial number that the serial port connect with PC, and set the baud rate of the communication protocol: 115200 (default), data bits: 8. Stop bits: 1, Parity: None, user can input the instruction in the command input area and control the machine or remote receiver.
-
Page 12: Web Control
Operating Instruction Operation: 1.Select video input: #video_d in1；it means switch to USB-C input 2.Audio embedding input: #audio_d enc=1 value=7；it means MIC sound set to 7 3.Audio IIS output settings: #audio_d iis=7；it means analog audio sound set to 7 4.EDID mode: #edid_d mode=2；it means copy HDMI EDID 5.Baud: #uart baud=0；it means baud set to 9600 6.DHCP: #ip dhcp=1；it means DHCP on 9. - Page 13 Operating Instruction Control interface: ①. Video input: video input switch Click any of Type C, HDMI 1, HDMI 2, or HDMI 3 to complete the switch, means switch done. ②. EDID Mode: EDID settings Click any of 4K60、1080P、HDMI or HDBT to complete the switch, means switch done.
-
Page 14: Network Interface
Operating Instruction 9.2 Network interface ①Device Mac Address: (unchangeable) ②Device IP Address:(changeable) ③Device Net Mask Address: (changeable) ④Device Gate Way Address: (changeable) ⑤DHCP ON/OFF: DHCP status(changeable) ⑥Apply: confirmation button Operation: 1.Click“IP Address”white box to change IP Address. 2.Click ”Net Mask Address”white box to change Net Mask Address. 3.Click”Gate Way Address”white box to change Gate Way Address. -
Page 15: Firmware Upgrade
Operating Instruction 10. Firmware Upgrade 10.1 MCU Upgrade 1). The user should use the CD in color-box, read and install software “ on PC; UART_ISP_V1.7.exe” 2). Connect unit to PC with USB cable from micro USB port, click “ software, REFRESH UART_ISP_V1.7.exe”... -
Page 16: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE (1) Damage requiring service: The unit should be serviced by qualified service personnel if: ( a) The DC power supply cord or AC adaptor has beendamaged; ( b) Objects or liquids have gotten into theunit;... -
Page 17: Limited Warranty Limits And Exclusions
Operating Instruction LIMITED WARRANTY LIMITS AND EXCLUSIONS 1 ). This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmeticdamage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set- up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification,...
