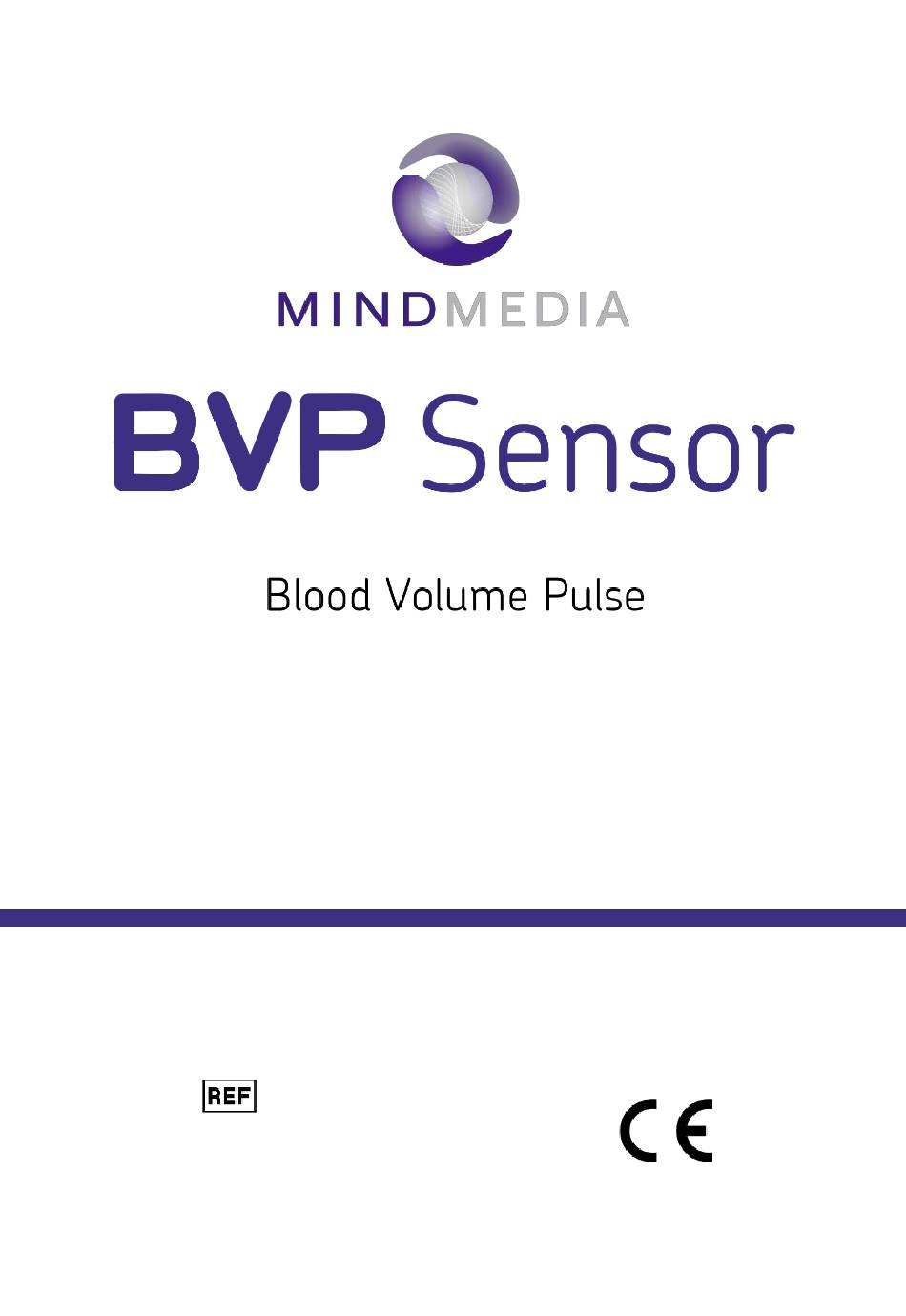

- Page 1 User manual 30-0100-0001 Rev 4.1 Last update: 2024-04-22...
-
Page 2: Table Of Contents
Table of Contents Explanation of markings ........2 About this manual ..........3 Warnings and precautions ........3 About the product ..........4 Intended use ..........5 Operating principle ........5 Warranty / Support ..........6 Sensor variants ............7 Contents of packaging ........ -
Page 3: Explanation Of Markings
1 Explanation of markings Compliant with applicable EU regulations, see declaration of conformity Device has type B applied parts Identification of the manufacturer Date of manufacture, YYYY-MM-DD Medical Device name / Product code Reference number / MM part number Unique Device Identifier, device identification part Device serial number Special EU instructions for disposal are applicable to a product on which this symbol is placed. -
Page 4: About This Manual
2 About this manual This manual is intended for the user of the BVP sensor accessory – referred to as ‘device’ throughout this manual. It contains general operating instructions, precautionary measures, maintenance instructions and information for use of the product. Read this manual carefully before starting to use the device. -
Page 5: About The Product
Media is not responsible for damage to devices and/or users caused by unauthorized combinations. Make sure to read the instructions for use of the compatible signal acquisition device which is part of the specific measurement set- The product should NOT be: stored or used near MRI equipment exposed to ionizing radiation used on patients undergoing electro surgery... -
Page 6: Intended Use
4.1 Intended use The BVP sensor provides a photoplethysmography (PPG) signal when connected to a NeXus signal acquisition device, that corresponds with variations in peripheral blood flow resulting from cardiovascular activity and responses, with the purpose of providing information on the cardiovascular variations such as heart rate variations and measured pulse amplitude. -
Page 7: Warranty / Support
Mind Media support reached email (support@mindmedia.com) or via our website. Please provide as much information as possible, including serial numbers of the used products. This will help us to support you in the best way possible. Contact Information Mind Media Europe B.V. -
Page 8: Sensor Variants
NC-BVP-H 80-0100-0004 sensor with head module 6.1 Contents of packaging The different product variants contain the following: NB-BVP-F / NC-BVP-F NB-BVP-H / NC-BVP-H BVP Sensor with finger clip BVP Sensor with head part BVP Sensor User Manual BVP Sensor User Manual... -
Page 9: Compatibility With Signal Acquisition Devices
7 Compatibility with signal acquisition devices Compatibility of the specific device variants with Mind Media signal acquisition devices is specified below. Signal acquisition Port / device variants variants Channel NeXus 4 C, D NeXus 10 (MKII) E, F, G, H NeXus 32F 29, 30, 31, 32 NeXus Q... -
Page 10: Accessories / Disposables
9 Accessories / Disposables Variant Accessories / Disposables NB-BVP-F / NC-BVP-F Not applicable BVP Head band accessory NB-BVP-H / NC-BVP-H (REF: 82-0100-0001) Page 9 of 14... -
Page 11: Maintenance
The device does not contain user serviceable parts. Maintenance is limited to regular cleaning at user discretion. Repairs can only be performed by the manufacturer, contact support@mindmedia.com in case of defects. Mind Media Support staff will determine whether a repair is required and possible. - Page 12 Environmental protection Special EU instructions for disposal are applicable to a product on which this symbol is placed. These instructions apply to all parts of the product. When the device has reached End of Life, it must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical...
-
Page 13: Technical Specifications
Total length NB-BVP-F / NC-BVP-F: 130 cm NB-BVP-H / NC-BVP-H: 127 cm Transducer size (l × NB-BVP-F / NC-BVP-F: 66 × 22 × 26 mm b × h) NB-BVP-H / NC-BVP-H: 12 × 16 × 6 mm (2x) Weight NB-BVP-F / NC-BVP-F: Approx. 75 g NB-BVP-H / NC-BVP-H: Approx. - Page 14 NB-BVP-F / NB-BVP-H: -2.0VDC to +2.0VDC NC-BVP-F / NC-BVP-H: 0.0VDC to +3.0VDC Sensor output (max.) NB-BVP-F / NC-BVP-F: 60 mV p-p NB-BVP-H / NC-BVP-H: 35 mV p-p Sensor output (typical) NB-BVP-F / NC-BVP-F: 30-40 mV p-p NB-BVP-H / NC-BVP-H: 15-25 mV p-p Noise <1 mV p-p...
- Page 15 Transportation Conditions Temperature -25 °C to +70 °C Humidity 15 % to 93 % Pressure 500 hPa to 1060 hPa Storage Conditions Temperature 0 °C to +40 °C Humidity 15 % to 93 % Pressure 500 hPa to 1060 hPa Usage Conditions Temperature +5 °C to +40 °C...
