3onedata RACK2100 Series Quick Installation Manual

RACK2100 Series
Industrial Multi-service Rack
Quick Installation Guide
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Xili,
Shenzhen
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the product for the first time.
1. Industrial multi-service rack x 1
3. Quick installation guide
5. Power line x 2
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
The series products are 2U industrial multi-service racks,
which could be used matching with management card and
daughter card. The models are as follows:
RACK2100(rack with front power supply)
Model I
RACK2100(rack with rear power supply)
Model II
Model III NMU(management card)
Model IV ECU101M(100M managed daughter card)
Model V ECU101(100M unmanaged daughter card)
Model VI ECU100M-1GT1GF(1 Gigabit copper port + 1
Gigabit fiber daughter card)
Model VII ECU100M-1GT2GS(1 Gigabit copper port + 2
Gigabit SFP slot daughter cards)
Model VIII ECU100M-2GT1GF(2 Gigabit copper ports + 1
Gigabit fiber daughter card)

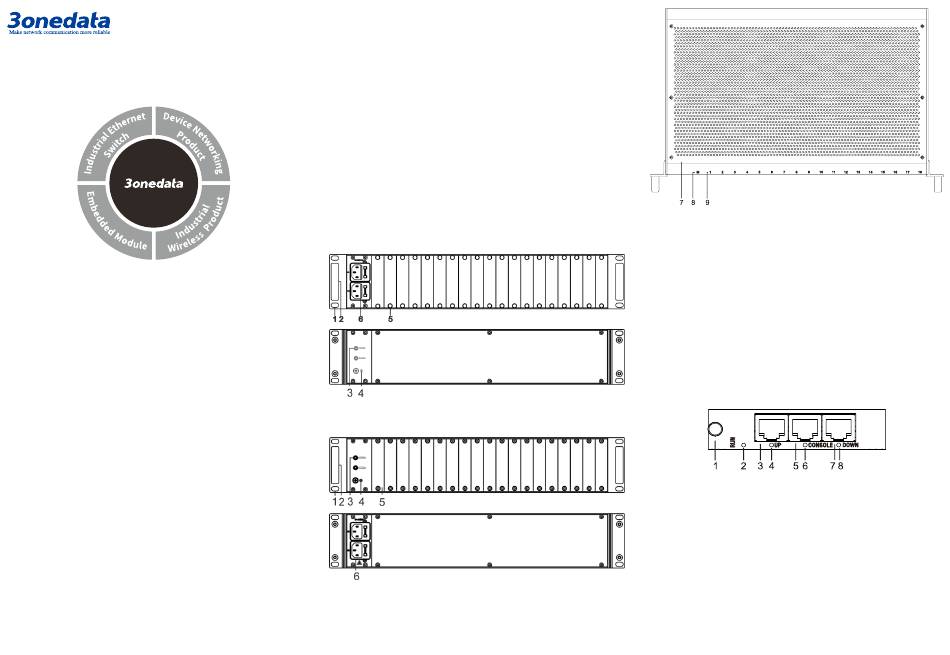

【Rack Panel Design】
➢ Rack
⚫ Front output power supply scheme: Front panel and
Back panel (default)
Nanshan District,
⚫ Back output power supply scheme: Front panel and
Back panel
2. Certification
4. Warranty card
⚫ Top panel
Location hole of rack mounting
1.
Handle (Removable)
2.
Power supply connection indicator (Power 1~2)
3.
Shell grounding screw
4.
Panel back up plate (Suit for untapped slot)
5.
Redundant AC power supply input socket (P1~2)
6.
Heat emission hole
7.
Management card identification (M)
8.
Daughter card identification (1~18)
9.
【Management Card Panel Design】
⚫ Management Card (Special for managed products)
Spring screw (Fixed panel card)
1.
Device running status indicator (RUN)
2.
Upward cascade 100M/gigabit Ethernet copper
3.
port (UP)
UP port connection indicator
4.
Console control management port
5.
Console port connection indicator
6.
Downward cascade 100M/gigabit Ethernet copper
7.
port (DOWN)
DOWN port connection indicator
8.
