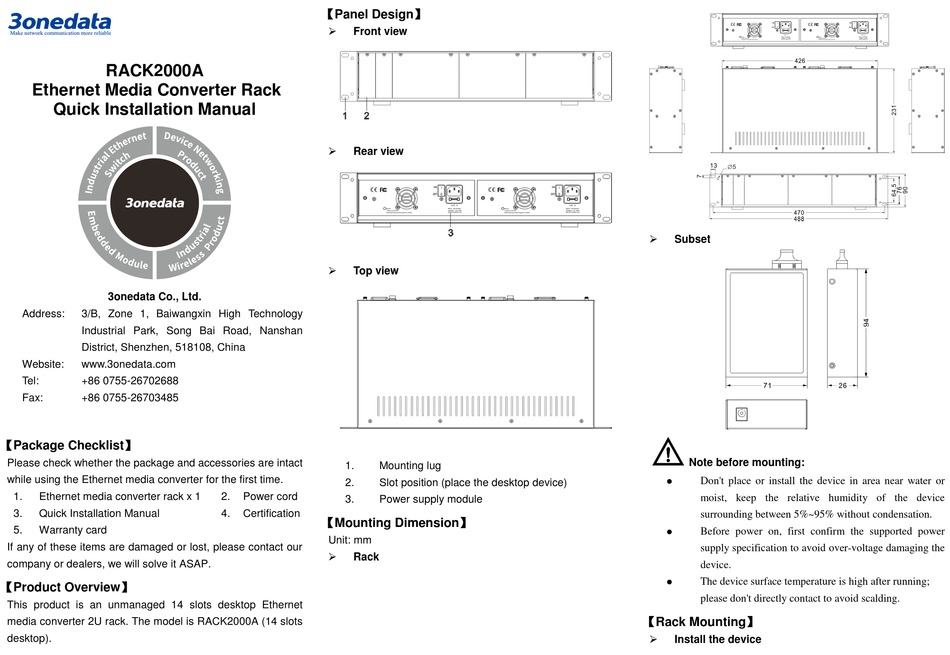

3onedata RACK2000A Quick Installation Manual

RACK2000A
Ethernet Media Converter Rack
Quick Installation Manual
3onedata Co., Ltd.
Address: 3/B, Zone 1, Baiwangxin High Technology
Industrial Park, Song Bai Road, Nanshan
District, Shenzhen, 518108, China
Website: www.3onedata.com
Tel: +86 0755-26702688
Fax: +86 0755-26703485
【Package Checklist】
Please check whether the package and accessories are intact
while using the Ethernet media converter for the first time.
1. Ethernet media converter rack x 1
3. Quick Installation Manual
5. Warranty card
If any of these items are damaged or lost, please contact our
company or dealers, we will solve it ASAP.
【Product Overview】
This product is an unmanaged 14 slots desktop Ethernet
media converter 2U rack. The model is RACK2000A (14 slots
desktop).
【Panel Design】

Front view

Rear view

Top view
1. Mounting lug
2. Slot position (place the desktop device)
2. Power cord
3. Power supply module
4. Certification
【Mounting Dimension】
Unit: mm

Rack

Subset
Note before mounting:
 Don't place or install the device in area near water or
moist, keep the relative humidity of the device
surrounding between 5%~95% without condensation.
Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the
device.
 The device surface temperature is high after running;
please don't directly contact to avoid scalding.
【Rack Mounting】

Install the device
