Elsema PentaFOB FOB43301WP Manual

Waterproof PentaFOB
433MHz Waterproof Remotes with Frequency Hopping
FEATURES
 Waterproof Keyring Remotes (IP66)
 Option of 1, 2, 4 or 5 channels
 Simultaneously transmits the encrypted
code on 5 different frequencies, making it
difficult for the remote to be interfered with
or jammed
 Uses frequency hopping spread spectrum
(FHSS)
 One of the most secure remote controls on
the market
 Designed in Australia
 Compatible with PCR Penta series of receivers
APPLICATIONS
 Keyless access control for automatic gates and doors
 Home automation i.e. garden lights, swimming pool control etc
 Wireless security, lighting and automotive controls
.... and anywhere else you need a wireless signal to transmit a contact closure
DESCRIPTION

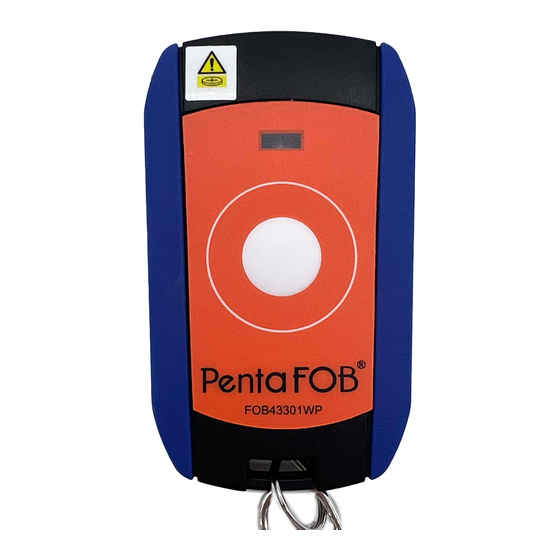

The Waterproof PentaFOB
receivers. It uses frequency hopping spread spectrum (FHSS). This means that when a button is pressed, it
simultaneously transmits the encrypted code on five different frequencies. This makes it difficult for your
remote control to be interfered with or jammed.
Available in 1, 2, 4 and 5 button configurations.
The keyring retainer is moulded as part of the chassis making for a super sturdy keyring mount.
OEM CONFIGURATION
®
The PentaFOB WP series is an extremely versatile remote control that can be customized through a range of
configurations and colors to suit your needs.
TECHNICAL DATA
Operating Voltage
Battery life
Frequency Band
Operating range
Operating Temperature
Range
Decoding System
Weight
Remotes
®
® works in conjunction with our standard PentaFOB
3 Volt Battery (CR2032)
2 years with average use
433.100 to 434.700MHz
up to 100 metres depending on building structure and receiver antenna
-5 to 50°C
Encrypted 17 billion codes combinations
38 grams
433MHz Keyring Waterproof Remotes – FOBWP Series
® remotes and PCR series of
ELSEMA
