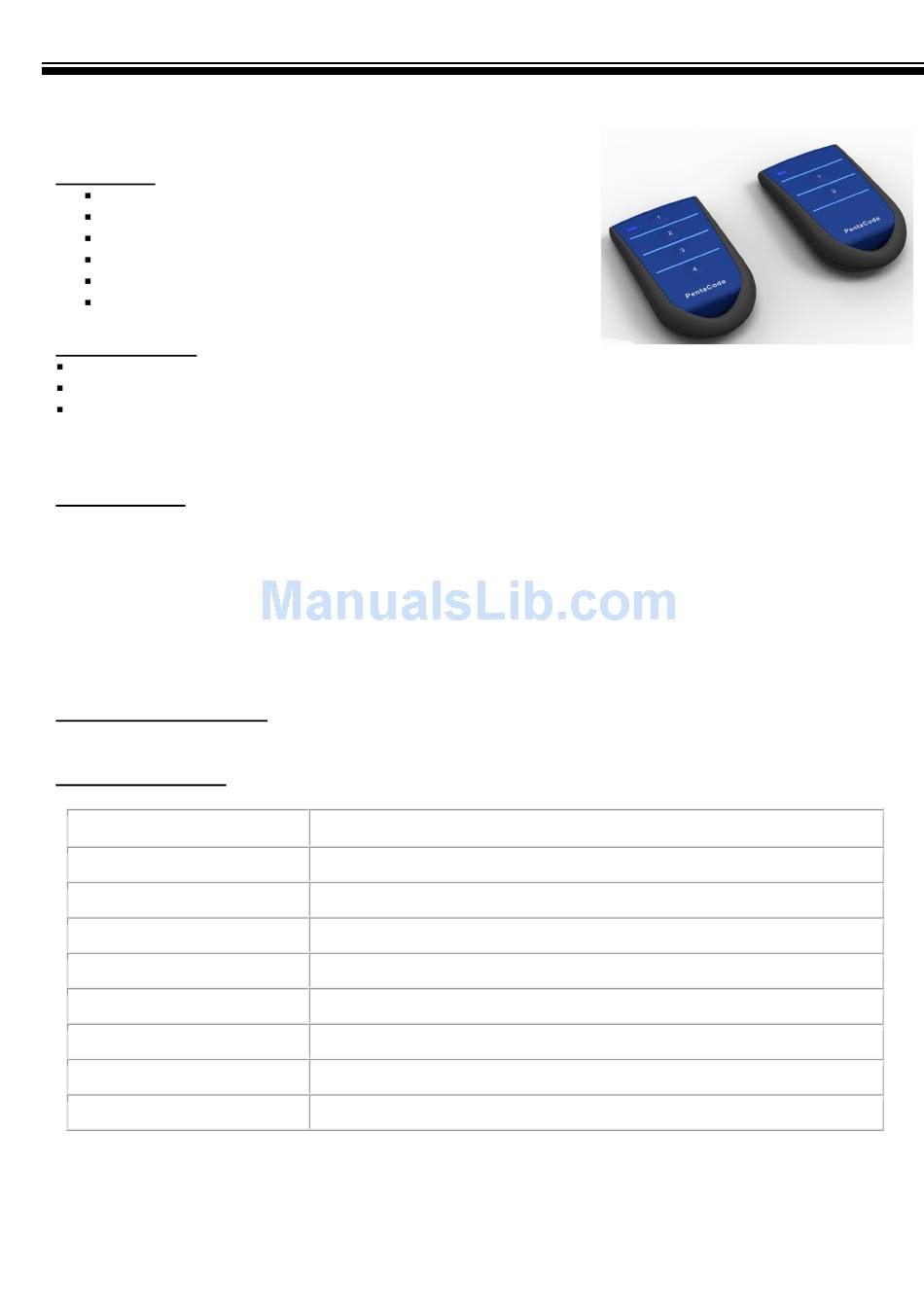

PCK43302, PCK43304
433MHz Penta series Keyring Remotes with Frequency Hopping
FEATURES
Small Size keyring remote with 2 or 4 buttons
Dual Coding System, dip switch and encrypted code
Transmission on 5 different frequencies
Uses frequency hopping spread spectrum (FHSS)
One of the most secure remote controls on the market
FCC and AS/NZS 4268 pre-certified
APPLICATIONS
Keyless access control for automatic gates and doors
Home automation i.e. garden lights, swimming pool control etc.
Wire security, lighting and automotive controls
.... and anywhere else you need a wireless signal to transmit a contact closure
DESCRIPTION
®
The PentaCode
dual coding system gives the installer the option to use the classic 12-way dip switch coding or
one of over 17 billion encrypted codes.
With the 12-way dip switch, just match the keyring remotes and the receiver's dip switch and it's coded. No
need for programmers, memory chips or computer databases to store the code.
With the encrypted code you switch all the 12- way dip switches OFF and the remote and receiver automatically
goes into the encrypted coding.
OEM CONFIGURATION
Elsema can customise keypad text and back labels to suit customer needs. Contact Elsema for more details.
TECHNICAL DATA
Operating Voltage
Standby Current
Current Consumption
Battery life
Frequencies
Operating range
Operating Temperature Range -5 to 50°C
Decoding System
Weight
12 Volt Battery
1.8uA
18mA (typical) at 12 Volts DC supply during transmission
1.5 years with average use
433.100 to 434.700MHz
up to 80 metres depending on building structure and receiver antenna
Encrypted 17 billion codes combinations or On board 12-way code switch
30 grams
433MHz Keyring Remote with Frequency Hopping – PCK Series
ELSEMA
