Summary of Contents for Woods ITF504801

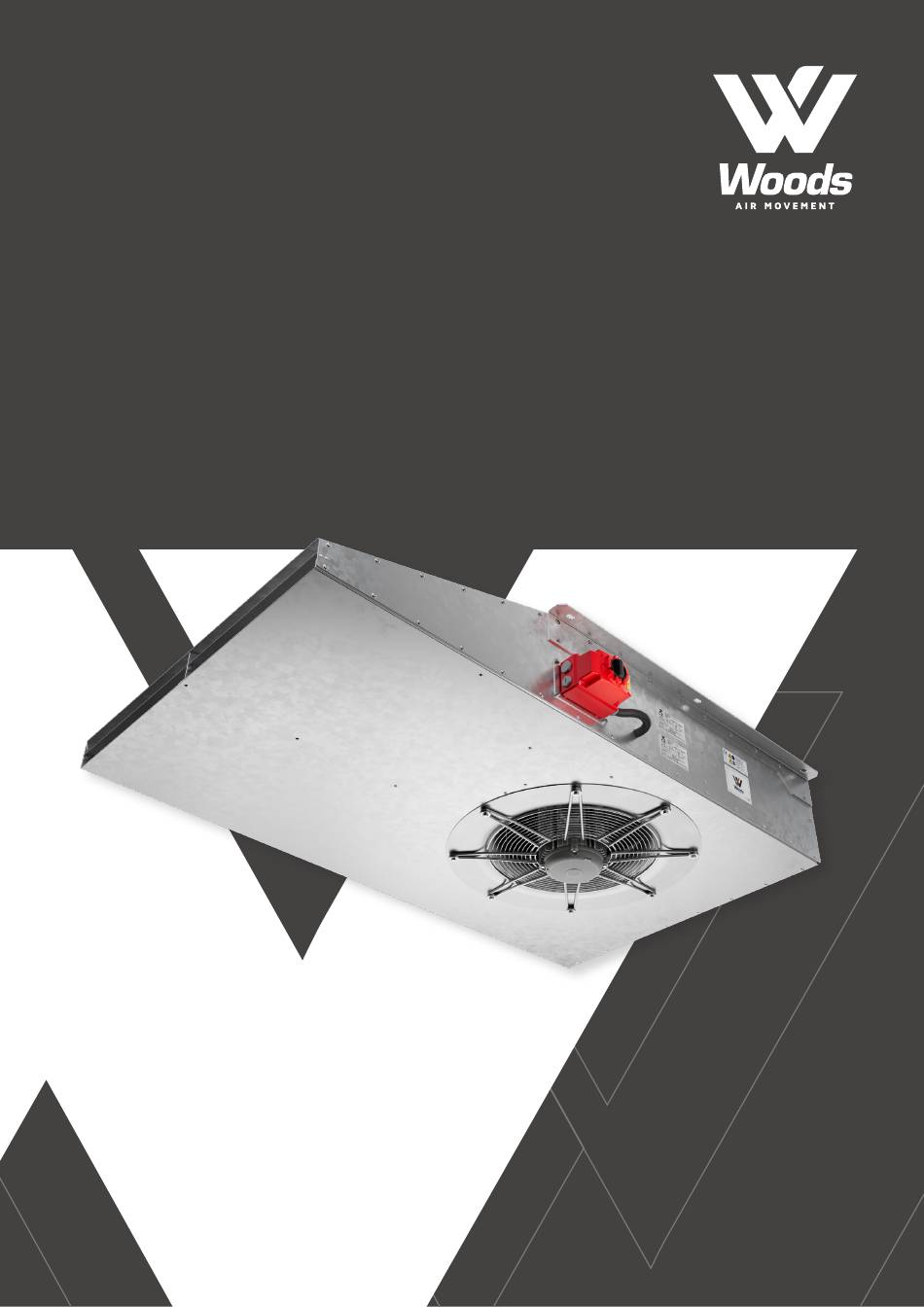

- Page 1 INDUCTION THRUST FANS Safety, installation and maintenance instructions. PART NO. 401074...
-
Page 2: Table Of Contents
CONTENTS PAGE 1 ABOUT THIS MANUAL 1.1 VALIDITY ......................1.2 TARGET GROUP . -
Page 3: About This Manual
This leaflet must be passed to the user to enable the fan to be maintained in a safe condition. These operating instructions are an integral part of the Induction Thrust Fan. Woods Air Movement shall not accept any liability or provide any warranty cover for primary damage or secondary damage arising as a consequence of disregarding these operating instructions. -
Page 4: Designated Use
NOTES Steps required for easier or safe work. Other Symbols and Markings SYMBOL/MARKING MEANING Requirement for an operation Operation with one step 1..2..Operation with several steps 3.. • ACCENTUATION (BOLD) For emphasis 2. -
Page 5: Safety
3. SAFETY 3.1. PRODUCT SAFETY Woods Air Movement fans offer a high degree of operational safety and high quality standards guaranteed by a certified Quality Management System (EN ISO 9001). Before leaving the factory all the fans are inspected and sealed with a mark of conformity. -
Page 6: Structural Modifications, Spare Parts
Wear protection gloves. 3.7. STRUCTURAL MODIFICATIONS, SPARE PARTS Caution: Unauthorised structural modifications may not be made to the fan. Woods Air Movement will not accept liability for any damage arising as a result of any modifications. Use only genuine spare parts supplied by Woods Air Movement. -
Page 7: Product Description

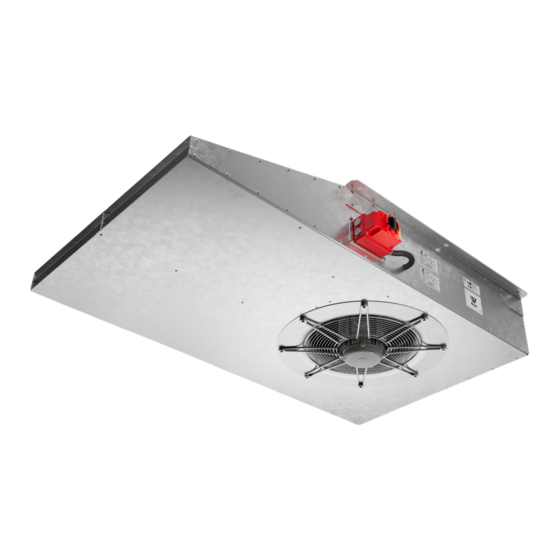

4. PRODUCT DESCRIPTION 4.1. INDUCTION THRUST FANS The air intake of the induction fan is at the lower side. The air is conveyed over the motor and then directed towards a horizontal discharge nozzle. The impeller is pressed and formed galvanised steel sheet bolted to a cast iron control boss and the casing is also made of galvanised sheet steel. -
Page 8: Installation
6. INSTALLATION 6.1. SAFETY INSTRUCTIONS FOR INSTALLATION Observe the safety instructions and preventive measures in Section 3 and the relevant local legal requirements. 6.2. INSTALLATION PREPARATION 1. Ensure place of installation suitable for the Induction Thrust Fan in terms of its category, condition, ambient temperature and environmental media (Check with certificate). -
Page 9: Electrical Connection
7. ELECTRICAL CONNECTION 7.1. SAFETY INSTRUCTIONS FOR ELECTRICAL CONNECTION CAUTION! Danger of electric shock! WARNING! Observe the safety instructions and preventive measures in Section 3 and all relevant legal requirements. CAUTION! In order to prevent unexpected operation an isolator switch or terminal box is provided. CAUTION! When connecting the Induction Thrust Fan, special attention should be paid to cable routing! •... -
Page 10: Motor Protection
7.3. MOTOR PROTECTION CAUTION! No standard motor overheat protection has been provided by the supplier! If overheat protection is fitted, in the event of fire all motor protection devices must be automatically by-passed and/or deactivated. 7.4. CARRYING OUT A TEST RUN Risk of injury from rotating impeller! DANGER! Never reach into the impeller when the fan is open... -
Page 11: Maintenance
Thrust Fan installation. CAUTION! Repair or major maintenance works have to be made in the works of the manufacturer or by staff persons from Woods Air Movement or by persons of companies which are authorised by Woods Air Movement. 9.2. MAINTENANCE PREPARATION 1. - Page 12 Servicing: Replacement of Fan Assembly (Disconnect conduit and wires form isolator first) [1] disconnect fan cable from isolator [2] remove motor-impeller-inlet assembly to allow for maintenance CAUTION! HEAVY DANGER! Before loosening the bolts that secure the motor impeller ( 3 ) ensure the unit is secure and will not fall.
-
Page 13: Observing Regular Inspection Intervals
The requirements for CE conformity are no longer met if spare parts supplied by other manufacturers are fitted. Woods Air Movement shall not accept any liability or provide any warranty cover in respect of primary or secondary damage arising as a consequence of using spare parts supplied by other manufacturers. -
Page 14: Wiring Diagrams
DRAWN BY DATE CHECKED BY DATE APPROVED BY DATE Fläkt Woods Limited. This drawing and any descriptive matter set out hereon are the confidential and copyright property of the named company and must not be Approved Manufacture 13/06/2024 19/06/2024 20/06/2024 AXIAL WAY, COLCHESTER, ESSEX, CO4 5ZD, UK. -
Page 15: Further Documentation
13. FURTHER DOCUMENTATION EC DECLARATION OF CONFORMITY TO EC MACHINERY DIRECTIVE (98/37/EC) - Page 16 Woods Air Movement delivers smart and energy efficient Air Movement and Fire Safety solutions to support every application area. We offer our customers innovative technologies, high quality and outstanding performance supported by more than fifty years of accumulated industry application experience.
