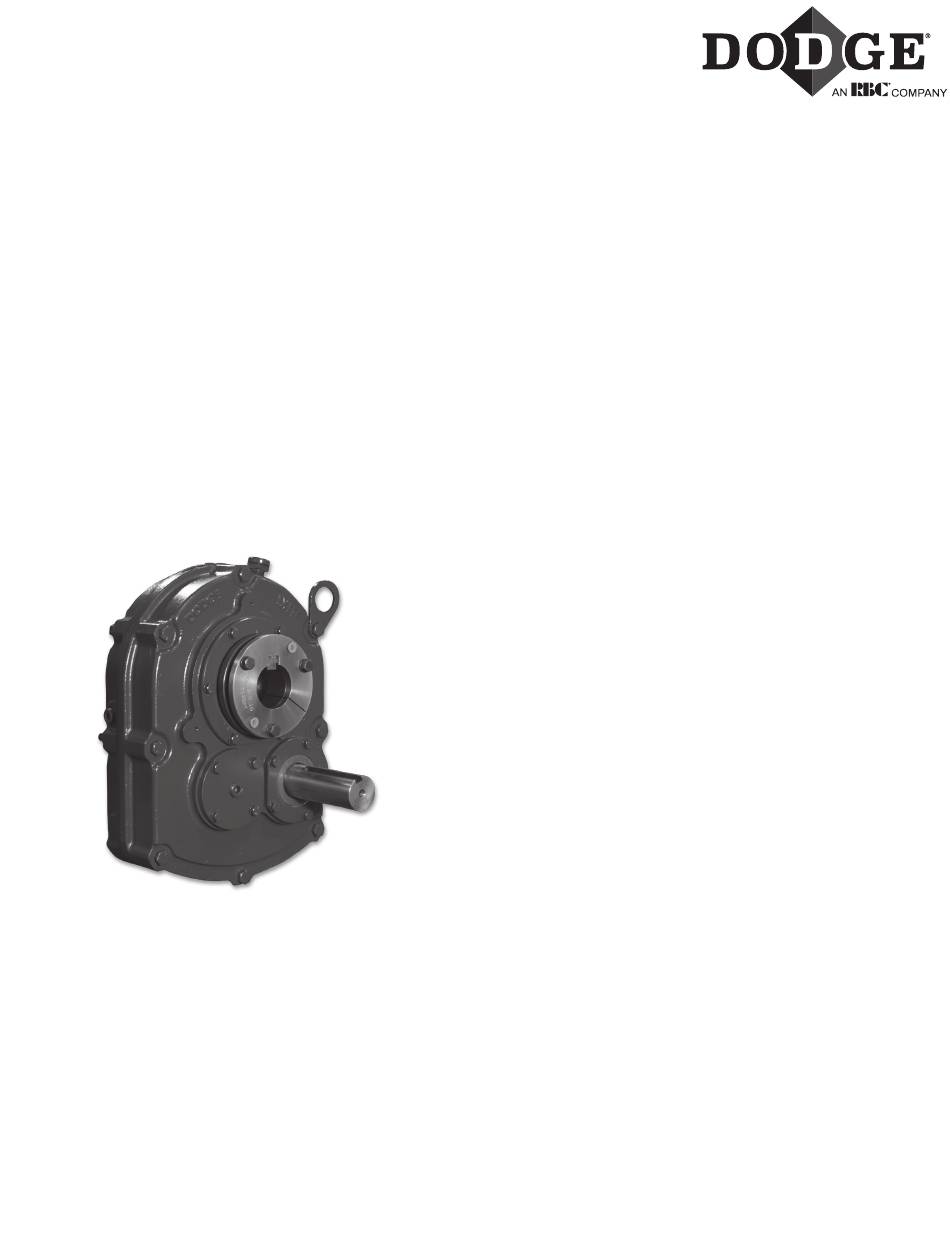

RBC DODGE TXT/HXT 1E Instruction Manual

Tapered-Bushed and Straight-Bore Speed Reducers
These instructions must be read thoroughly before installation or operation. This instruction manual was accurate at the time of
printing. Please see dodgeindustrial.com for updated instruction manuals.
WARNING: To ensure the drive is not unexpectedly started, turn off and
lock-out or tag power source before proceeding. Failure to observe these
precautions could result in bodily injury.
WARNING: Because of the possible danger to person(s) or property
from accidents which may result from the improper use of products,
it is important that correct procedures be followed. Products must be
used in accordance with the engineering information specified in the
catalog. Proper installation, maintenance and operation procedures
must be observed. The instructions in the instruction manuals must
be followed. Inspections should be made as necessary to assure
safe operation under prevailing conditions. Proper guards and other
suitable safety devices or procedures as may be desirable or as may
be specified in safety codes should be provided, and are neither
provided by Dodge nor are the responsibility of Dodge. This unit and
®
its associated equipment must be installed, adjusted and maintained
by qualified personnel who are familiar with the construction and
operation of all equipment in the system and the potential hazards
involved. When risk to persons or property may be involved, a holding
device must be an integral part of the driven equipment beyond the
speed reducer output shaft.
Torque-Arm TXT Double-Reduction
Instruction Manual
TXT/HXT 1E
TXT/HXT 2E
TXT/HXT 3E
TXT/HXT 4E
Includes Char-Lynn 6B Hydroil Reducers
HXT 3E–6B
HXT 4E–6B
TXT/HXT 5E
TXT/HXT 6E
TXT/HXT 7E
HXT 5E–6B
WARNING: All products over 25 kg (55 lbs) are noted on the shipping
package. Proper lifting practices are required for these products.
INSTALLATION
1. Use lifting bracket where applicable to lift reducer.
2. Determine the running positions of the reducer (see Figure 1).
Note that the reducer is supplied with six plugs; four around
the sides for horizontal installations and one on each face for
vertical installations. These plugs must be arranged relative
to the running positions as follows:
Horizontal installations
Install the magnetic drain plug in the hole closest to the
bottom of the reducer. Install the filter/ventilation plug in
topmost hole. Of the two remaining plugs on the sides of
the reducer, the lowest plug is the minimum oil level plug.
Vertical installations
Install the filter/ventilation plug in the hole provided in the
upper face of the reducer housing. If space is restricted
on the upper face, install the vent in the highest hole on
the side of the reducer per Figure 1 using the optional
vertical vent kit. Install a plug in the hole in the bottom
face of the reducer. Do not use this hole for the magnetic
drain plug. Install the magnetic drain plug in the lowest
hole on the sides of the reducer. Of the remaining holes
on the sides of the reducer, use the plug in the upper
housing half for the minimum oil level plug.
NOTE: This reducer is compatible with Dodge sensors,
that can be installed in the adapter plug. The plug and
sensor can be moved to different locations as required by
mounting position.
1
TXT 8E
TXT 9E
TXT 10E
TXT 12E
HXT 6E–6B
HXT 7E–6B
