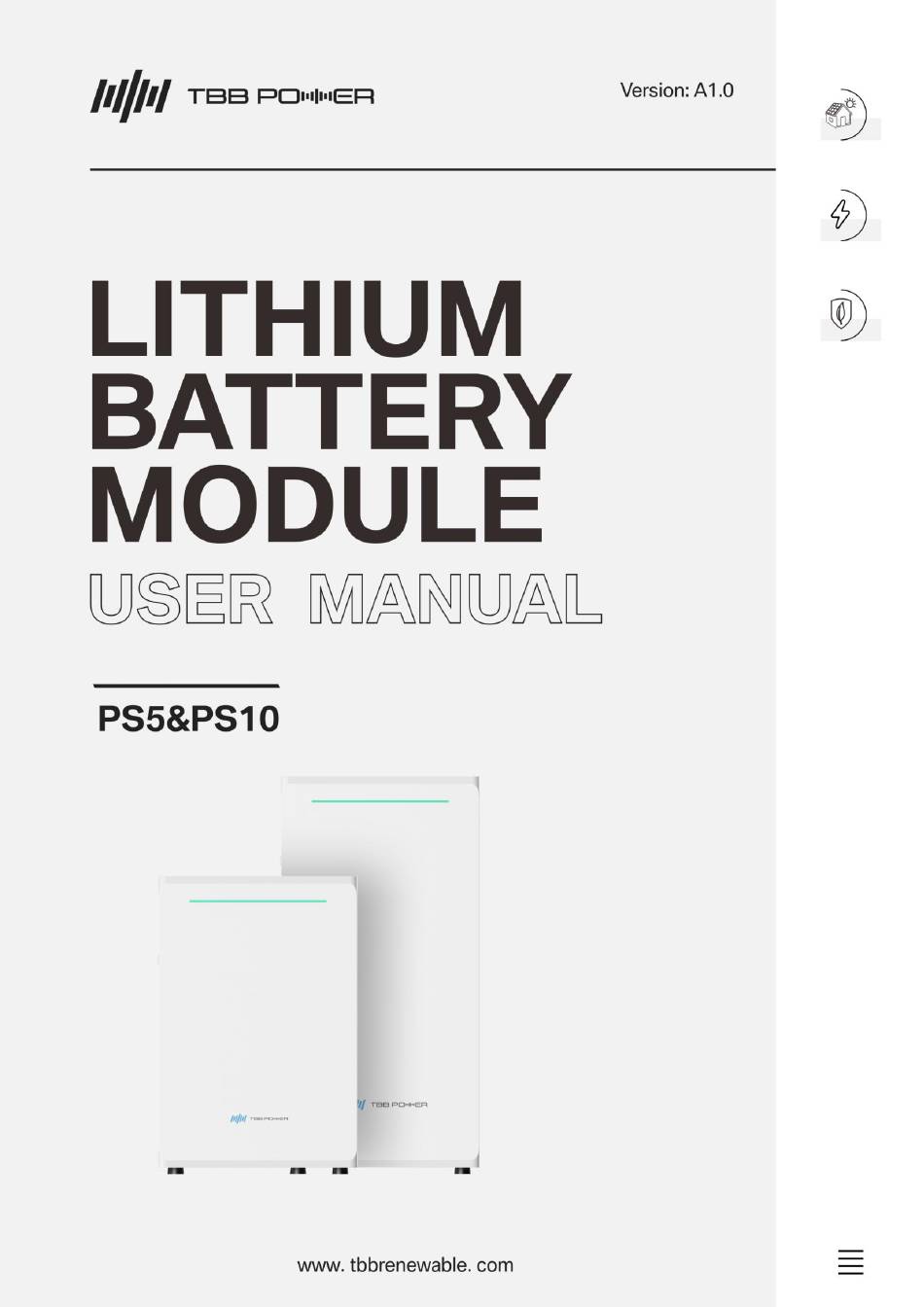

- Page 2 Power Stack 5&10 ESS Unit User Manual WARNING: HIGH VOLTAGE IN SIDE CAUTION: THE DC FUSE MUST HAVE BEEN TURNED OFF BEFORE SERVICING MADE IN CHINA...
- Page 3 Power Stack 5&10 ESS Unit user manual Statement of Law Copyright of this document belongs to TBB Renewable (Xiamen) Co., Ltd. None of the content within this documentation may be excerpted, reproduced, translated, annotated, or duplicated in any form or by any means without prior written authorization from TBB Renewable (Xiamen) Co., Ltd.
-
Page 4: Safety Precautions
Power Stack 5&10 ESS Unit user manual Safety Precautions Warning Please refrain from submerging the battery in water or exposing it to fire, in case of explosion or any other situation that might endanger your life. Please connect wires properly while installing the battery, do not reversely connect them. To avoid short circuit, please do not connect positive and negative poles with conductor (wires for instance). -
Page 5: Table Of Contents
Power Stack 5&10 ESS Unit user manual Contents 1. Introduction ..........................1 1.1 Brief Introduction ........................ 1 1.2 Product Properties ......................1 1.3 Product identity definition ....................2 2. Product Specification ........................3 2.1 Size and Weight ......................... 3 2.2 Performance Parameter ..................... 4 2.2.1 Front Panel Interface Definition ................ -
Page 6: Introduction
Power Stack 5&10 ESS Unit user manual 1. Introduction 1.1 Brief Introduction Power Stack 5&10 is 48V lithium battery pack. it is a perfect solution for residential and small commercial applications. Besides floor-mounted installation, Power Stack 5&10 also supports wall- mounted installation to save your valuable space. -
Page 7: Product Identity Definition
Power Stack 5&10 ESS Unit user manual 1.3 Product identity definition B4850 ESS Unit User Manual Figure 1-1 Battery Energy Storage System nameplate Battery voltage is higher than safe voltage, direct contact with electric shock hazard. Be careful with your actions and be aware of the dangers. Read the user manual before using. -
Page 8: Product Specification
Power Stack 5&10 ESS Unit user manual 2. Product Specification 2.1 Size and Weight Power Stack 5 Power Stack 10... -
Page 9: Performance Parameter
Power Stack 5&10 ESS Unit user manual Nominal Nominal Product Dimension Weight Voltage Capacity DC48V 105Ah 484×195×725.5mm 54kg PS10 DC48V 210Ah 484×195×968mm 94kg 2.2 Performance Parameter Item PS10 Configuration 15S1P 15S2P Nominal Voltage (V) Nominal Capacity (Ah) Nominal Energy (kWh) 5.04 10.08 Standard charge current (A) -
Page 10: Front Panel Interface Definition
Power Stack 5&10 ESS Unit user manual 2.2.1 Front Panel Interface Definition 1 2 3 4 5 6 7 10 11 12 13 14 15 16 17 Item Name Definition Mounting bracket Mounting bracket for securing the module in place Communication port Communication cable outlet Address DIP switch... -
Page 11: Address
Power Stack 5&10 ESS Unit user manual Item Name Definition Red light flashes when an alarm occurs. Red light is always on during protection status. When the battery is no longer under protection, it will be automatically off. Negative socket Connect to battery negative output cable Positive socket Connect to battery positive output cable... - Page 12 Power Stack 5&10 ESS Unit user manual Table 2-5 PS5 Master setting DIP switch Slave Description Quantity 2 pcs in parallel 3 pcs in parallel 4 pcs in parallel 5 pcs in parallel 29 pcs in parallel 30 pcs in parallel...
-
Page 13: Communication Port Definition
Power Stack 5&10 ESS Unit user manual 2.2.3 Communication Port Definition Table 2-7 defines the pins of each interface. Power Stack 5&10 is designed with 3 RJ45 ports. The CAN port is used for CAN or RS485 communication with the inverter, and the Parallel Ports In Parallel Ports Out are used for... - Page 14 Power Stack 5&10 ESS Unit user manual 2.2.4 LED Explanations System Status Battery SoC LED Shutdown Hibernate All OFF Normal Flash 1 Indicate based on the battery SoC Alarm Flash 3 Flash 3 Standby Slave module address Flash 1 Flash 4 assignment failed Normal Indicate based on the battery SoC...
-
Page 15: Soc Light Display And Corresponding Battery Capacity
Power Stack 5&10 ESS Unit user manual Table 2-8 SoC light display and corresponding battery capacity Status Charging Discharging Capacity indicator 0~25% Flashing 25~50% Flashing 50~75% Flashing 75~100% Flashing Running indicator Flashing 2.3 Battery Management System (BMS) 2.3.1 Voltage Protection Low Voltage Protection during Discharging Process：... -
Page 16: Temperature Protection
Power Stack 5&10 ESS Unit user manual 2.3.3 Temperature Protection Less/Over Temperature Protection during Charging Process： If the battery's temperature exceeds the specified range of 0℃ to +55℃ during the charging process, the temperature protection mechanism will activate, causing the device to halt the charging procedure. -
Page 17: Installation And Configuration
Power Stack 5&10 ESS Unit user manual 3. Installation and Configuration 3.1 Ready for installation Safety Requirement This system can only be installed by personnel who have been trained on the power supply system and have sufficient knowledge of the power system. The safety regulations and local safety regulations listed below should always be followed during the installation. -
Page 18: Tools And Data
Power Stack 5&10 ESS Unit user manual 3.1.2 Tools and data Hardware tool Tools and meters that may be used are shown in table 3-1. Table 3-1 Tool instrument Name Screwdriver (word, cross) AVO meter Wrench Clamp meter Inclined pliers Insulating tape Needle nose pliers The thermometer... -
Page 19: Unpacking Inspection
If the internal packing is damaged, it should be examined and recorded in detail. The packing list is as follows: Table 3-2 Item Specification Quantity Figure Battery PS5 or PS10 Mounting bracket Black Communication /L2000mm /Double cable-to inverter RJ45 plug User Manual... -
Page 20: Engineering Coordination
Power Stack 5&10 ESS Unit user manual Crown Screws Screw M6*40 Expansion bolts M8*40 3.1.5 Engineering coordination Attention should be paid to the following items before construction: Power cable specification. The power cable specification shall meet the requirements of maximum discharge current for each product. -
Page 21: Equipment Installation
Power Stack 5&10 ESS Unit user manual 3.2 Equipment installation Table 3-3 Installation steps Ensure that the ON/OFF switch on the front panel Installation Step1 of the battery is set to the "OFF" position to prevent preparation any live operation. 1. -
Page 22: Mechanical Installation
Notes: 1) Choose an appropriate wall that can support the total weight of the battery system (PS10: 100kg/PS5: 60kg) and is thick enough to securely anchor the expansion bolts. The wall should have one of the following characteristics: Regularly spaced wooden studs... - Page 23 Power Stack 5&10 ESS Unit user manual 2) Secure the mounting bracket onto the wall. Ensure the mounting bracket is level, and a level tool may be required. Expansion bolt positions: A total of 12 holes, as shown in Figure 3-3. For concrete, brick, or metal stud walls, select 6 (hole 1 to 6) holes for fastening.
-
Page 24: Electrical Installation
Please note the installation height of the mounting bracket: For PS10, the height from the ground to hole 1 should be between 680mm and 690mm. For PS5, the height from the ground to hole 1 should be between 495mm and 505mm."... -
Page 25: Use, Maintenance And Troubleshooting
Power Stack 5&10 ESS Unit user manual 4. Usage,maintenance and troubleshooting 4.1 Battery system usage and operation instructions After completing the electrical connection, please follow these steps to start the battery system. 1. Refer to 2.3.2 for the definition of the DIP switch and prepare for the DIP before turning on the system, and then turn the switch ON/OFF to ON. -
Page 26: Alarm Description And Handling
Power Stack 5&10 ESS Unit user manual Table4-2 a) The battery's long-term continuous charging current should be ≤0.5C Charging b) If the battery capacity is empty, please charge it within 48 hours after the battery is empty. Equipment c)The long-term continuous discharge current of the battery should be ≤1C Discharging d)The recommended maximum depth of discharge (DoD) of... -
Page 27: Analysis And Treatment Of Common Faults
Power Stack 5&10 ESS Unit user manual 4.3 Analysis and treatment of common faults Analysis and remedies for common faults are outlined in Table 4-4: Table 4-4 Analysis and treatment of common faults Fault phenomenon Reason analysis Solution The indicator does not Power switch is broken Check the power switch respond after it is powered on The DC power supply... - Page 28 Power Stack 5&10 ESS Unit user manual...
