Summary of Contents for Bushnell ENGAGE LE1700SBL

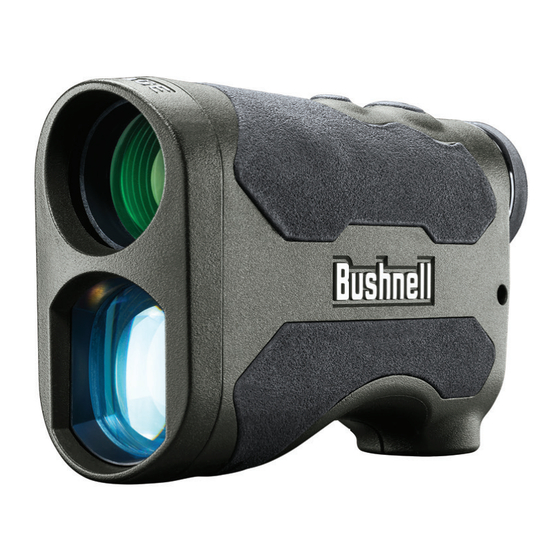

- Page 1 LASER RANGEFINDER OWNER’S GUIDE Model #: LE1700SBL/ LE1300SBL 6-19...
-
Page 2: Parts Guide
INTRODUCTION Your Bushnell® Engage™ is an ultra compact, premium laser rangefi nder with the latest Digital Technology, providing precise range readings from 5-1700 yards/5-1554 meters (for model LE1700SBL. Max range is 1300 y/1189 m for model LE1300SBL). -
Page 3: Basic Operation
Battery Level Indicator Icon (3): Full charge 3/4 battery level remaining 1/2 battery level remaining 1/4 battery level remaining Battery icon blinks - battery needs to be replaced and unit will not be operable. BASIC OPERATION • While looking through the laser rangefinder, press and release the Power/Fire button to activate the display. •... -
Page 4: Using The Setup Menu
• BullsEye Mode with Automatic SCAN (LCD Indicator (6) - ) This advanced mode allows easy acquisition of small ™ targets and game without inadvertently getting distances to background targets that have stronger signal strength. When more than one object has been acquired, only the distance of the closest object will be displayed. With the rangefinder in BullsEye mode, align the aiming circle onto the object (i.e. - Page 5 Rifle icon (2), along with the letter for the ballistic group for your preferred ammo (or load). Knowing Which Ballistic Group To Select Bushnell engineers have researched currently available ballistic data and grouped many of the most popular calibers and loads into eight ballistic groups (A,B,C,D,E,F,G,H). Once you know what caliber and load you are shooting simply look through the chart to determine which one of the eight ballistic groups match with your particular load and caliber.
- Page 6 Remington Arms .308 dia. 30-06 Springfield, 180 gr. BRPT at 2700 FPS Winchester .308 dia. 30-06 Sprg, 180 gr. FailSafe at 2700 FPS Winchester .308 dia. 30-06 Sprg, 180 gr. Partition Gold at 2750 FPS Federal Cartridge.308 dia. 300 WSM, 180 gr. AccuBond at 2960 fps Federal Cartridge.308 dia.
-
Page 7: Troubleshooting
All exterior lens surfaces have our new EXO Barrier™ coating (in addition to full multi-coating). EXO Barrier, quite simply, is the best protective lens coating technology Bushnell has ever developed. Added at the end of the coating process, EXO Barrier molecularly bonds to the lens and fills the microscopic pores in the glass. The result is an ultra-slick coating that repels water, oil, fog, dust and debris - rain, snow, fingerprints and dirt will not stick.
