FOOTWELL
SPEAKERS
User Guide
Model: GDI-YMHF5P01

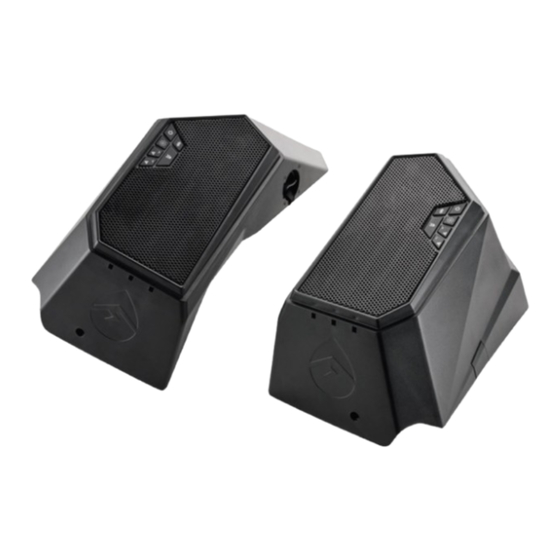

Yamaha JetBlaster Speaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JETBLASTER FOOTWELL GDI-YMHF5P01 and is the answer not in the manual?

Questions and answers

Related Manuals for Yamaha JETBLASTER FOOTWELL GDI-YMHF5P01

Summary of Contents for Yamaha JETBLASTER FOOTWELL GDI-YMHF5P01

  • Page 1 FOOTWELL SPEAKERS User Guide Model: GDI-YMHF5P01 Yamaha JetBlaster Speaker...

  • Page 2: Quick Start

    Overview Quick Start 1. Press and hold the Power Button on top of your speaker to power on one of the two JetBlaster Footwell Speakers. 2. Search your Bluetooth Connection on your Smart Device. Choose JetBlaster-ECOX to pair. Select and play your music. 3.

  • Page 3: Led Status Indicators

    Overview Control Buttons & Operations Power On/Off: Press and hold to power on / off. Bluetooth: When turned on, the JetBlaster Footwell Speakers will power on and search for your Bluetooth device. Refer to Audio Set Up for details. EcoCast: Press Button to cycle through Speaker Mode, EcoCast Transmitting Mode, and EcoCast Receiving Mode.
  • Page 4 Overview · Yellow – 75%-26% charge · Red – 25%-0% charge Bluetooth Status Indicator: The Blue Bluetooth Button backlight indicates the following Bluetooth statuses. · Flashing – Ready to pair · Solid – Bluetooth connection successful EcoCast Status Indicator: The EcoCast Button color indicates the following statuses.

  • Page 5: Audio Setup

    Audio Set Up Charge Your JetBlaster Footwell Speakers Prior to First Use For best performance, fully charge your speakers before you turn them on for the first time. Connect the USB-C port to the USB cable and a 5V power source. Approximately 12 hours of charging is required from a low to a full charge.
  • Page 6 Audio Set Up 3. When the JetBlaster-ECOX selection is made and the Bluetooth connection is completed, your JetBlaster Footwell speaker will announce: “Your phone is connected.” The LED Bluetooth Button backlight will shine solid Blue. 4. Once connected to Speaker A, you can select and play your desired audio.
  • Page 7 Audio Set Up Setting Up EcoCast on Your Two Speakers 1. Press the EcoCast Button on Speaker A to cycle through to and initiate EcoCast Transmitting Mode. The EcoCast backlight will flash Red, and the speaker will announce, “EcoCast transmitting.” 2.

  • Page 8: Installation

    IMPORTANT: Installing the JetBlaster Footwell Speaker Mounts In order to attach the JetBlaster Footwell Speakers, we recommend that you have a licensed Yamaha dealer install the JetBlaster Mounts and Speakers onto your personal watercraft. Note: See separate Yamaha installation instructions for proper mounting bracket and speaker installation.
  • Page 9 Installation IMPORTANT: Mounting Safety Release Button Security Bolt Although the Release Button holds each speaker in place, the speakers MUST be locked into the mount with the Security Bolt for moderate to extreme riding conditions. When riding in moderate to extreme conditions, ALWAYS check and tighten the supplied Security Bolt on each speaker.
  • Page 10 Charging: USB-C Input IMPORTANT: Maintaining Waterproofness If the cap on the side panel is not properly closed, the unit is NOT watertight. To ensure the unit is watertight & waterproof, ALWAYS CLOSE THE CAP PROPERLY. To do so, turn the cap all the way to the RIGHT (clockwise).

  • Page 11: Battery Level Indicator

    Charging: USB-C Input Battery Level Indicator The backlit Power Button indicates USB connection Charging Status. · Flashing Red – Charged 0%-25% · Flashing Yellow – Charged 26%-75% · Flashing Green – Charged 76%-99% · Solid Green – Full charge complete Recommendation: Use the USB cable and power adapter included in the box.
  • Page 12 EcoCast – Additional Speakers x100 When you have more than two JetBlaster Footwell Speakers, you can build a broadcast system by initiating EcoCast Transmitting Mode in one JetBlaster Footwell Speaker and broadcasting your music to one or more JetBlaster Footwell Speakers in EcoCast Receiving Mode.
  • Page 13 EcoCast – Additional Speakers 2. On Speaker A (the speaker with the EcoCast LED Indicator shining solid Red), press and hold for 6 seconds. The EcoCast backlight will flash Red. 3. Power on the additional JetBlaster Footwell Speaker(s) (Speaker C and Speaker D). Press to cycle through to and initiate EcoCast Receiving Mode.

  • Page 14: Specifications

    Specifications Unit Dimensions 9.56 in / 243 mm 8.27 in / 210 mm Unit Weight (Single Play Time Speaker and Mount) Up to 50 hours at 50% volume level; 9.3 lbs (4.2kg) up to 10 hours at 75% volume level System Output Power EcoCast Range 130W (65W x2) Peak...

  • Page 15: Important Legal Information

    Important Legal Information FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference, and 2.) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 16 Important Legal Information SAFETY ADVISORY & WARNING: Read and follow all instructions. Use only as intended. CAUTION: Do NOT open to repair. A qualified technician must carry out repair work. ATTENTION: Do NOT charge while the unit is wet. Towel dry the unit AND make sure all connections are dry BEFORE plugging in the charging connector.

  • Page 17: Care, Maintenance & Precautions

    Important Legal Information SAFETY: This product has a limited life span of use and should be replaced when it shows obvious signs of wear. Do not modify or remove any original component parts of the speaker. Doing so could cause damage to the unit, allowing water to ingress.

  • Page 18: Limited Manufacturer's Warranty

    WARNING: Please read and understand these WARRANTY INFORMATION: instructions completely before installation In the United States, see your Yamaha dealer for a to avoid possible injury, or damage to the copy of the Genuine Yamaha Accessories Limited accessory or vehicle.

  • Page 21: What's In The Box

    What’s in the Box (2x) JetBlaster (2x) JetBlaster Footwell Speakers Footwell Mounts (2x) Mounting Bolts (2x) M6 Locknuts M6-1.0 x 35mm Long (4x) Mounting Bolts (2x) Rubber Washers M6-1.0 x 50mm Long (2x) USB Cables (2x) Washers (2x) AC Power Adapters Hex Key V08.24...
