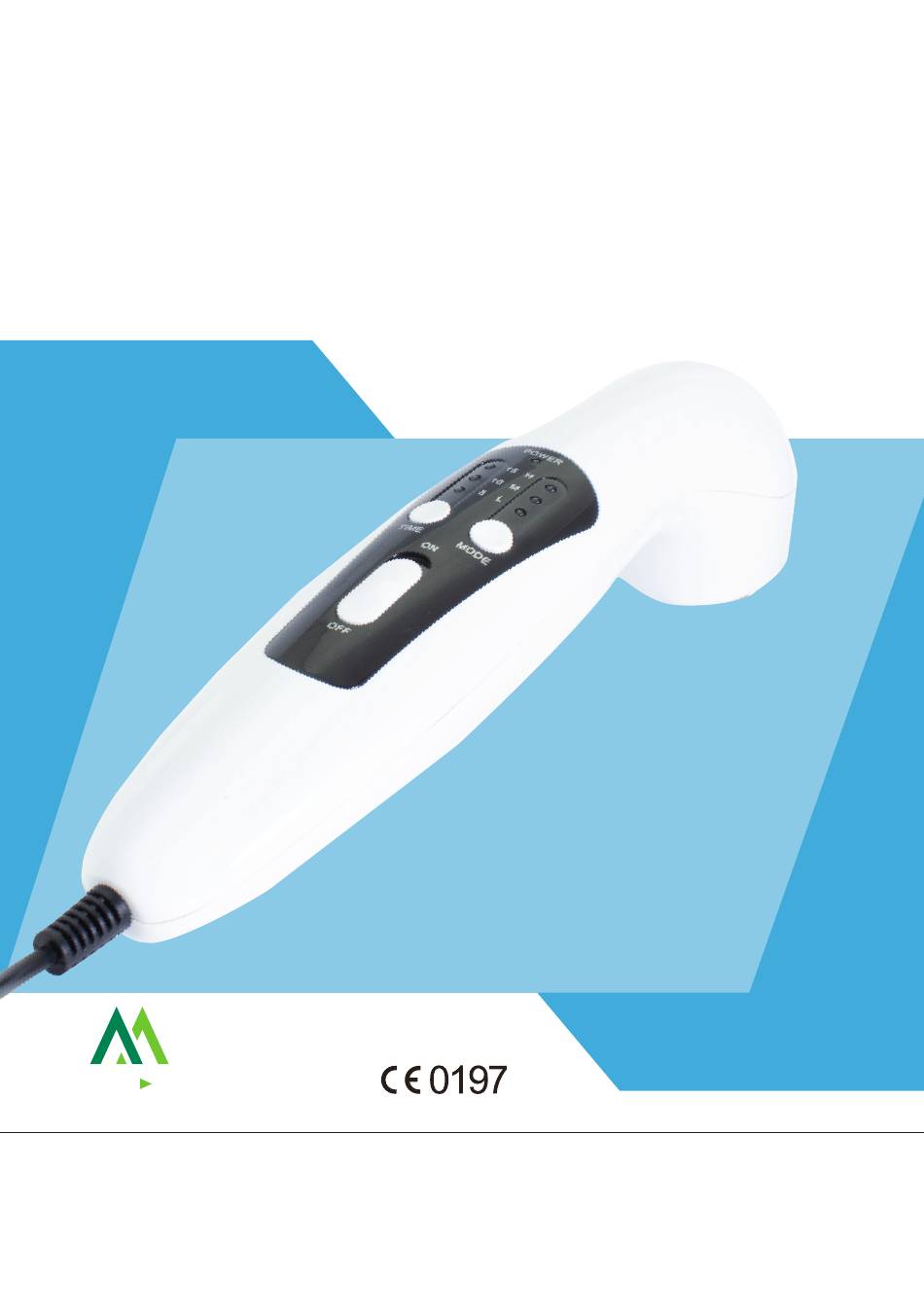

- Page 1 UT1032 Ultrasound Physical Therapy Device Medically Certified Ultrasound User Manual and Treatment Guidelines Please read this User Manual before using your Ultrasound...
-
Page 2: Table Of Contents
Technology Co., Ltd. reserves the right to improve and amend it at any time without prior notice. Amendments will however be published in a new edition of this manual. All Rights Reserved. UT1032 Rev. V2.S © 202305 Telephone: 0161 429 7330... -
Page 3: Forward
This manual contains general information on the operation, precautionary practices, and maintenance information of the UT1032. In order to maximise the use, efficiency, and life of the device, please read the manual thoroughly and become familiar with it before operating the device. In particular, pay attention to: 1. -
Page 4: Contraindications
CONTRAINDICATIONS 1. Do not use over or near bone growth centers until bone growth is complete. 2. Do not use over a healing fracture. 3. Do not use over the eyes. 4. Do not use on patients with implanted neurostimulation systems because tissue damage can occur at the location of the implanted electrodes resulting in severe injury or death. -
Page 5: Side Effects
LIMITED WARRANTY We warranty each new UT1032 for one year ,wires and adapter for half year from defects in materials and workmanship from the original date of purchase. This warranty applies only to the original purchaser. The original invoice or receipt must accompany all returns. -
Page 6: Cautions
CAUTIONS 1. Always use this device under the directions of a physician. 2. Patients with the following diseases, symptoms or conditions should not use the device: • During pregnancy or menstrual cycle. • Acute disease, heart disease, tubercle disease, facial neuralgia (sharp facial pain), pernicious tumor, hemophilia, high fever, abnormal blood pressure, or under any unhealthy conditions. -
Page 7: Package Contents

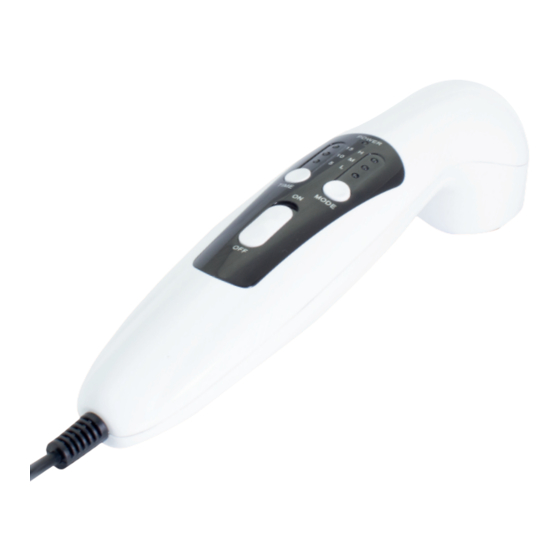

PACKAGE CONTENTS Part Quantity Portable Ultrasound Device UT1032 Operating instructions Adapter AC 100-240V 50/60Hz, 0.8A Ultrasound transmission gel PARTS OF THE DEVICE (1) TIME INDICATOR LIGHT (2) TIME BUTTON (3) POWER INDICATOR LIGHT (4) INTENSITY INDICATOR LIGHT (5) MODE BUTTON... -
Page 8: Special Feature
3. Join the male connector of the AC/DC adapter to the female connector of the ultrasound unit. Be sure you have a secure fit. Then plug the AC/DC adapter into a wall outlet to power the unit. The UT1032 is now ready for treatment. -
Page 9: Instructions For Use
• Be sure to follow the specific assembly instructions stated above. INSTRUCTIONS FOR USE Please read this instruction manual carefully before using the UT1032 Ultrasound Physical Therapy Device. 1. Turning on the device and head warming feature: Turn the device on by sliding the power switch upwards (towards "ON"). - Page 10 INSTRUCTIONS FOR USE 2. Apply transmission gel: Wash the area to be treated so that it is free of oil and dirt. Apply a generous layer of ultrasound transmission gel on the treatment area. The gel acts as a coupling substance and ensures effectiveness. The area treated should be two times the diameter of the sound head .
-
Page 11: Load Detection System Caution
2. The device has a temperature protection function. When the temperature of the treating head exceeds 107°F (42°C}, the treatment will automatically stop and the time indicator light will flash two times. The device will not continue the treatment program until the temperature is below 104°F (40°C). www.med-fit.store... -
Page 12: Techniques Of Applications
TECHNIQUES OF APPLICATIONS Treatment area The skin should be clean and dry before applying the coupling gel. The treatment area should be no more than twice the size of ultrasound transducer head. Transmission media (couplant) The higher the water conductive medium, the less the ultrasound energy is absorbed by the medium and the more energy is available to produce thermal effect. -
Page 13: Ultrasound Treatment Settings
If pain occurs, please stop use. Q: Are all skin types suitable for use with the Ultrasound Device? A: Yes. Ultrasonic therapy is suitable for all people and all skin types except for peoples and body parts of contraindications. www.med-fit.store... -
Page 14: Helpful Information On Using Your Device
HELPFUL INFORMATION ON USING YOUR DEVICE How Does Ultrasound Therapy Work? Ultrasound therapy is another form of treatment to help ease the pain and stiffness of sore, injured and/or overworked muscles in addition to speed up healing. Ultrasound Therapy Units produce soundwaves that emanate treatment through ultrasonic vibrations to the troublesome area. -
Page 15: Possible Treatment Areas
POSSIBLE TREATMENT AREAS POWER POWER TIME MODE TIME MODE Shoulder Back POWER TIME MODE Knee Elbow POWER POWER TIME MODE TIME MODE Ankle Foot www.med-fit.store... -
Page 16: Maintenance
MAINTENANCE Switch off the device and disconnect it from the power supply. The device can be cleaned with a damp cloth. Use lukewarm water and a non-abrasive liquid household cleaner (no abrasive, no alcohol content solution}. If a more sterile cleaning is needed, use a cloth moistened with an antimicrobial cleaner. CAUTION Do not submerse the device in liquids. -
Page 17: Storage Conditions
Did not press the ON/OFF Press the ON/OFF button button. again. Output intensity button setting Please make sure and set it POWER LED is performing is incorrect. again. normally, but no output function occurs. www.med-fit.store... -
Page 18: Unit Specifications
UNIT SPECIFICATIONS Ultrasound Modulation Frequency 1MHz±10% Max output power 6.4W±20% (Modulation duty cycle all 00%) Output power L: 0.32W±20% M: 3.20W±20% H: 6.40W±20% Pulse repetition rate 100Hz±10% Modulation duty cycle L (5%), M (50%), H (100%) Effective radiating area 4.0cm2±20% Waveform Pulsed, Continuous RsN (Max) -
Page 19: Glossary Of Symbols
Consult the instructions for use for important cautionary information such as warnings and precautions Batch code DISPOSAL The device contains materials that can be recycled and/or are noxious to the environment. When you dispose of the unit, find out about local regulations concerning waste management. www.med-fit.store... -
Page 20: Electromagnetic Compatibility (Emc)
Declaration - electromagnetic emission The UT1032 device is intended for use in the electromagnetic environment specified below. The cus- tomer or the user of the UT1032 device should assure that it is used in such an environment. Emission test Compliance... - Page 21 Guidance and manufacturer’s declaration – Electromagnetic immunity The UT1032 device is intended for use in the electromagnetic environment specified below. The cus- tomer or the user of the UT1032 device should assure that it is used in such an environment. Immunity test...
- Page 22 Guidance and manufacturer’s declaration – Electromagnetic interference immunity The UT1032 device is intended for use in. the electromagnetic environment specified below. The cus- tomer or the user of the UT1032 should assure that it is used in such an environment. Immunity test...
- Page 23 Table 4: Recommended Separation Distance Between Portable and Mobile RF Communications Equipment and the UT1032 Device The UT1032 device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the UT1032 device can help prevent...
- Page 24 This manual is valid for the Med-Fit Pro Ultrasound (UT1032). This user manual is published by Med-Fit UK Ltd. Med-Fit UK Ltd reserves the right to improve and amend it at any time without prior notice. Amendments will however be...
