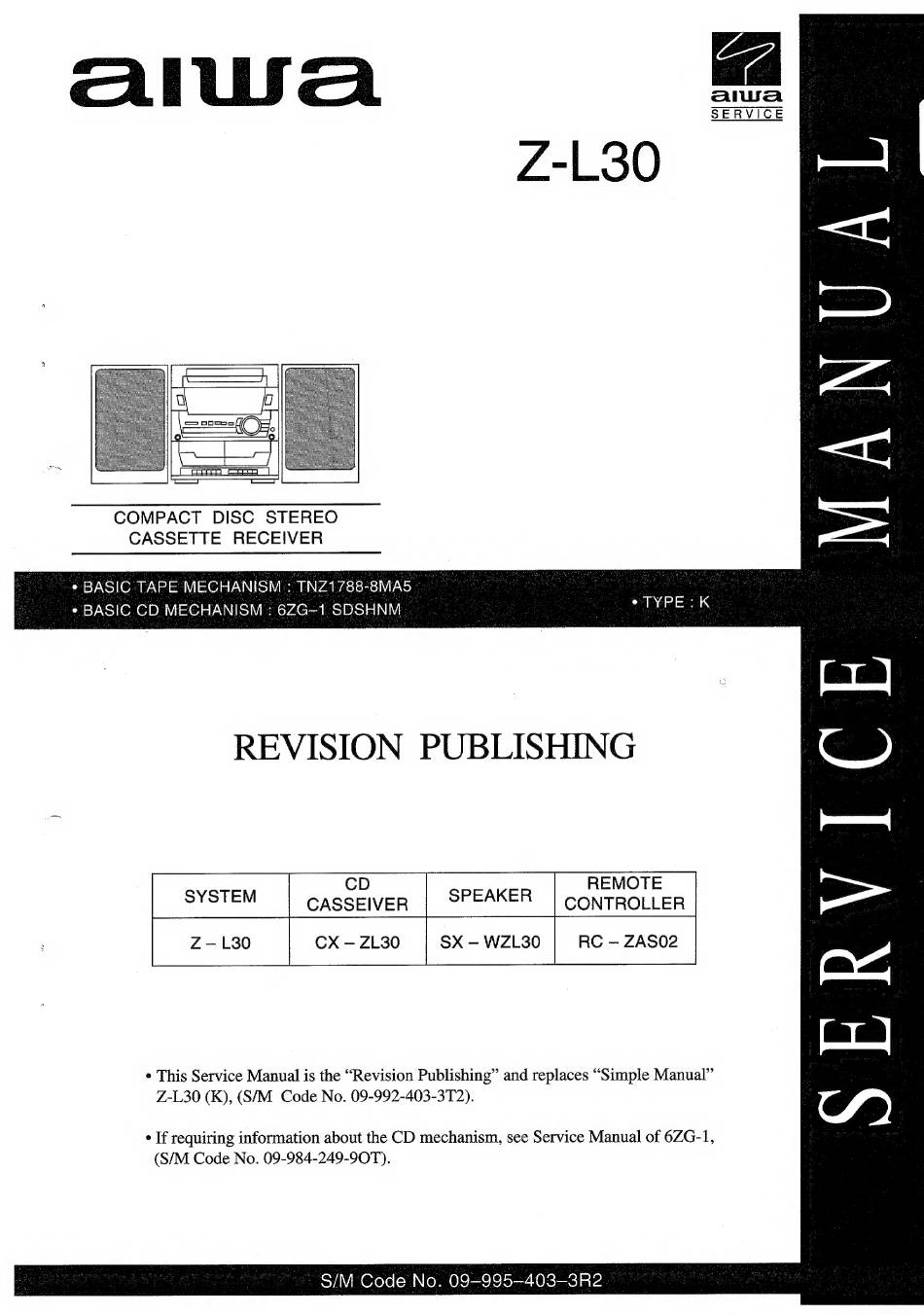

Aiwa Z-L30 Manual

ana
Z-L30
COMPACT DISC STEREO
CASSETTE RECEIVER
* BASIC TAPE MECHANISM : TNZ1788-8MA5
* BASIC CD MECHANISM : 6ZG—1 SDSHNM * TYPE: K
REVISION PUBLISHING
CD REMOTE
SYSTEM CASSEIVER | SPEAKER | coNTROLLER
Z—L30 Cx-—zL30 | SX—WwzL30 | RC-ZASO2
¢ This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
Z-L30 (K), (S/M_ Code No. 09-992-403-3T2).
—_
=<
=)
=,
<r
=
ae
ae
—
—_—
as
aa
oe
° If requiring information about the CD mechanism, see Service Manual of 6ZG-1,
(S/M Code No. 09-984-249-90T).
S/M Code No. 09-995-403-3R2
