TJAmerican TJ02-25V2016WH Use And Care Manual

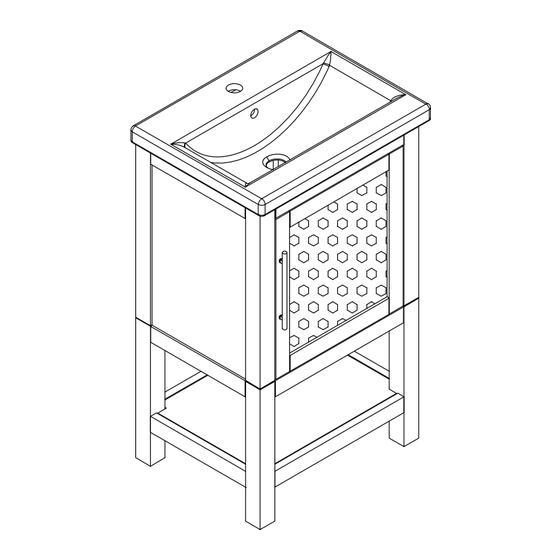

20" vanity in white finish with ceramictop
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL #TJ02-25V2016WH
USE AND CARE GUIDE
20" VANITY IN WHITE FINISH WITH CERAMIC
TOP
Questions, problems, missing parts?
Before returning, contact us on:
info@tjamerican.com
TJAMERICAN.COM
THANK YOU
We appreciate the trust and confidence you have placed in TJAmerican LLC through the purchase
of this Vanity.
Visit us online to see our full line of products available for your home improvement needs.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TJ02-25V2016WH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TJAmerican TJ02-25V2016WH

Summary of Contents for TJAmerican TJ02-25V2016WH

  • Page 1 Before returning, contact us on: info@tjamerican.com TJAMERICAN.COM THANK YOU We appreciate the trust and confidence you have placed in TJAmerican LLC through the purchase of this Vanity. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information......................2 Care and Maintenance........................3 Specification............................4 Replacement Parts List........................5 Package Contents..........................6 Pre-assembly ..........................6 Assembly............................7 Warranty..........................12 SAFETY INFORMATION DANGER: Please read and understand this entire manual before attempting to assemble, operate, or install the product. Keep small parts away from children during assembly. Failure to follow warning and cautions could result in serious injury.

  • Page 3: Care And Maintenance

    Follow up by cleaning the stone with a mild non-abrasive soap and water. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton during shipment. If parts are missing, contact TJAmerican LLC to obtain any missing parts.

  • Page 4: Specification

    SPECIFICATION 10,1" 10,1" " thread 7,9" 5,9" 1" 1" 1,3" 17,7" 1,3" HANDLE 20,3" TOP VIEW 20,3" 15,7" 15,3" 0,7" 15,6"(open) 19,1" 15" FRONT VIEW SIDE VIEW 5,6" 5,6" 8" 3,1" 3,1" 14,1" (open) BACK VIEW...

  • Page 5: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, please contact customer service at info@tjamerican.com. PART DESCRIPTION QUANTITY PART CODE Shelf 0225V2016WH-SH 0225V2016WH-LG Door 0225V2016WH-DO U-Floor Plumbing Cutout Lid 0225V2016WH-UL Handle With Bolt HD-02300360 European Hinge EH-09011300 Leveler LV-10422020 TP-00100000 Touch Up Pen...

  • Page 6: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART CODE Vanity With Top 0225V2016WH-VN Shelf 0225V2016WH-SH 0225V2016WH-LG 0225V2016WH-UL U-Floor Plumbing Cutout Lid Touch Up Pen TP-00100000 SC-95060301 Screw Bolt BO-10450010 Spring Washer SW-10400010 Flat Washer FW-10419011 Allen Key AK-00400010 PRE-ASSEMBLY PLANNING ASSEMBLY Estimated Installation Time: 25-35 minutes. Number of people required: Two adults and several steps are more easily handled with two adults.

  • Page 7: Assembly

    ASSEMBLY 1. Taking-out the U-floor plumbing cutout lid (E). 2. Placing the vanity top on protect sheet. 3. Assembling the first 2 legs. Assembly two legs (C) at each corner of the vanity top (A) and secure in place using bolts (FF) with spring washers (GG) and flat washers (HH).
  • Page 8 ASSEMBLY 4. Assembling the shelf. Assembly the shelf (B) using bolts (FF) with spring washers (GG) and flat washers (HH). 5. Assembling the last 2 legs. Assembly the last two legs (C) and secure in place using bolts (FF) with spring washers (GG) and flat washers (HH).
  • Page 9 ASSEMBLY 6. Installing vanity to the wall. Note: Clean area where the vanity will be permanently located prior to beginning installation, ensuring the vanity will not interfere with any water supply and drain lines once mounted. With two people, carefully place the vanity against the wall in its final location. Place a level on the unit in both directions, across the front and on both sides to properly adjust the levelers on the unit.
  • Page 10 ASSEMBLY 7. Assembling the U-floor plumbing cutout lids The back of the vanity is open for accessibility for drain and water line hookup. If your plumbing comes out of the back wall, insert the U-floor plumbing cutout lid (E). This will close the hole and increase your storage space.
  • Page 11 ASSEMBLY 8.2 Up or down. Loosen screws (4pcs/ hinge) on both hinges. Adjust door up or down. Retighten screws. 8.3 In or out. Loosen screws (1pc/ hinge) on both hinges. Adjust the doors in or out. Retighten screws. Note: Assembly is now complete. Install desired faucet and drain assemblies (neither included) per the manufacturers' instructions to complete the installation.

  • Page 12: Warranty

    TJAmerican LLC products are manufactured to superior quality standards and workmanship, and are backed by our limited lifetime warranty. TJAmerican LLC products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace FREE OF CHARGE any product or part that proves defective.
