Summary of Contents for attika RAIS R600RD MAX

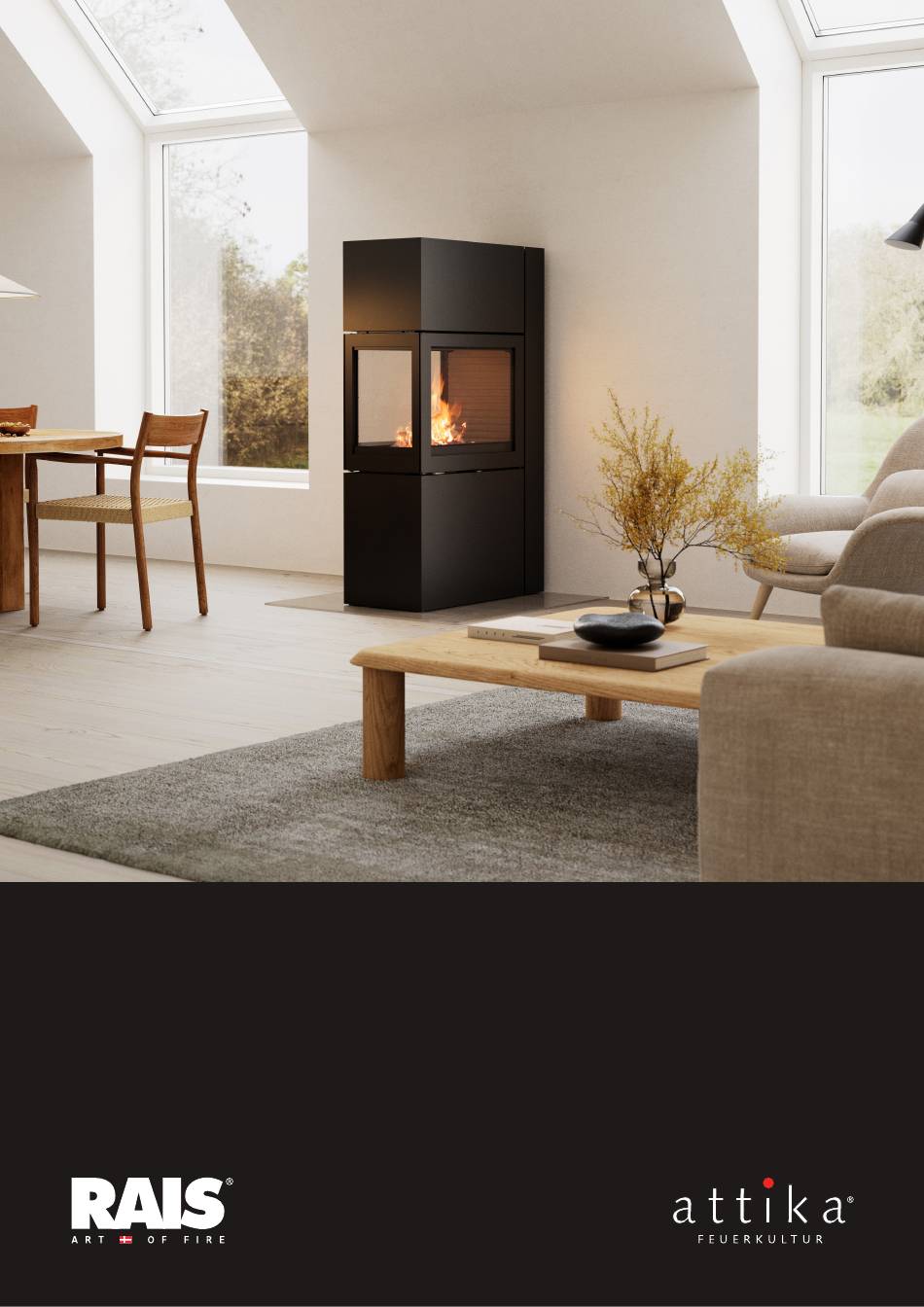

  • Page 1 R600RD MAX 600RD INSTALLATION GUIDE (EU - ENGLISH VERSION)
  • Page 2: Production Number

    The production number is located on the back of the oven and on the first page of the user manual. THIS MANUAL APPLIES TO THE FOLLOWING MODEL: • R600RD MAX (RAIS) 600RD (Attika) R600RD MAX / 600RD 2 - EN...
  • Page 3: Table Of Contents

    INDHOLD PRODUCTION NUMBER INSTALLATION GUIDE Malfunctions ........... . . TECHNICAL DATA Specifications .
  • Page 4: Installation Guide

    INSTALLATION GUIDE INSTALLATION GUIDE VENTILATING SYSTEMS Thank you for choosing your new RAIS or ATTIKA prod- The stove needs permanent and sufficient air to opera- uct! This installation instructions manual will ensure te safely and efficiently. A permanent air supply can be that your stove is installed correctly and that it will pro- installed in the room for the stove’s combustion air - th-...
  • Page 5: Malfunctions

    ATTENTION! Before the stove may be put to use, the set-up must be reported to your local chimney sweeper. ATTENTION! RAIS/ATTIKA recommends having the insert installed by an authorised technician. Please ask your dealer for further information. MALFUNCTIONS STOVE IS BURNING TOO WEAK If you are experiencing disturbances, some of the most •...
  • Page 6: Technical Data

    The stove was tested and approved RATING PLATE DTI - Danish Technological Institute All RAIS/attika stoves have a rating plate indicating the Teknologiparken Kongsvang Allé 29 stove’s distance to combustibles, efficiency etc. The name- 8000 Aarhus C, Denmark plate can also be found by scanning the QR code.
  • Page 7 TECHNICAL DATA Set-up distances R600RD MAX / 600RD Minimum distance from the rear edge of the door to combustible ma- terial 1000 Minimum distances from the sides to combustible material Minimum distances from the top of the door to combustible material at the ceiling Minimum distances from the front to combustible material (Distance to 1000...
  • Page 8: Installation Distance

    INSTALLATION DISTANCE MINIMUM DISTANCE FOR CEILINGS AND FLOORS To clarify whether the stove installation wall is flamma- ble or otherwise, contact your building architect or lo- Distance to the ceiling from the top of the door mini- cal building authorities. Please make sure that objects mum 835 mm.
  • Page 9: Dimensional Sketches

    DIMENSIONAL SKETCHES - R600RD MAX DIMENSIONAL SKETCH: R600RD MAX The model is available as a variant with a concealed top plate, disregarding the top plate dimensions below. The total height at the top is 1486 mm. 167 * 1495 1486 1347,5 1265 1217...
  • Page 10: Installation

    INSTALLATION RECYCLING OF PACKAGING The stove is delivered in recyclable packaging. This packaging must be disposed of in accordance with na- tional regulations relating to the disposal of waste. Styrofoam Plastic straps Cardboard Plastic Sheet metal Pallet wood DISPOSAL AFTER END OF LIFE When your oven can no longer be used in the distant future, it is important that it is disposed of correctly.
  • Page 11: Packaging At Delivery

    INSTALLATION PACKAGING AT DELIVERY Upon delivery, the stove is secured to a transport pallet using four transport safety fittings. The safety fittings are attached with screws which must be unscrewed. The safety fittings can then be removed. HEIGHT ADJUSTMENT There are four adjustment screws underneath the ap- pliance.
  • Page 12: Installation Of Smoke Outlet In Top Outlet

    INSTALLATION FITTING THE SMOKE OUTLET IN THE TOP OUTLET The stove is prepared for top outlet on delivery. Mount the flue outlet with the nuts and bolts supplied. CHANGING THE CHIMNEY CONNECTION The stove is delivered ready for top outlet, but can be changed to rear outlet as follows.
  • Page 13: Removing The Combustion Chamber Lining

    INSTALLATION REMOVING THE COMBUSTION CHAMBER LINING To reach the flue, carefully remove the vermiculite smo- Lift one side of the upper smoke deflector plate and tilt ke deflector plates. To remove the first smoke deflector the other down. Then, carefully insert in reverse order. plate, lift the rear end and tilt the front end down.
  • Page 14: External Air Connection - Airsystem

    All RAIS/ If the air supply is 5-10 metres from the stove, use a attika stoves have the option to supply external air. Ø120 mm flex hose instead. This external air supply is what we call AirSystem. The...
  • Page 15: Air Connection At The Bottom

    EXTERNAL AIR CONNECTION - AIRSYSTEM ATTENTION! In countries where legislation does not allow closing the air supply, the damper plate in the air valve must be removed. AIR CONNECTION AT THE BOTTOM If you purchase a stove with bottom air connection, in- stall the air valve (3) and gasket (2) on the floor above the hole leading to the outside.
  • Page 16 Article number: 23-6512EU RAIS A/S ATTIKA FEUER AG Industrivej 20 Brunnmatt 16 DK-9900 Frederikshavn CH-6330 Cham Denmark Switzerland www.rais.com www.attika.ch...
