Hotpoint RB790SHSA Datasheet

7-1/2
7
7-1/2
3-1/2
REAR
WALL
2-1/4

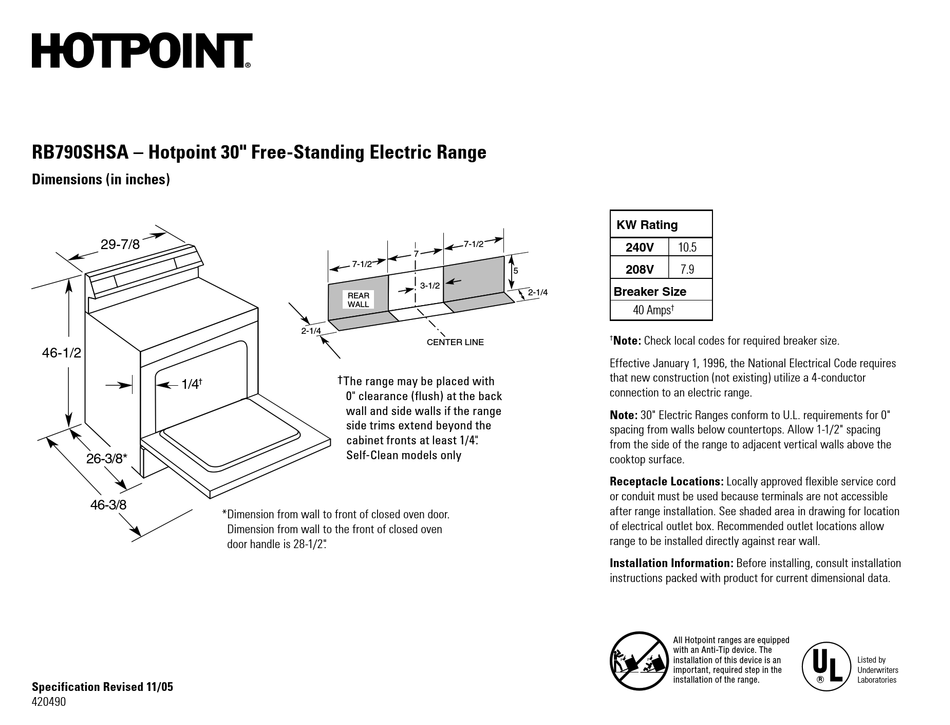

RB790SHSA – Hotpoint 30" Free-Standing Electric Range
CENTER LINE
Dimensions (in inches)
29-7/8
46-1/2
1/4
†
26-3/8*
46-3/8
Specification Revised 11/05
420490
®
5
2-1/4
7-1/2
REAR
WALL
2-1/4
† The range may be placed with
0" clearance (flush) at the back
wall and side walls if the range
side trims extend beyond the
29-7/8
cabinet fronts at least 1/4" .
Self-Clean models only
*Dimension from wall to front of closed oven door.
Dimension from wall to the front of closed oven
45-1/8
door handle is 28-1/2" .
25-7/16
46-1/8
7-1/2
7
5
3-1/2
2-1/4
CENTER LINE
1/4
†
KW Rating
240V 10.5
208V 7.9
Breaker Size
40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Note: 30" Electric Ranges conform to U.L. requirements for 0"
spacing from walls below countertops. Allow 1-1/2" spacing
from the side of the range to adjacent vertical walls above the
cooktop surface.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against rear wall.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
All Hotpoint ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
installation of the range.
Listed by
Underwriters
Laboratories
R
