Hotpoint RB790 Specifications

7-1/2
7
7-1/2
3-1/2
REAR
WALL
2-1/4

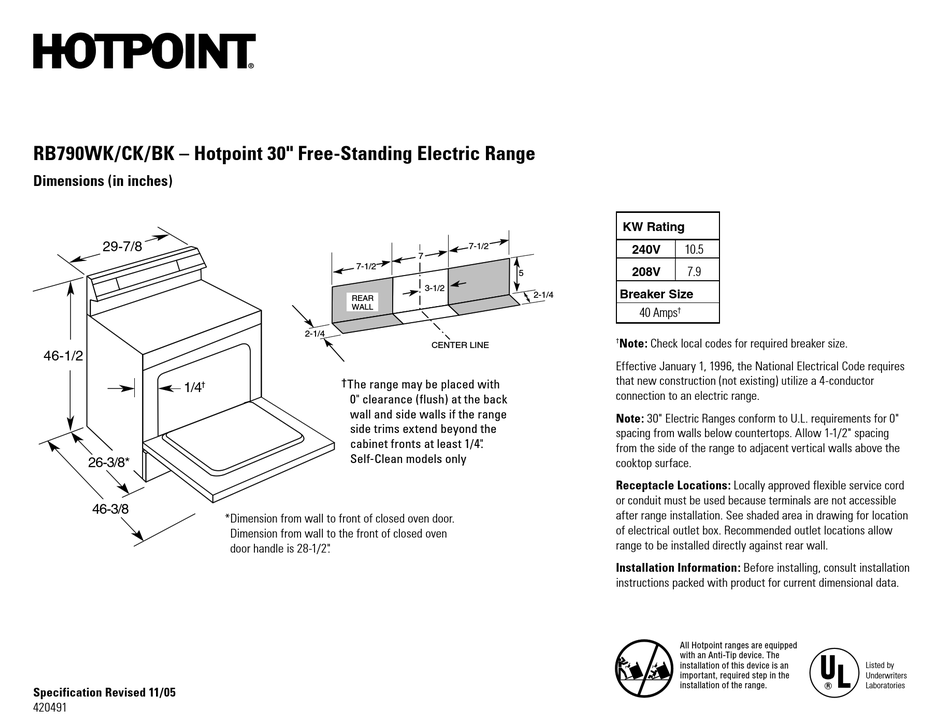

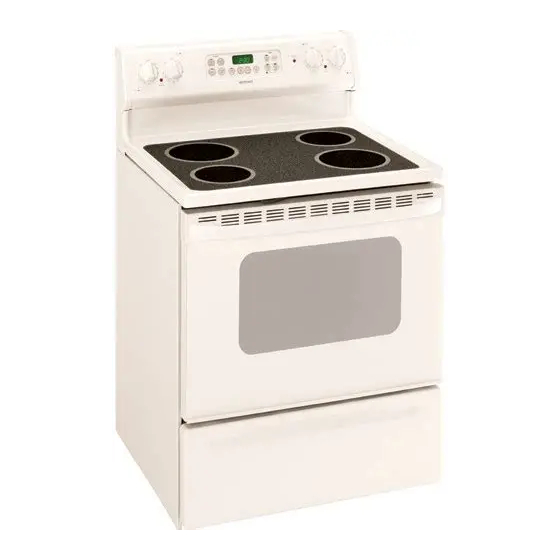

RB790WK/CK/BK – Hotpoint 30" Free-Standing Electric Range
CENTER LINE

Dimensions (in inches)

29-7/8
46-1/2
1/4
†
26-3/8*
46-3/8
Specification Revised 11/05
420491
®
5
2-1/4
7
7-1/2
3-1/2
REAR
WALL
2-1/4
29-7/8
45-1/8
25-7/16
46-1/8
7-1/2
5
2-1/4
CENTER LINE
1/4
†

KW Rating

240V 10.5
208V 7.9

Breaker Size

40 Amps
†
Note: Check local codes for required breaker size.
†
Effective January 1, 1996, the National Electrical Code requires
that new construction (not existing) utilize a 4-conductor
connection to an electric range.
Note: 30" Electric Ranges conform to U.L. requirements for 0"
spacing from walls below countertops. Allow 1-1/2" spacing
from the side of the range to adjacent vertical walls above the
cooktop surface.
Receptacle Locations: Locally approved flexible service cord
or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location
of electrical outlet box. Recommended outlet locations allow
range to be installed directly against rear wall.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Listed by
Underwriters
Laboratories
