S H O R E S T A T I O N

L A K E F R O N T S Y S T E M S

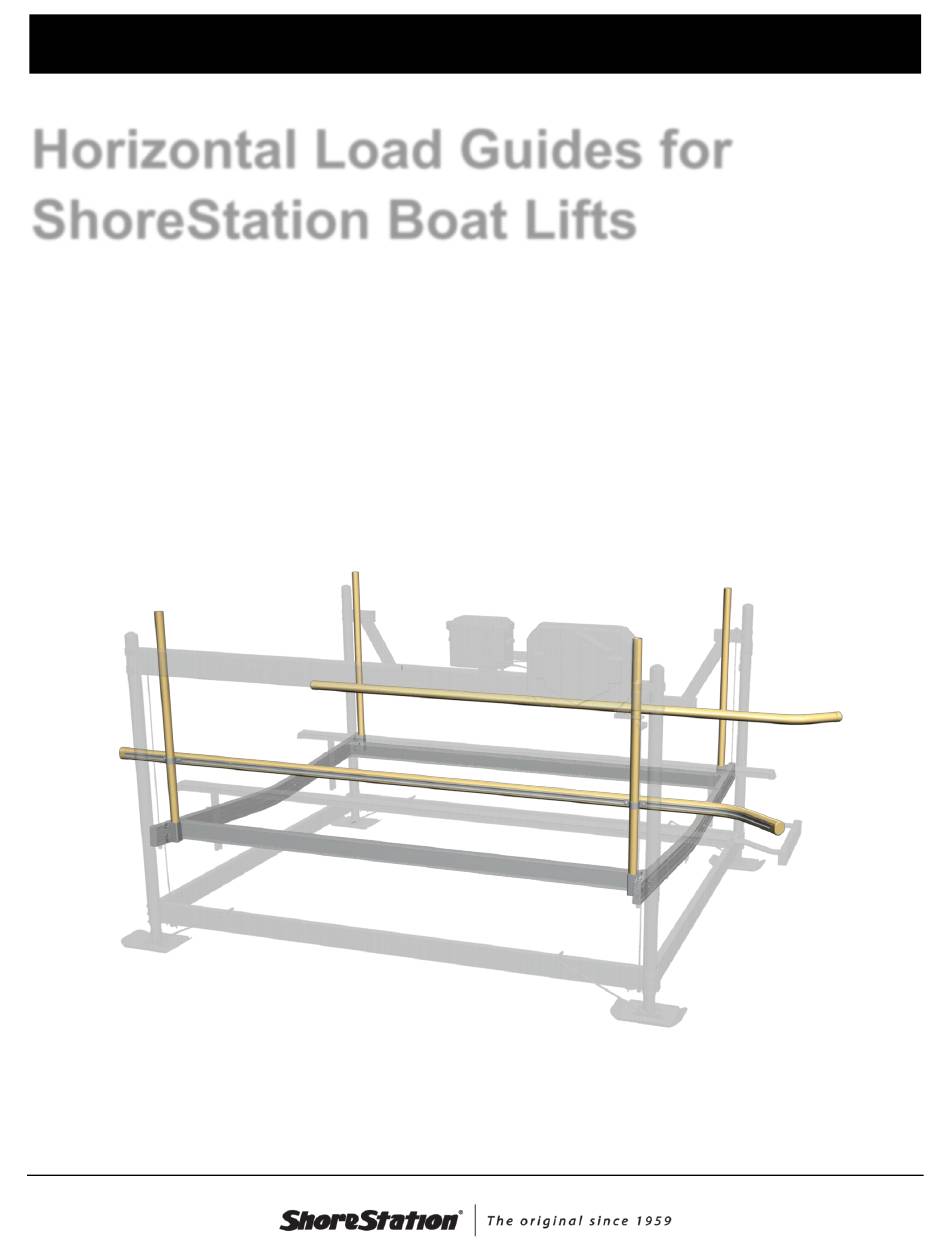

Horizontal Load Guides for

ShoreStation Boat Lifts

HA0185 - GlideRail adjustable centering guide - fits 1,500-4,000MS/EDS lifts

HA0186 - GlideRail adjustable centering guide - fits 4,000HS-7,000 lifts

HA0187 - GlideRail adjustable centering guide - fits 8,000-15,000 lifts

HA0189 - (optional) Aluminum Boarding Step attaches to GlideRail centering guides

Introduction

The ShoreStation® GlideRail Centering guide is designed to guide your boat into the lift while protecting the boat from the

lift structure. The GlideRail provides protection along the entire length of the lift and features a flared entrance end.

Page 1

Document Number: 0004519 Rev B

Need help?

Do you have a question about the HA0185 and is the answer not in the manual?

Page 1 Introduction The ShoreStation® GlideRail Centering guide is designed to guide your boat into the lift while protecting the boat from the lift structure. The GlideRail provides protection along the entire length of the lift and features a flared entrance end.
Page 2  Never use the GlideRail system with boats that have large or raised graphics that will contact the system. If your boat has graphics or decals, make sure the horizontal rail is adjusted so it will not contact them. ShoreStation is not responsible for damage to graphics or decals that contact the GlideRail system.
Page 3 3/4” Wrench and Socket Cordless Drill Adding Load Guides to Boat Lift 3/8” Hex Drive For HA0185 and HA0186, use the T-slots and correct hardware to bolt on one vertical load guide in each corner of the platform. For HA0187, attach one HA0106...
Page 4 S H O R E S T A T I O N L A K E F R O N T S Y S T E M S Slide the bolts in the T-slot through the access hole of the horizontal load guides and attach the clamps, but leave them loose.
