Introduction

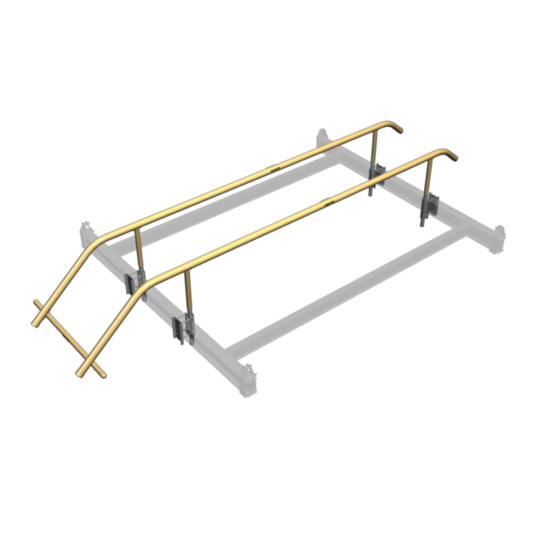

The ShoreStation® ToonRail system is designed to help guide your pontoon into the boat lift, stop it with the motor stop,
and lift the boat under the deck. It's adjustable to fit almost any pontoon or tritoon. The aluminum makes it strong and rust
free while the poly covering is boat friendly.
HA0202 fits Aluminum "V" Cradles on 3,000 – 7,000 lb. lifts
HA0204 fits Steel "V" Cradles on 3,000 – 6,000 lb. lifts
HA0211 fits Boat House & Pile Mount lifts with Flat Tube or 8 inch I-Beam Cradles
Midwest Industries, Inc.
Ida Grove, IA 51445
800-859-3028
www.shorestation.com
0004555
Page 1 of 5
8/17/2015
Advertisement
Table of Contents
Related Manuals for ShoreStation ToonRail HA0202
Summary of Contents for ShoreStation ToonRail HA0202
- Page 1 Introduction The ShoreStation® ToonRail system is designed to help guide your pontoon into the boat lift, stop it with the motor stop, and lift the boat under the deck. It’s adjustable to fit almost any pontoon or tritoon. The aluminum makes it strong and rust free while the poly covering is boat friendly.
- Page 2 DO NOT INSTALL OR USE THIS PRODUCT WITHOUT FIRST STUDYING MANUAL AND UNDERSTANDING THE INFORMATION CONTAINED IN IT. Never modify the ToonRail components without consent from the manufacturer (ShoreStation). The ToonRail system should only be used on ShoreStation® Boat Lifts.
- Page 3 Step #3A – Insert Support Tubes Insert a 1/2-13 x 3 1/2 hex head bolt through the bracket and support tube as shown and tighten the washers and locknuts. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004555 Page 3 of 5 8/17/2015...
- Page 4 Insert two more carriage bolts and slide them toward the other support tube. Again, start the washer and locknut but do not tighten. Repeat with the other ToonRail. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004555 Page 4 of 5 8/17/2015...
- Page 5 After everything is in a sufficient position, tighten all the hardware and load your boat. Make adjustments as needed. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004555 Page 5 of 5 8/17/2015...
